Press.comp Flow Cont. valve 30l/m (1-4l/m) VR 06-EN-1.25-00

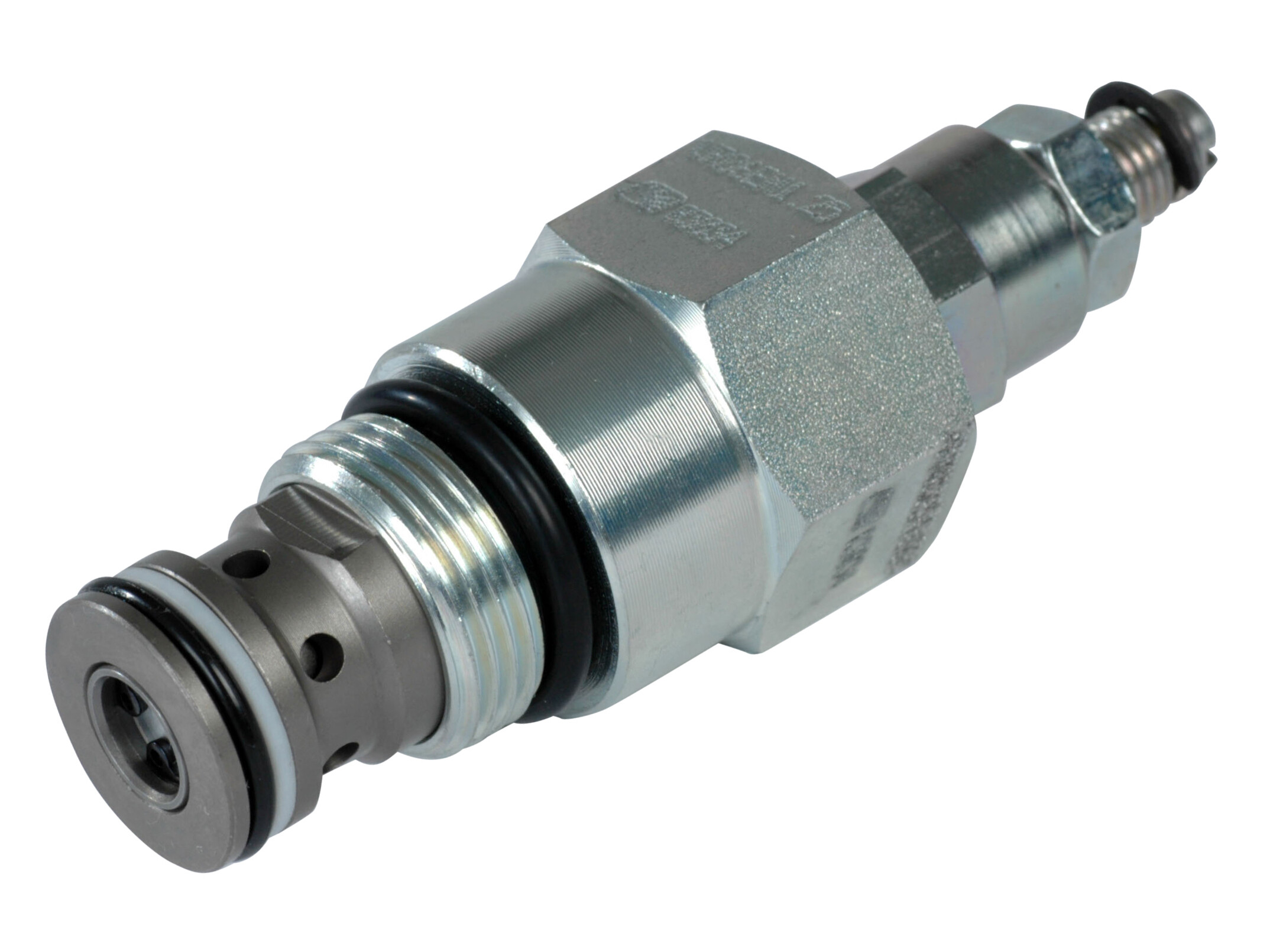

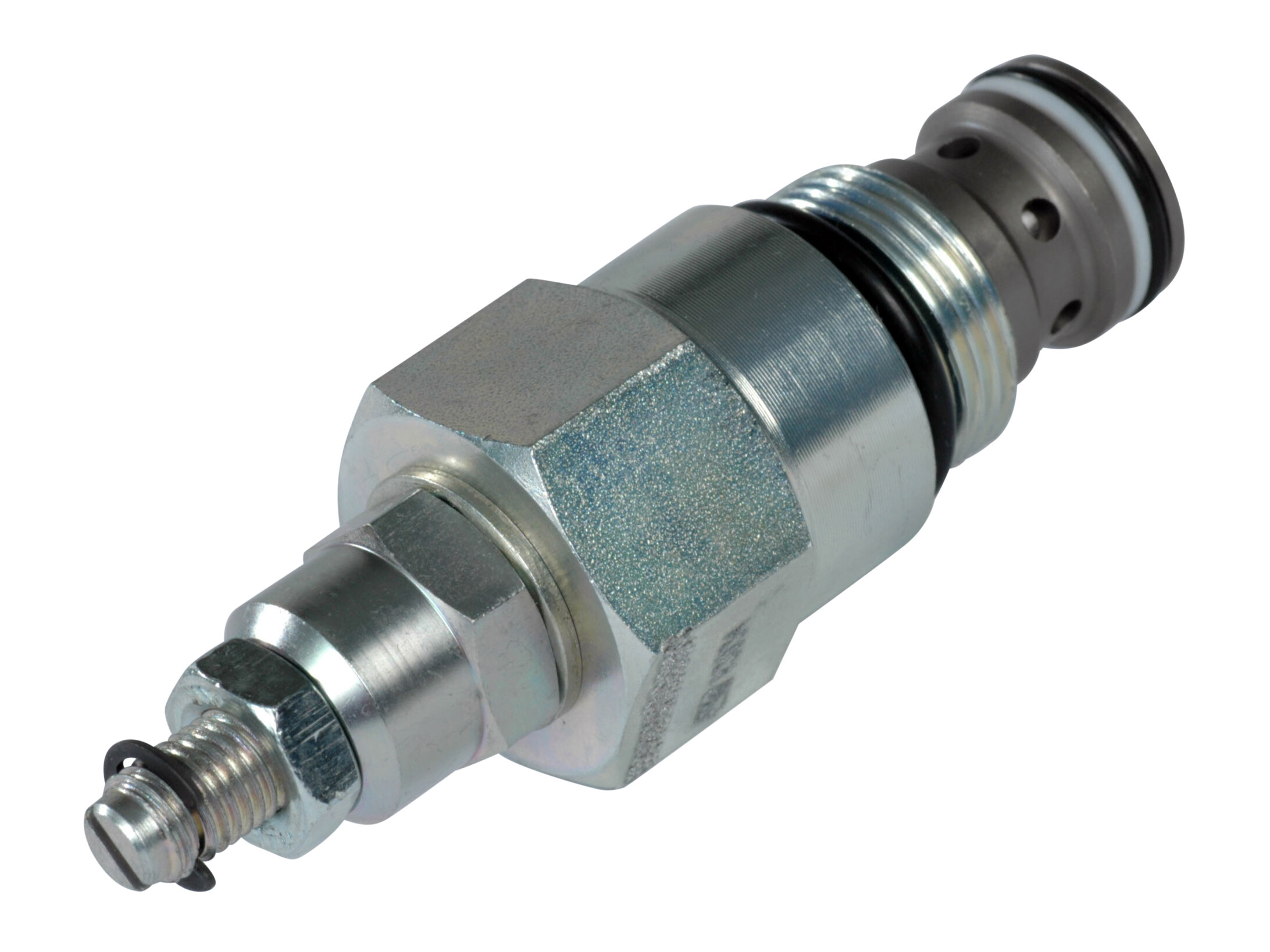

This valve is a limited adjustment, pressure compensated, restrictive-type ­flow control valve. To increase the ­flow, turn the adjustment screw clockwise. To decrease the ­flow, turn the adjustment screw counter-clockwise.

Partnumber:
820171719

Package size:
1 st

Min. order quantity is:
1 st
Brand Name
Danfoss

Cavity
NCS06/2

Contamination level max.
20/18/14 - ISO 4406

Flow max. regulated
4 lpm

Flow min. regulated
1 lpm

Flow rate nominal LMin
30 lpm

Model code
VR06-EN-1.25-00

Oil viscocity recommended
12 - 54 cSt

Pressure compensated
Yes

Pressure max.
315 bar

Temperature max.
+100 °C

Temperature min.
-40 °C

Torque tightening
45 - 50 Nm
Package size
1 st

Barcode
374722

Gross weight
0,20 Kg

Net weight
0,20 Kg

Country of origin
ITA

Intrastat code
84812010

This valve is a limited adjustment, pressure compensated, restrictive-type ­flow control valve. To increase the ­flow, turn the adjustment screw clockwise. To decrease the ­flow, turn the adjustment screw counter-clockwise.
