Sequence valve 2-way, 25 LPM, 15-40 bar VDP 06/NC-E-1-00-XXX

VDP 06/NC, Sequence Valve, Normally Closed, Spool Type, Hydraulic Pilot, Atmospheric Vent

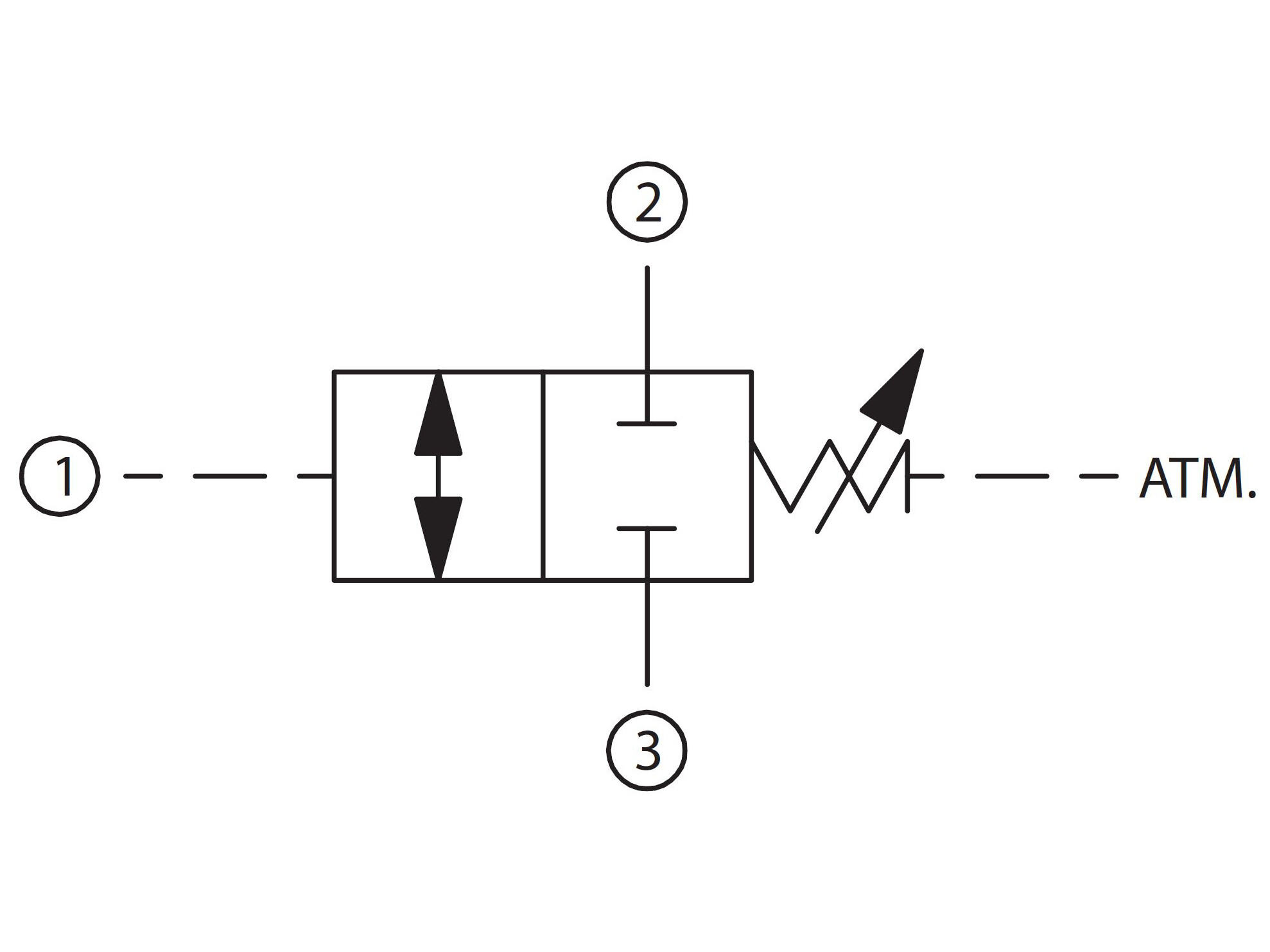

This is a hydraulically pilot operated spool valve, normally closed from port 2 to 3 with an atmospheric vent. When the pilot pressure on port 1 reaches the setting, the valve will begin to open port 2 to 3. This is deal for sensing pressure in a remote area of a circuit to sequence another operation.

Artikelnummer:
800279429

Förpackningsstorlek:
1 st

Minsta beställningskvantitet:
1 st
Brand Name
Danfoss

Cavity
NCS06/3

Contamination level max.
20/18/14 - ISO 4406

Flow rate nominal LMin
25 lpm

Key size
27 mm

Model code
VDP06/NC-E-1-00-XXX

Oil viscocity recommended
12 - 54 cSt

Pressure max.
315 bar

Pressure setting max.
40 bar

Pressure setting min.
15 bar

Sealing material
NBR

Torque tightening
45 - 50 Nm
Package size
1 st

Barcode
374812

Gross weight
0,27 Kg

Net weight
0,27 Kg

Country of origin

Intrastat code
84812010

VDP 06/NC, Sequence Valve, Normally Closed, Spool Type, Hydraulic Pilot, Atmospheric Vent

This is a hydraulically pilot operated spool valve, normally closed from port 2 to 3 with an atmospheric vent. When the pilot pressure on port 1 reaches the setting, the valve will begin to open port 2 to 3. This is deal for sensing pressure in a remote area of a circuit to sequence another operation.
