MultiFaster male, 3P208 2 outlets 1/2 , 3/4 BSP fema

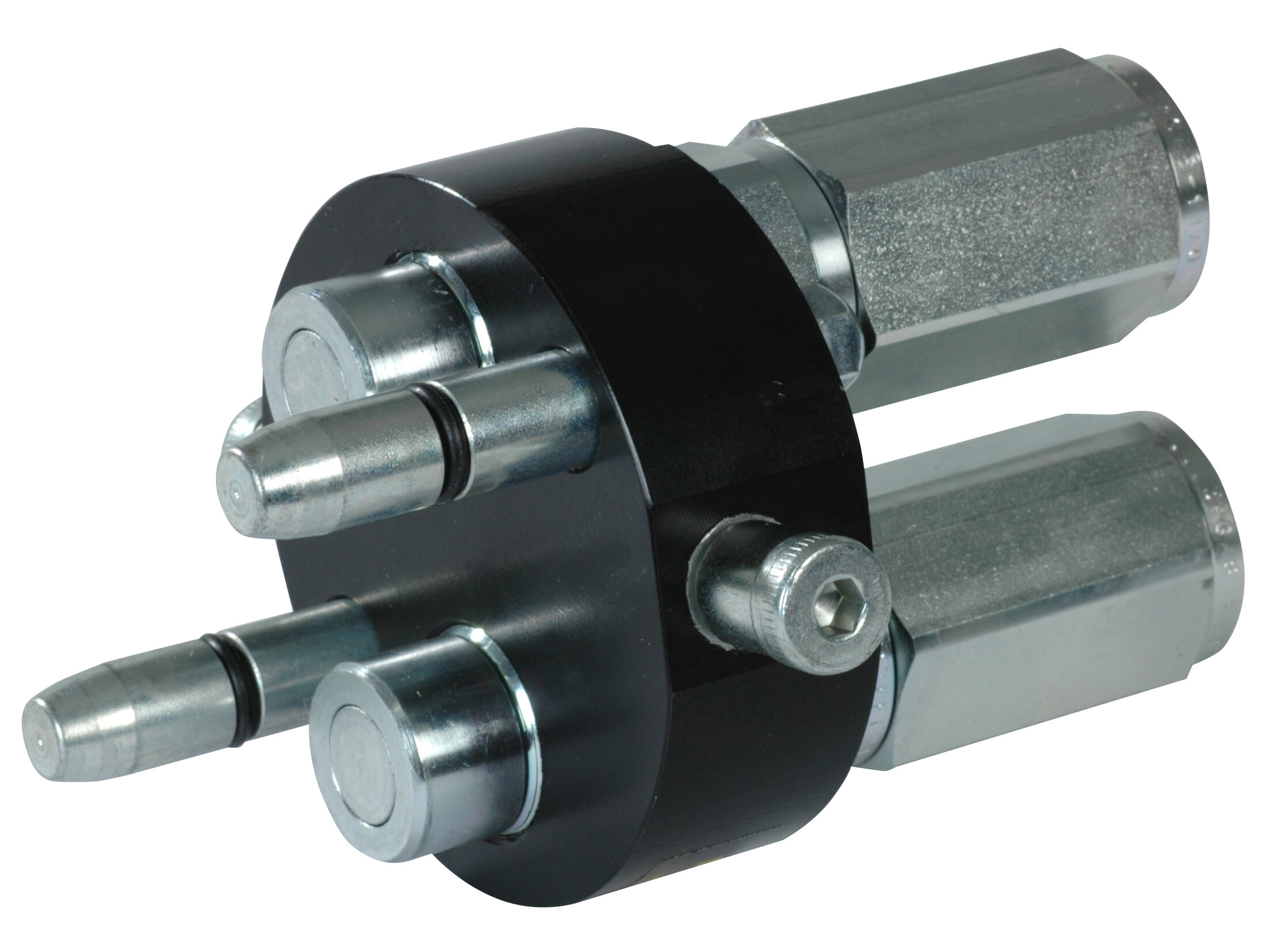

MultiFaster quick coupling.

Quick-release multiconnection system to connect several hydraulic and electrical lines in one operation. No fluid spillage or air inclusion during connection and disconnection of the multi-couplers.

Both 2P... and 3P... series are equipped with flat-face couplings.
3P... series is equipped with flat-face male couplings type 3FFNP on the mobile part, in order to achieve an effortless connection and disconnection under maximum working pressure.

Partnumber:
3P208-2-34GMC

Package size:
1 st

Min. order quantity is:
1 st
Brand Name
Faster

Corrosion resistance
500 hours salt spray ISO 9227

Flow rate nominal LMin
70 lpm

Model
3P208

Model code
3P208-2-34GMC

Number of connectors
2

Pressure burst min.
1000 bar

Pressure max.
250 bar

Sealing material
NBR, Polyurethane

Series
P208

Size
1/2 "

Surface treatment
Zinc coating (CR III)

Temperature max.
+100 °C

Temperature min.
-25 °C

Thread
G 3/4 BSP
Package size
1 st

Barcode
335767

Gross weight
1,94 Kg

Net weight
1,94 Kg

Country of origin
ITA

Intrastat code
84812010

MultiFaster quick coupling.

Quick-release multiconnection system to connect several hydraulic and electrical lines in one operation. No fluid spillage or air inclusion during connection and disconnection of the multi-couplers.

Both 2P... and 3P... series are equipped with flat-face couplings.
3P... series is equipped with flat-face male couplings type 3FFNP on the mobile part, in order to achieve an effortless connection and disconnection under maximum working pressure.
