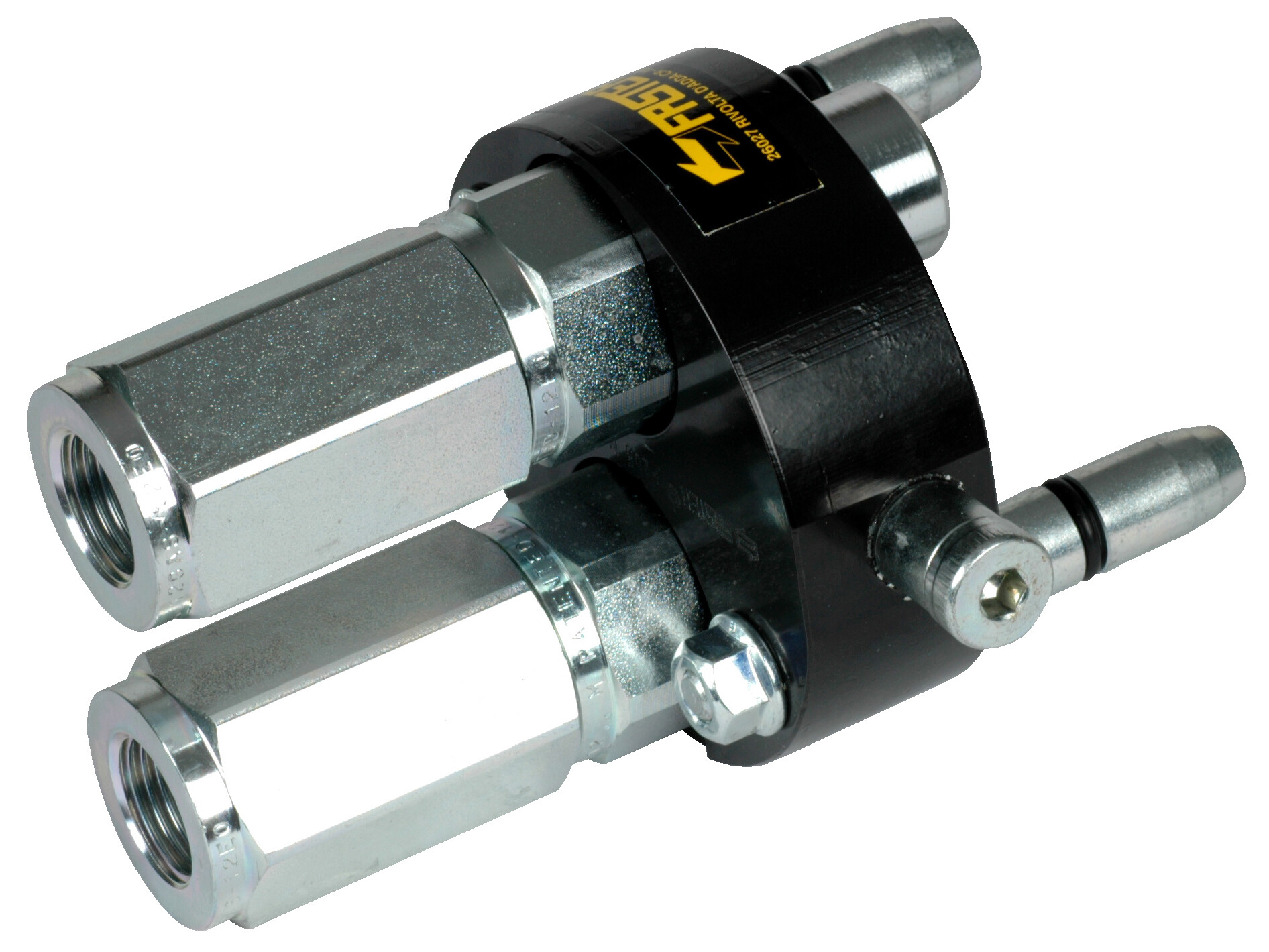

MultiFaster Mobile part, 3P208 2x1/2 outl, 1/2 BSP fem.

MultiFaster quick coupling.

Quick-release multiconnection system to connect several hydraulic and electrical lines in one operation. No fluid spillage or air inclusion during connection and disconnection of the multi-couplers.

Both 2P... and 3P... series are equipped with flat-face couplings.
3P... series is equipped with flat-face male couplings type 3FFNP on the mobile part, in order to achieve an effortless connection and disconnection under maximum working pressure.

Varenummer:
3P208-2-12GMC

Pakke str.:
2 st

Min. bestillingsenhed er:
1 st
Male 1/2 3P Multifaster KIT3FNP12GASF
Varenummer: KIT3FNP12GASM
STYRPINNE INKLUSIVE MUTTER
Varenummer: KITGP4
Bolts ø10x30mm MultiFaster
Varenummer: KITVP8
Seal kit 1/2 male (10) MultiFaster
Varenummer: SKMF12
Brand Name
Faster

Corrosion resistance
500 hours salt spray ISO 9227

Flow rate nominal LMin
70 lpm

Model
3P208

Model code
3P208-2-12GMC

Number of connectors
4

Pressure burst min.
1000 bar

Pressure max.
250 bar

Sealing material
NBR, Polyurethane

Series
P208

Size
1/2 "

Surface treatment
Zinc coating (CR III)

Temperature max.
+100 °C

Temperature min.
-25 °C

Thread
G 1/2 BSP
Pakke str.
2 st

Stregkode
189743

Brutto vægt
1,94 Kg

Netto vægt
1,94 Kg

Oprindelsesland
ITA

Intrastat varekode
84812010

MultiFaster quick coupling.

Quick-release multiconnection system to connect several hydraulic and electrical lines in one operation. No fluid spillage or air inclusion during connection and disconnection of the multi-couplers.

Both 2P... and 3P... series are equipped with flat-face couplings.
3P... series is equipped with flat-face male couplings type 3FFNP on the mobile part, in order to achieve an effortless connection and disconnection under maximum working pressure.
