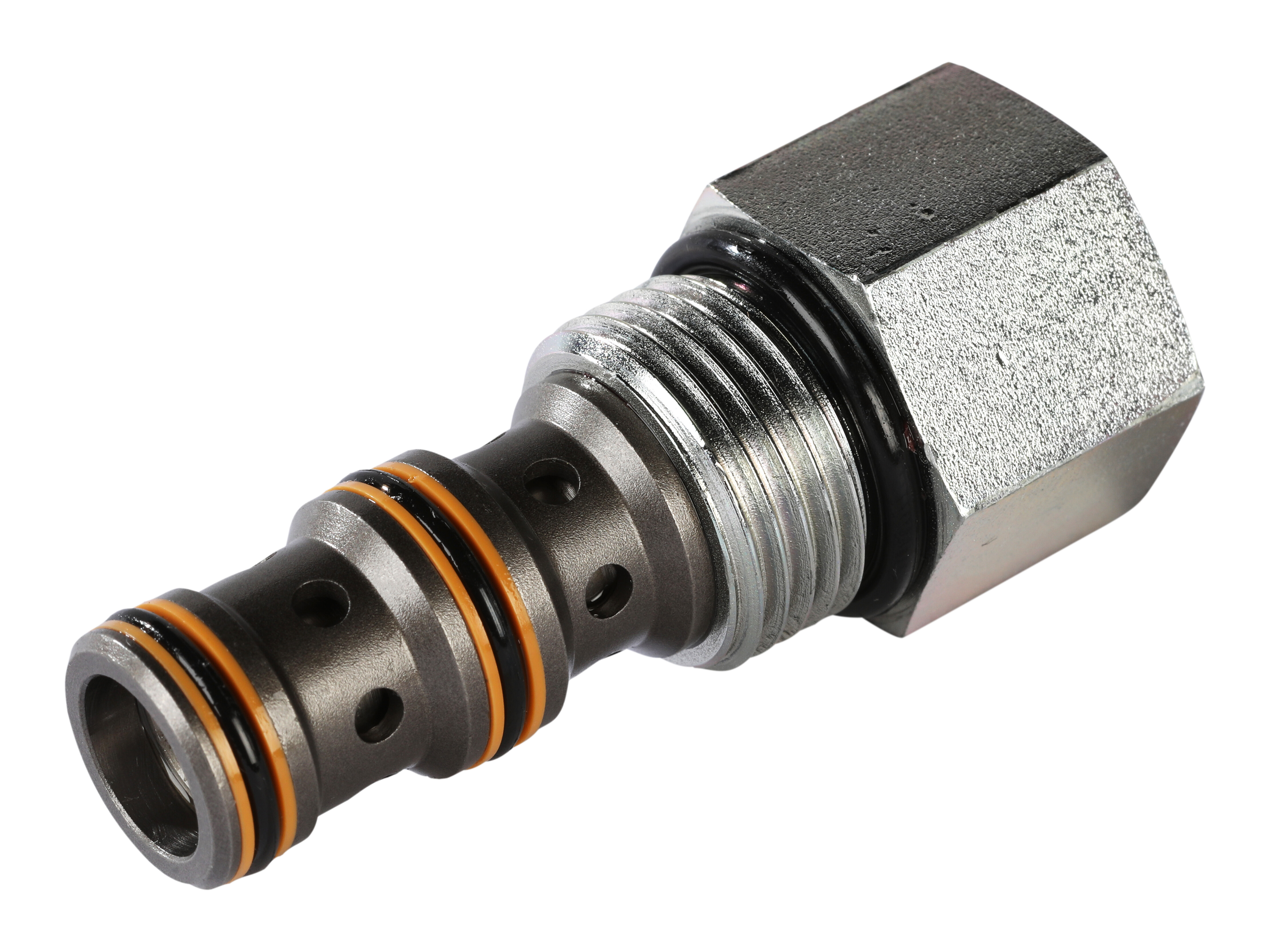

Logic element 40l/m NO Spool type CP700-4-B-0-150
This is a 3-ported, normally open, pilot to open, spool type logic element. Flow is open from port 2 to port 1, until pressure in port 1 is sufficient to overcome the spring set pressure plus any pressure in port 3.
The pressure in port 3 can be controlled remotely making the valve ideal for use as a normally open on/off element in a pressure reducing function. This valve is most commonly used as a pressure compensator in conjunction with a proportional directional valve.
Partnumber:
133899
Package size:
1 st
Min. order quantity is:
1 st
Flödeshastighet nominell LMin
40 lpm
Föroreningsgrad max.
20/18/14 - ISO 4406
Kavitet
SDC10-3
Modell kod
CP700-4-B-0-150
Märke namn
Danfoss
Oljeviskositet rekommanderad
12 - 54 cSt
Temperatur max.
+100 °C
Temperatur min.
-40 °C
Tryck max.
210 bar
Åtdragning moment
41 - 47 Nm
Package size
1 st
Barcode
467522
Gross weight
0,13 Kg
Net weight
0,13 Kg
Country of origin
Intrastat code
84812010
This is a 3-ported, normally open, pilot to open, spool type logic element. Flow is open from port 2 to port 1, until pressure in port 1 is sufficient to overcome the spring set pressure plus any pressure in port 3.
The pressure in port 3 can be controlled remotely making the valve ideal for use as a normally open on/off element in a pressure reducing function. This valve is most commonly used as a pressure compensator in conjunction with a proportional directional valve.
