Press. relief valve 150l/m 17-172bar (69) CP201-1-B-0-E-B-XX

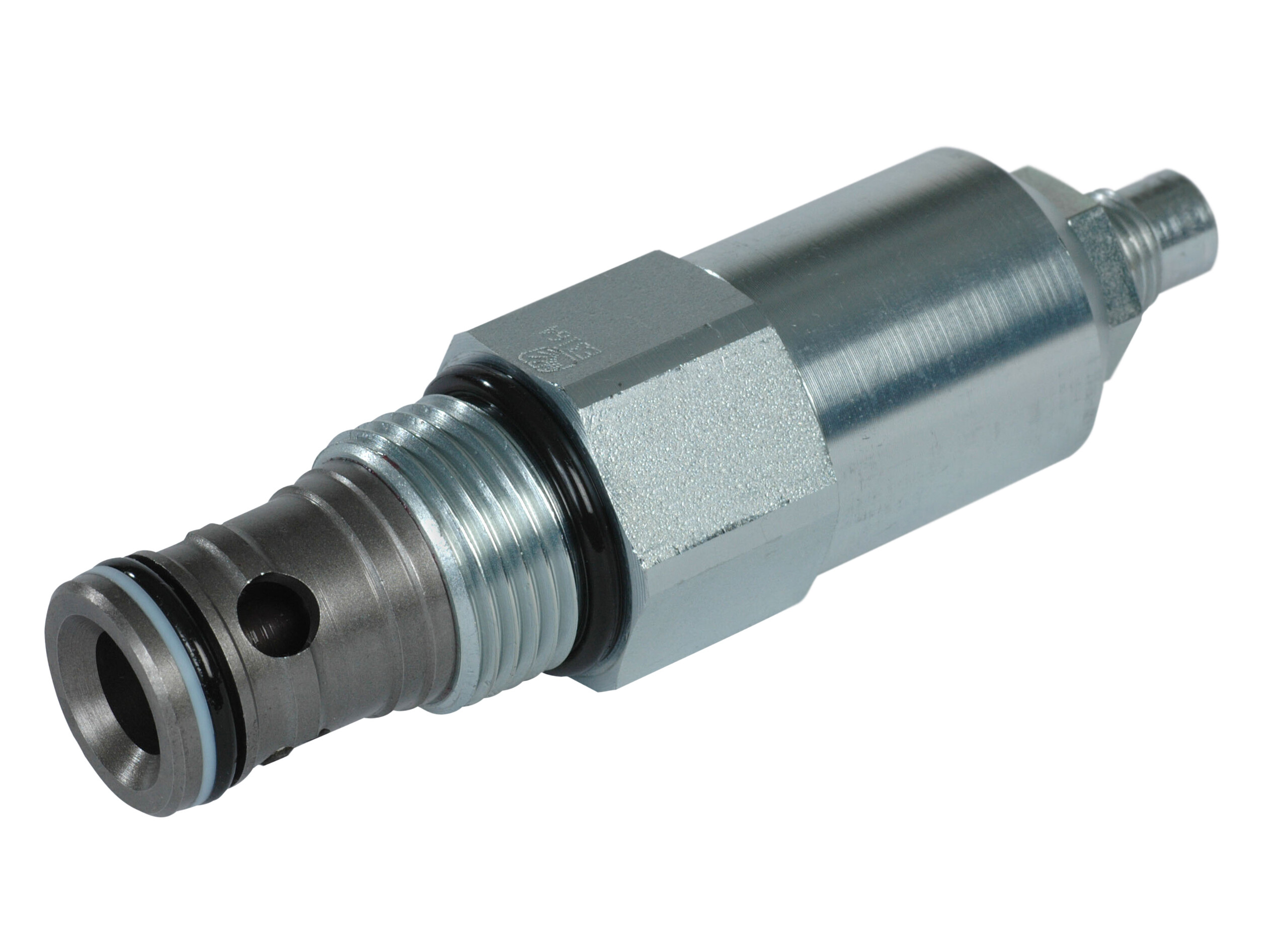

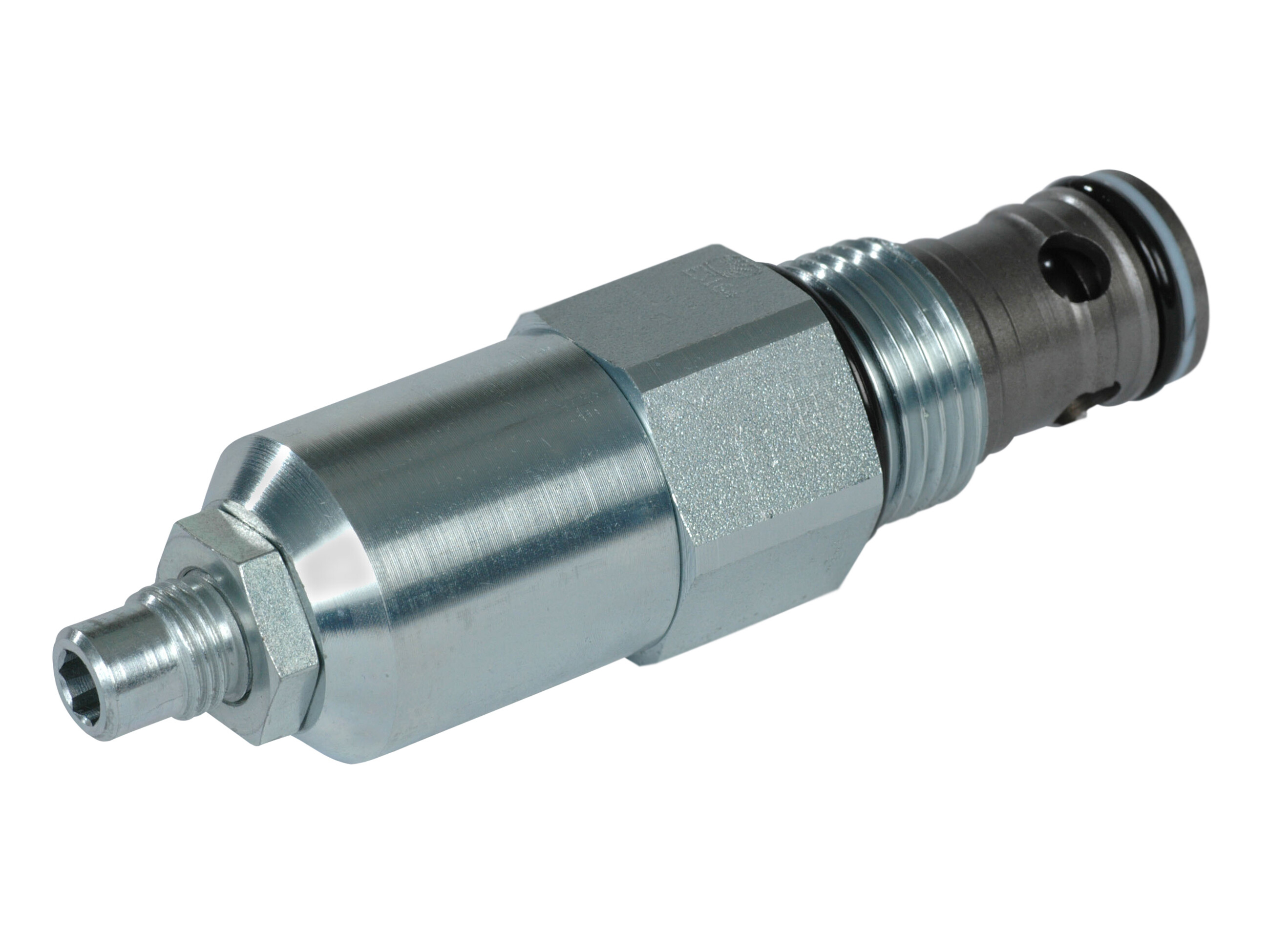

Cp201-1, Relief Valve, Differential Area, Poppet Type
This is a fast acting, differential area, poppet type relief valve that relieves from port 2 to 1. It can be used to protect an actuator from over-pressurization or to remove pressure spikes.
Varenummer:
132290.000
Pakke str.:
1 st
Min. bestillingsenhed er:
1 st
Brand Name
Danfoss
Cavity
CP12-2
Contamination level max.
20/18/14 - ISO 4406
Flow rate nominal LMin
150 lpm
Key size
31.75 mm
Model code
CP201-1-B-0-E-B-XXX
Oil viscocity recommended
12 - 54 cSt
Pressure max.
250 bar
Pressure setting max.
172 bar
Pressure setting min.
17 bar
Sealing material
NBR
Torque tightening
68 - 75 Nm
Förpackningsstorlek
1 st
Streckkod
374686
Bruttovikt
0,42 Kg
Nettovikt
0,42 Kg
Ursprungsland
ITA
Intrastat artikelkod
84812010
Cp201-1, Relief Valve, Differential Area, Poppet Type
This is a fast acting, differential area, poppet type relief valve that relieves from port 2 to 1. It can be used to protect an actuator from over-pressurization or to remove pressure spikes.
