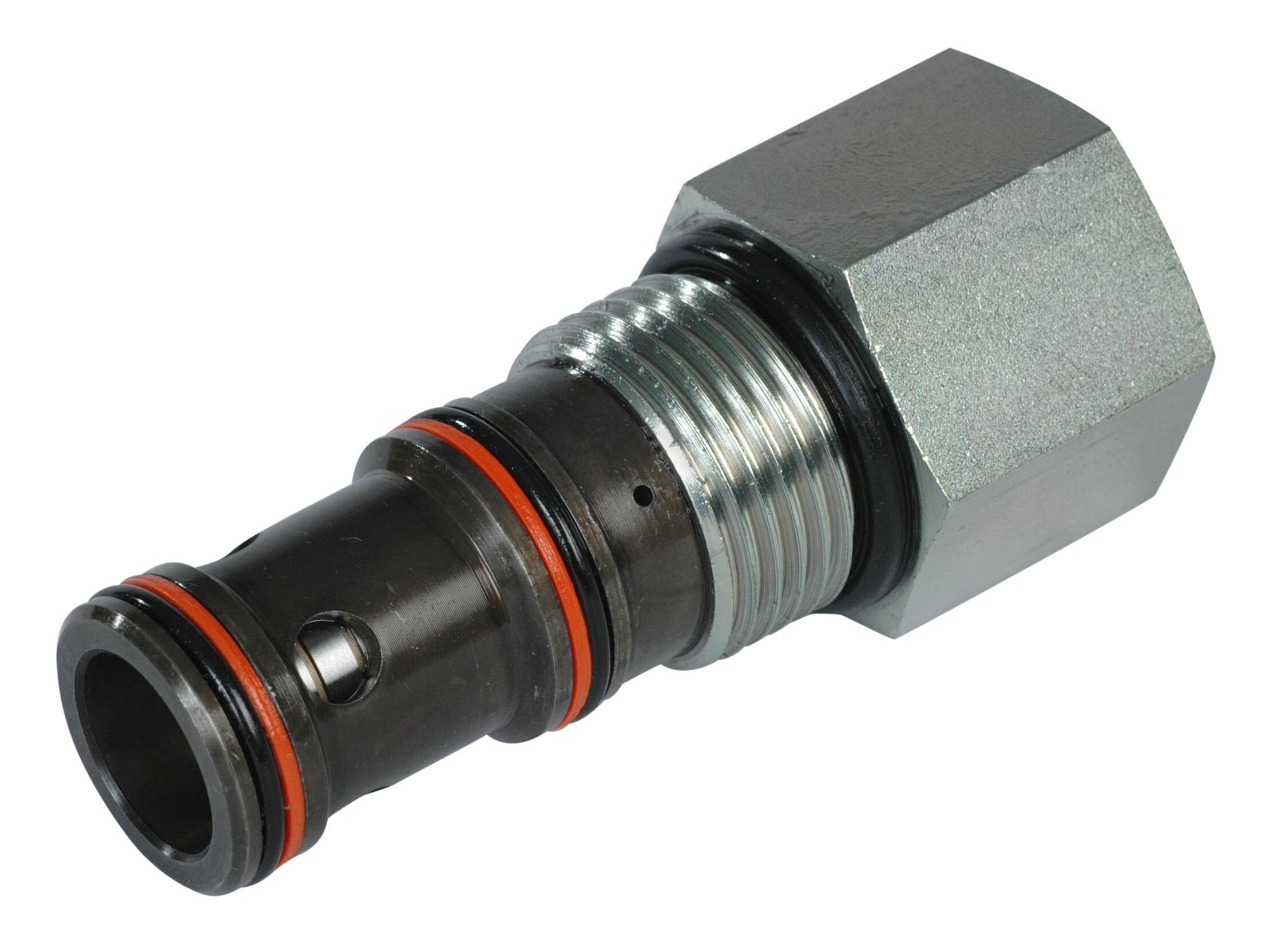

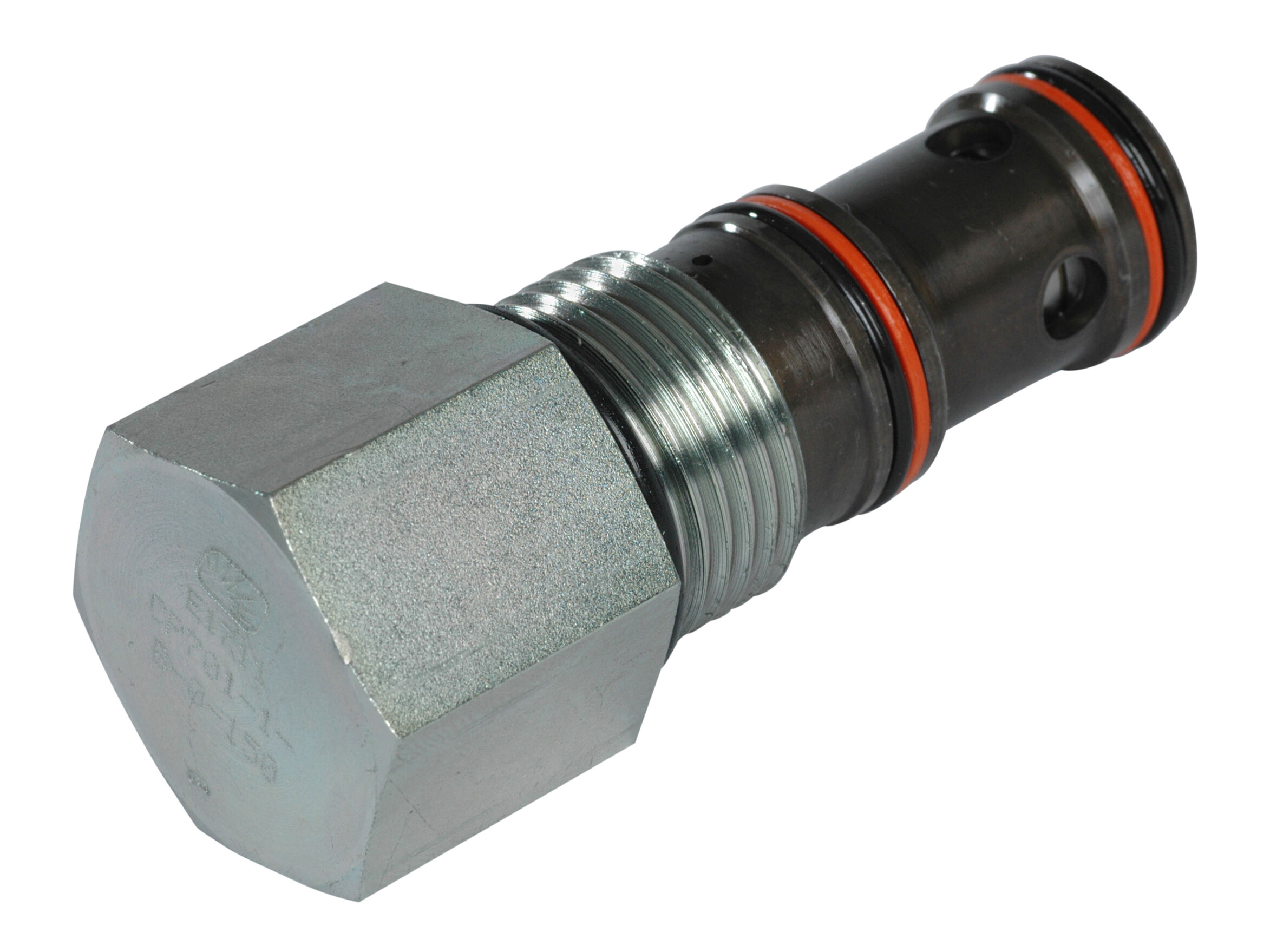

LOGIC ELEMENT CART. CP701-1-B-0-150

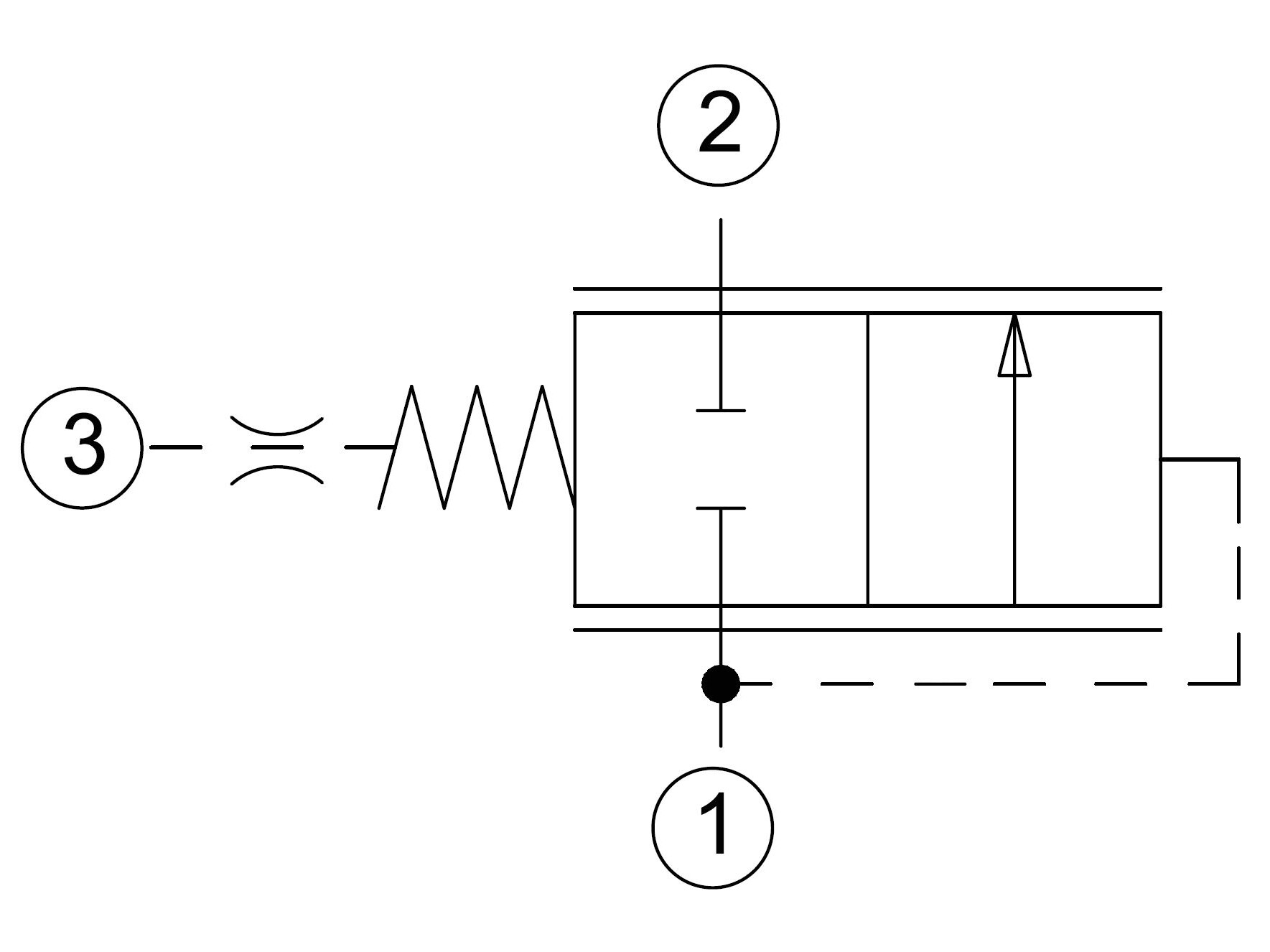

This is a 3-ported, normally closed, pilot to close spool type logic element. By opening port 3 to tank, flow can pass from port 1 to port 2. Flow is blocked from port 1 to port 2 unless the pressure is high enough in port 1 to overcome the spring set pressure.

Applying pressure to port 3 will increase the pressure required in port 1 to open the valve by a factor of 1 to 1. This valve is ideal for use as a pressure compensator, bypass valve, or a pilot to close valve in regenerative circuits.

Partnumber:
131504-CP701

Package size:
1 st

Min. order quantity is:
1 st
Brand Name
Danfoss

Cavity
CP12-3S

Contamination level max.
20/18/14 - ISO 4406

Flow rate nominal LMin
150 lpm

Model code
CP701-1-B-0-150

Oil viscocity recommended
12 - 54 cSt

Pressure max.
350 bar

Temperature max.
+100 °C

Temperature min.
-40 °C

Torque tightening
68 - 75 Nm
Package size
1 st

Barcode
379553

Gross weight
0,29 Kg

Net weight
0,29 Kg

Country of origin

Intrastat code
84812010

This is a 3-ported, normally closed, pilot to close spool type logic element. By opening port 3 to tank, flow can pass from port 1 to port 2. Flow is blocked from port 1 to port 2 unless the pressure is high enough in port 1 to overcome the spring set pressure.

Applying pressure to port 3 will increase the pressure required in port 1 to open the valve by a factor of 1 to 1. This valve is ideal for use as a pressure compensator, bypass valve, or a pilot to close valve in regenerative circuits.
