    • Fixed Prio. Flow Cont. valve 38l/m 12l/m CP310-1-B-0-3.0

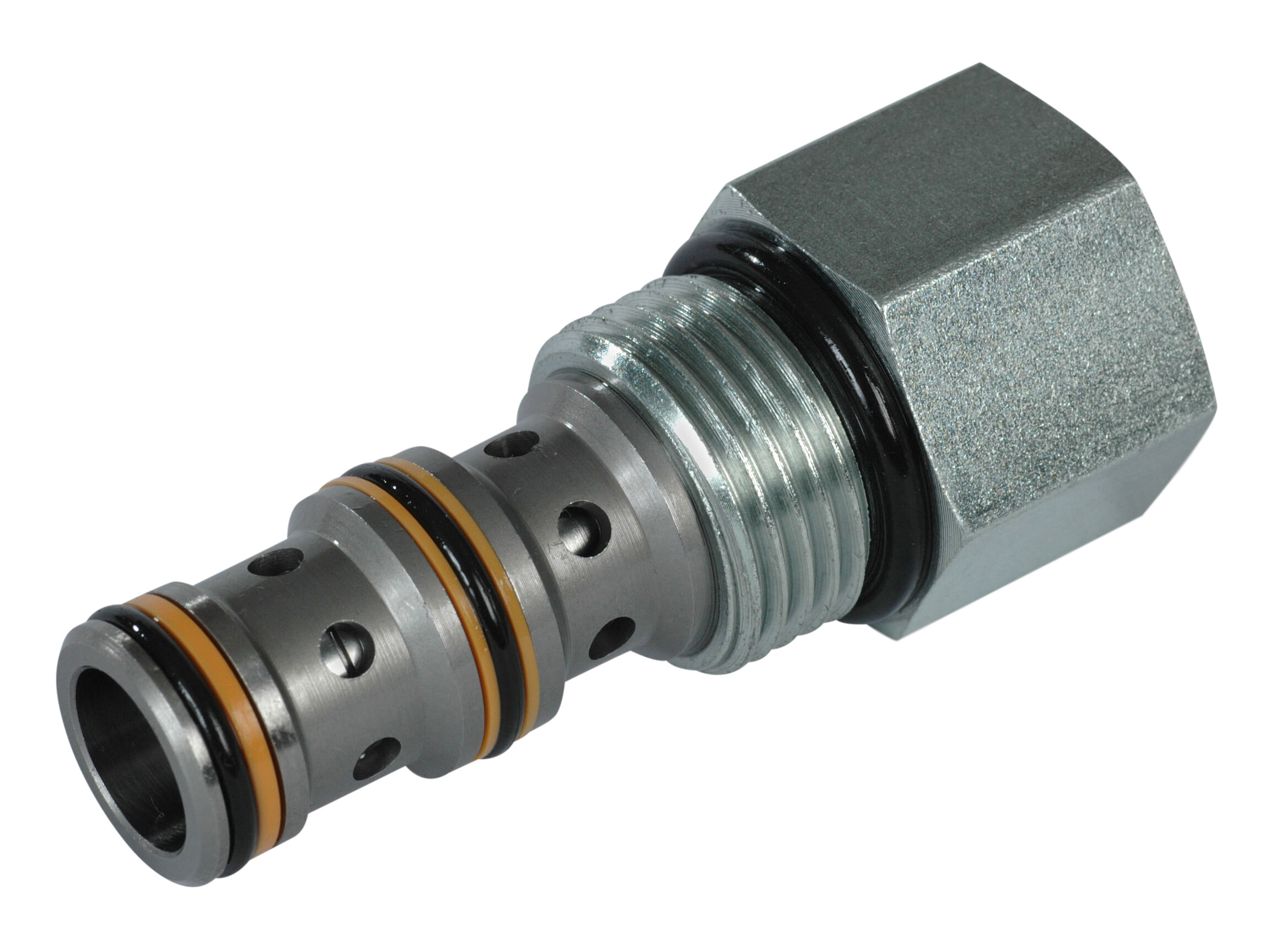

    Fixed Prio. Flow Cont. valve 38l/m 12l/m CP310-1-B-0-3.0

    This valve is a fixed, pressure compensated priority-type ­flow control valve.

    Artikelnummer:
    130612-CP310
    Förpackningsstorlek:
    1 st
    Minsta beställningskvantitet:
    1 st
    922514310 - Ventilhus Comatrol SDC10-3-SE3B (3/8)
    Artikelnummer: 922514310
    922514410 - Ventilhus Comatrol SDC10-3-SE4B (1/2)
    Artikelnummer: 922514410
    922514510 - Ventilhus Comatrol SDC10-3--SI3B (3/8)
    Artikelnummer: 922514510
    922514610 - Ventilhus Comatrol SDC10-3--SI4B (1/2)
    Artikelnummer: 922514610
    KIT, SEAL CP10-3 CAV BUNA N #
    Artikelnummer: 120240
    Brand Name
    Danfoss
    Cavity
    SDC10-3
    Contamination level max.
    20/18/14 - ISO 4406
    Flow max. regulated
    12 lpm
    Flow min. regulated
    12 lpm
    Inlet flow max.
    38 lpm
    Model code
    CP310-1-B-0-3.0
    Oil viscocity recommended
    12 - 54 cSt
    Pressure compensated
    No
    Pressure max.
    210 bar
    Sealing material
    NBR
    Temperature max.
    +100 °C
    Temperature min.
    -40 °C
    Torque tightening
    41 - 47 Nm
    Förpackningsstorlek
    1 st
    Streckkod
    379541
    Bruttovikt
    0,14 Kg
    Nettovikt
    0,14 Kg
    Ursprungsland
    ITA
    Intrastat artikelkod
    84812010

    This valve is a fixed, pressure compensated priority-type ­flow control valve.

    Product datasheet
