SHUTTLE VALVE SV 04-00

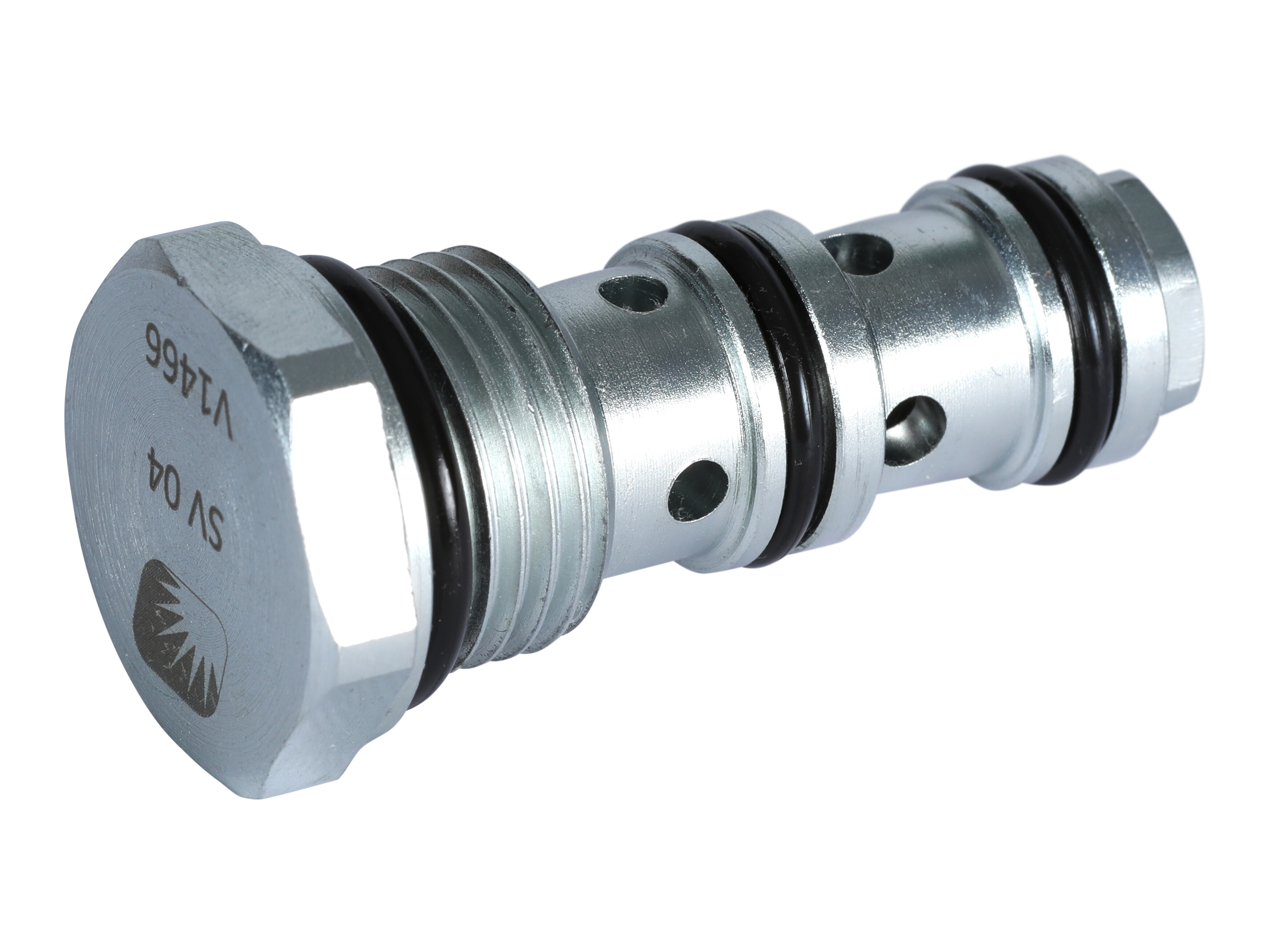

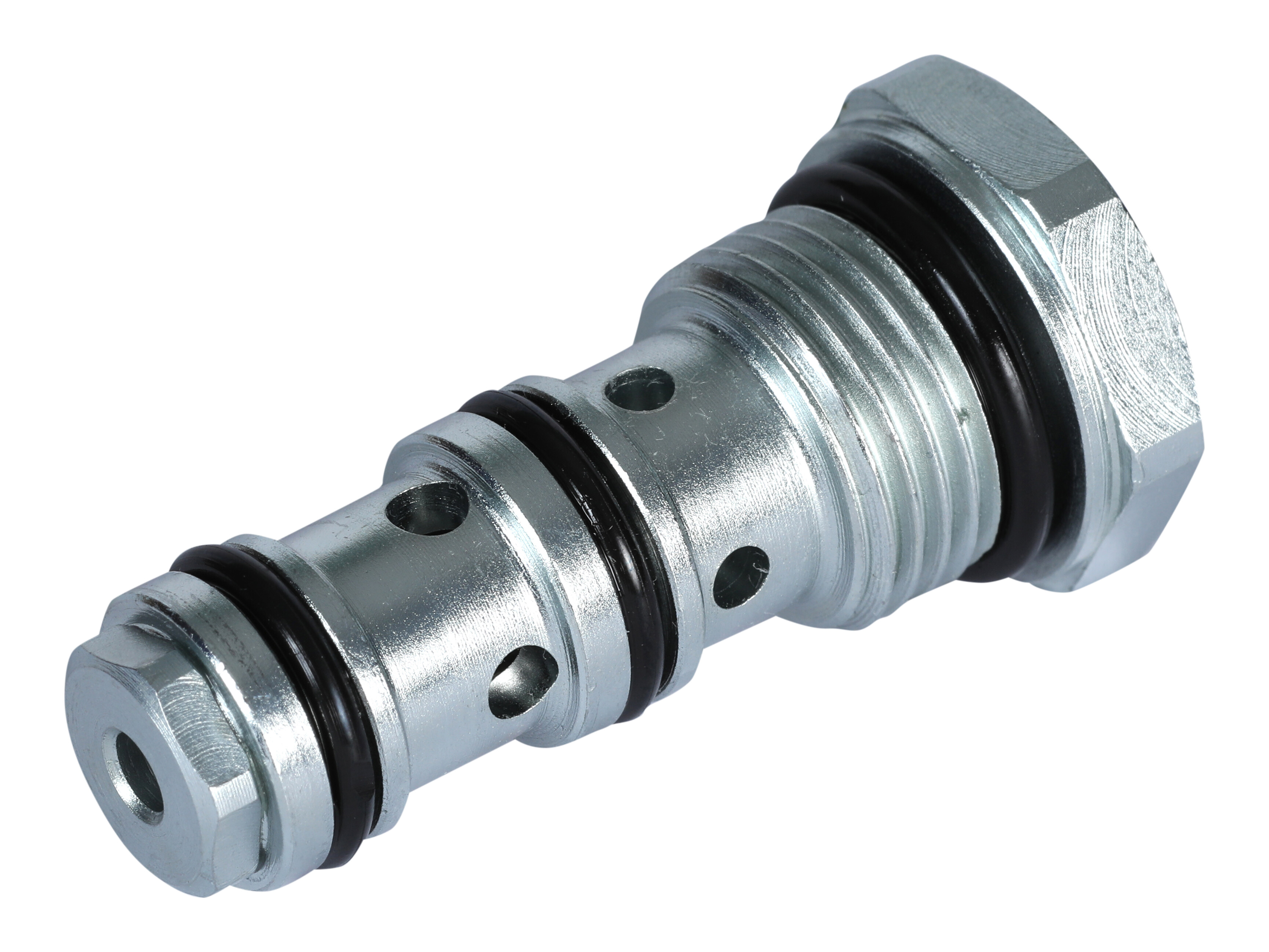

SV04 Load Shuttle Valve.

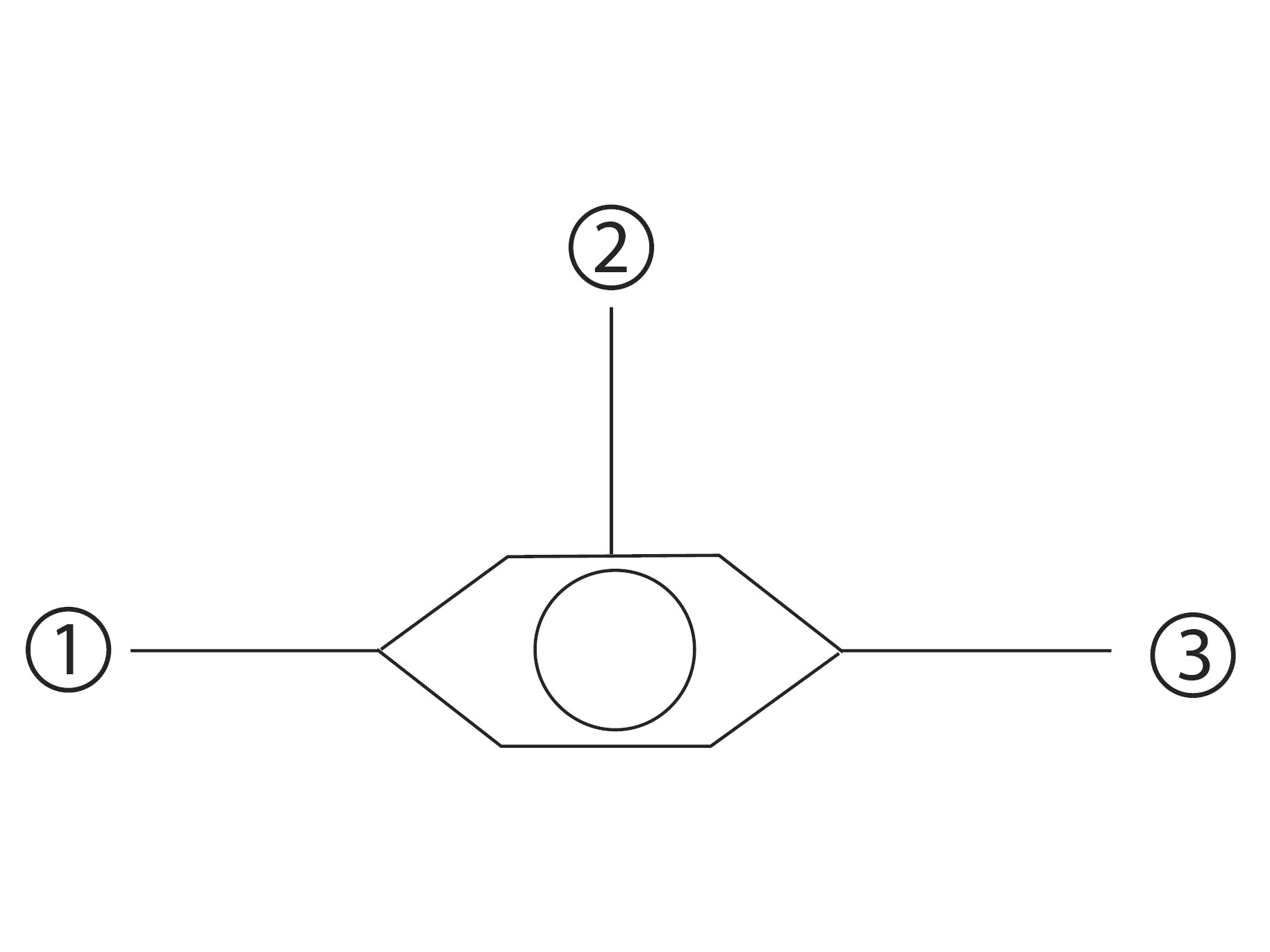

This valve senses the higher of the two input pressures at ports 1 and 3 and routes it to the output port 2.
Partnumber:
11169120
Package size:
1 st
Min. order quantity is:
1 st
Brand Name
Danfoss
Cavity
NCS04/3
Contamination level max.
20/19/14 - ISO 4406
Flow rate nominal LMin
15 lpm
Material
Steel
Model code
SV04-00
Oil viscocity recommended
12 - 54 cSt
Pressure max.
315 bar
Sealing material
NBR
Temperature max.
+100 °C
Temperature min.
-40 °C
Torque tightening
34 - 40 Nm
Package size
1 st
Barcode
374674
Gross weight
0,07 Kg
Net weight
0,07 Kg
Country of origin
Intrastat code
84812010
SV04 Load Shuttle Valve.
This valve senses the higher of the two input pressures at ports 1 and 3 and routes it to the output port 2.
