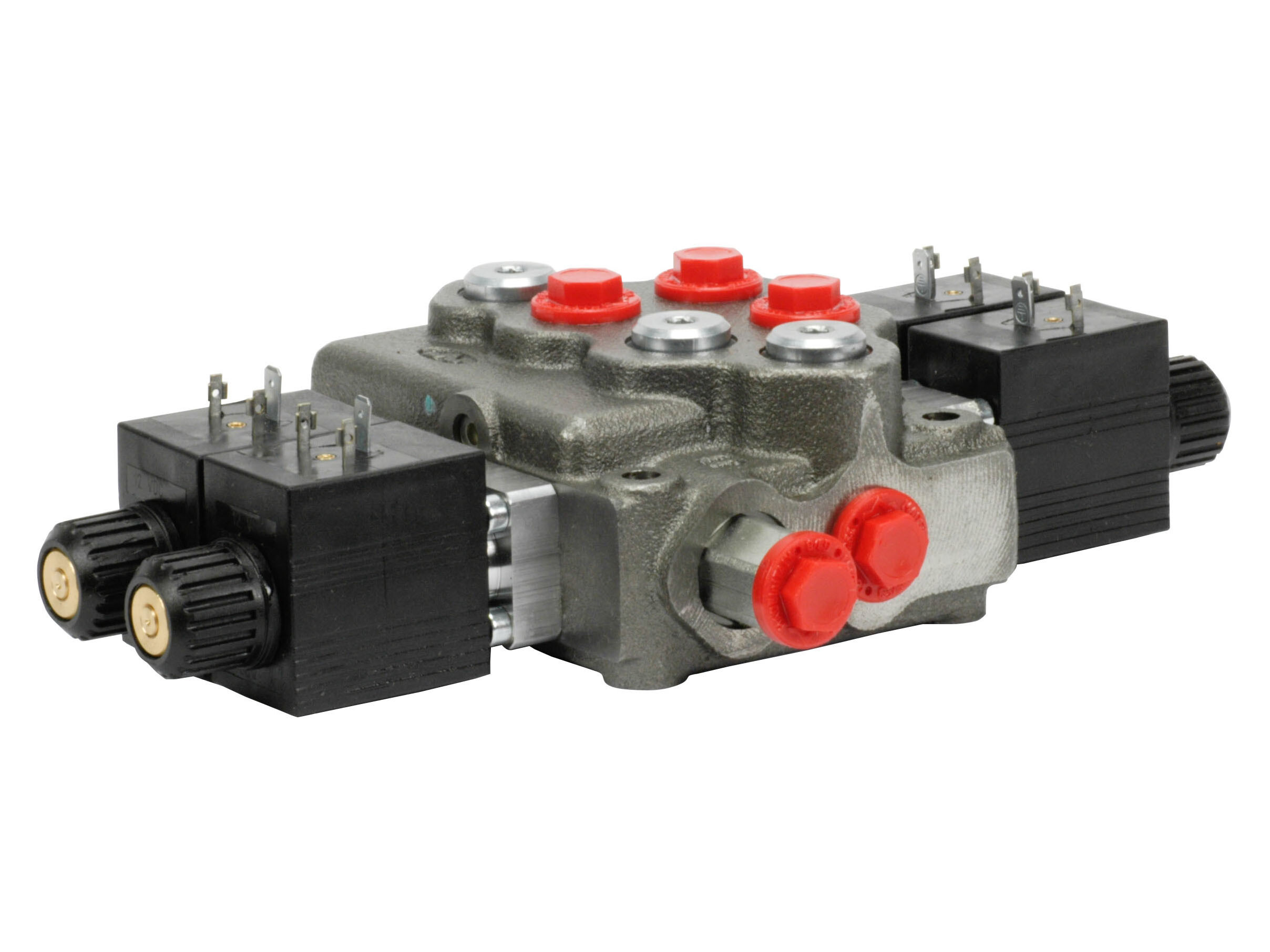

SD5/2-P(JG3-120)/18ES3/38ES3/ AE-12VDC, Walvoil

2-section SD5 monoblock valve with built-in pressure relieef valve and 2 spools in parallel. Solenoid activated (12 Vdc).

Spool function:
1 x double acting with port A and B closed in neutral position. Spring centered.
1 x single acting function on port A. Port B plugged. Spring centered.

Solenoid activation: On/Off.

Open center P to T in neutral position.

Artikelnummer:
102200683

Förpackningsstorlek:
1 st

Minsta beställningskvantitet:
1 st
Brand Name
Walvoil

Contamination level max.
-/19/16 - ISO 4406

Current type
DC

Flow rate nominal LMin
45 lpm

Lever
Exclusive

Material
Cast iron

Model code
SD5/2-P(JG3-120)/18ES3/38ES3/AE-12VDC

Number of sections
2

Oil viscocity recommended
12 - 400 cSt

Port P
G 3/8 BSP

Port T
G 3/8 BSP

Pressure T max.
25 bar

Pressure carry-over
Yes

Pressure max.
315 bar

Pressure relief valve
Yes

Pressure setting max.
200 bar

Pressure setting min.
50 bar

Voltage
12 V

Working ports
G 3/8 BSP
Pakke str.
1 st

Stregkode
467882

Brutto vægt
6,50 Kg

Netto vægt
6,50 Kg

Oprindelsesland
ITA

Intrastat varekode
84812010

2-section SD5 monoblock valve with built-in pressure relieef valve and 2 spools in parallel. Solenoid activated (12 Vdc).

Spool function:
1 x double acting with port A and B closed in neutral position. Spring centered.
1 x single acting function on port A. Port B plugged. Spring centered.

Solenoid activation: On/Off.

Open center P to T in neutral position.
