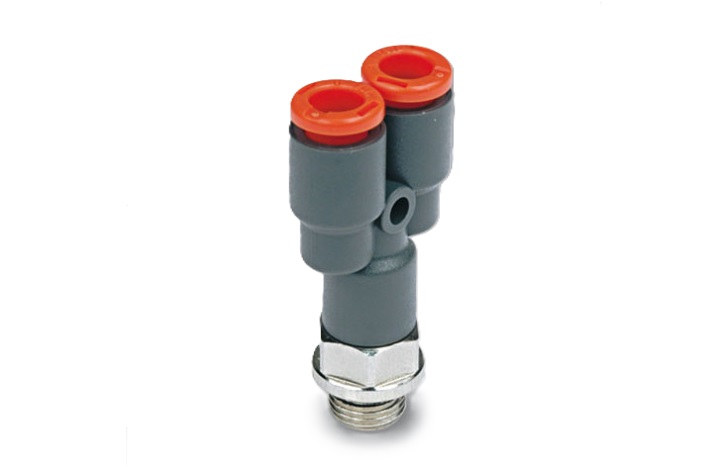

R23M Directional Y-connectors for plug-in connectors MW

R23M Directional Y-connectors for plug-in connectors MW

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Diameter pipe Thread Pressure max. Brand Name
R23M0402 Y-Lähtöliitin R23/M G 1/8"uk - 4mm putkelle 4 mm G 1/8 BSP 12 bar Metal Work
R23M0802 Y-Lähtöliitin R23/M G 1/8"uk - 8mm putkelle 8 mm G 1/8 BSP 12 bar Metal Work
R23M0804 Y-Lähtöliitin R23/M G 1/4"uk - 8mm putkelle 8 mm G 1/4 BSP 12 bar Metal Work
Area of use
Compressed air, Vacuum
Brand Name
Metal Work
F1
3,3 mm
Material
Brass, Technopolymer
Pressure max.
12
REACH compliant
Yes
RoHs compliant
Yes
Sealing material
NBR
Temperature max.
+60
Temperature min.
-20
Vacuum max.
0.99
