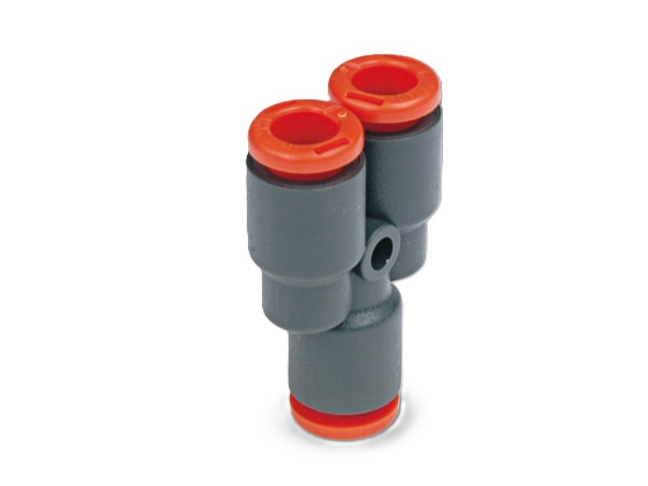

RL23 Y-connector Y-connectors MW

RL23 Y-connector Y-connectors MW

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Diameter pipe Diameter pipe 1 Diameter pipe 2 Pressure max.
RL230404 Y-fitting RL23 4 mm 4 mm 12 bar
RL230505 Y-fitting RL23 5 mm 5 mm 12 bar
RL230604 Y-fitting RL23 6 -> 2x4 mm 6 mm 4 mm 12 bar
RL230606 Y-fitting RL23 6 mm 6 mm 12 bar
RL230806 Y-fitting RL23 8 -> 2x6 mm 8 mm 6 mm 12 bar
RL230808 Y-fitting RL23 8 mm 8 mm 12 bar
RL231008 Y-fitting RL23 10-6 mm 10 mm 8 mm 12 bar
RL231010 Y-fitting RL23 10 mm 10 mm 12 bar
RL231210 Y-fitting RL23 12 -> 2x10 mm 12 mm 10 mm 12 bar
RL231212 Y-fitting RL23 12 mm 12 mm 12 bar
Area of use
Compressed air, Vacuum
Brand Name
Metal Work
Material
Technopolymer
Pressure max.
12
REACH compliant
Yes
RoHs compliant
Yes
Sealing material
NBR
Temperature max.
+60
Temperature min.
-20
Vacuum max.
0.99
