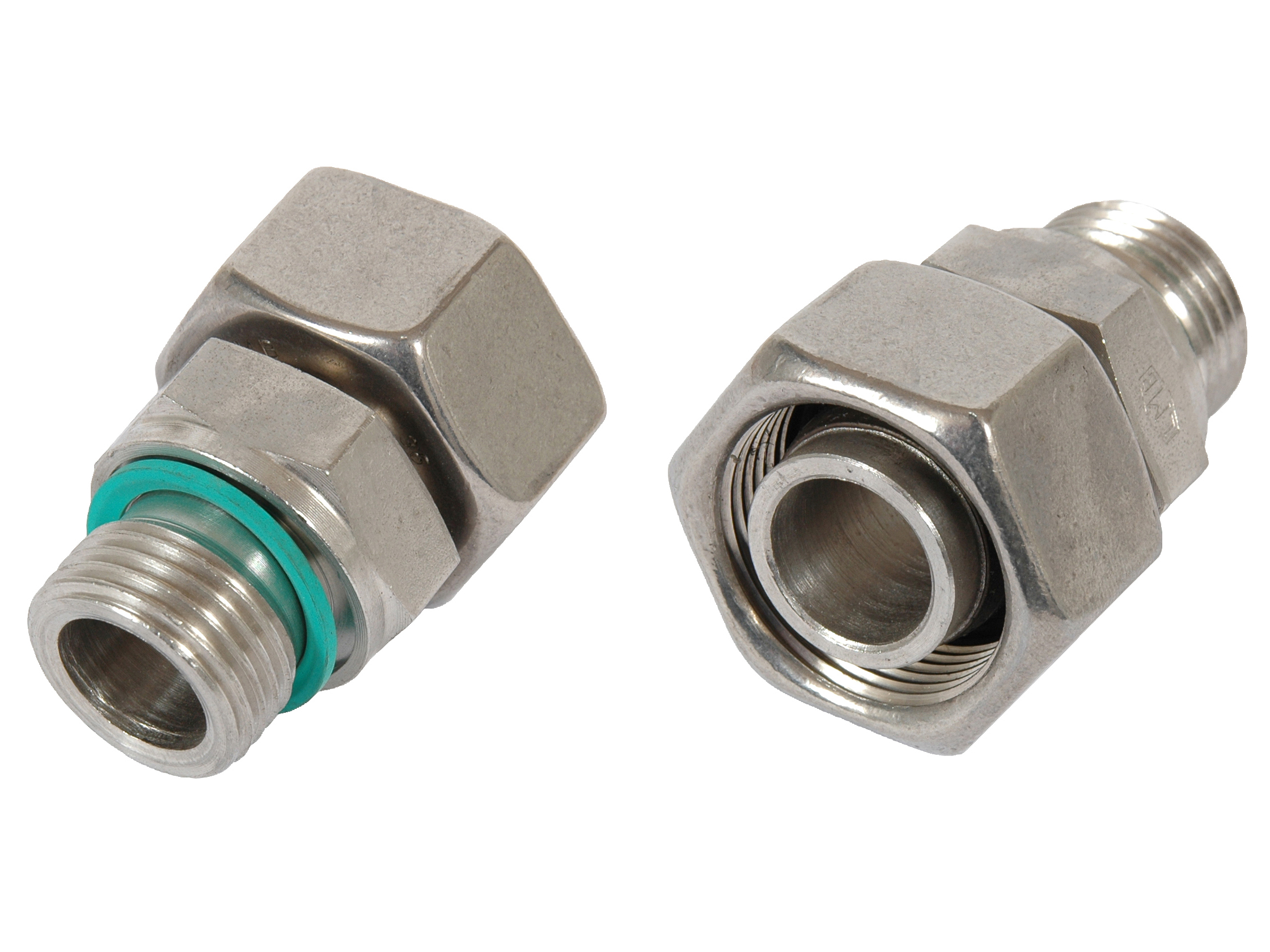

Straight fitting 0° - L-series - DIN union nut x BSP male stainless

Straight fitting 0° - L-series - DIN union nut x BSP male stainless

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Diameter pipe Thread outer Thread inner metric Pressure max.
HPUN-10-LR Putkinippa,kevyt ED 10 mm G 1/4 BSP M16x1,5 MM 315 bar
HPUN-15-LR SKÄRK 15L-G1/2 ED 15 mm G 1/2 BSP M22x1,5 MM 315 bar
Angle
0
Brand Name
PH Industrie-Hydraulik
Material
Stainless steel
Material quality
1.4571 / AISI316Ti
Pressure max.
315
REACH compliant
Yes
RoHs compliant
Yes
Safety factor
4
Sealing material
FKM/FPM (Viton®)
Series
L
Temperature max.
+200
Temperature min.
-25
