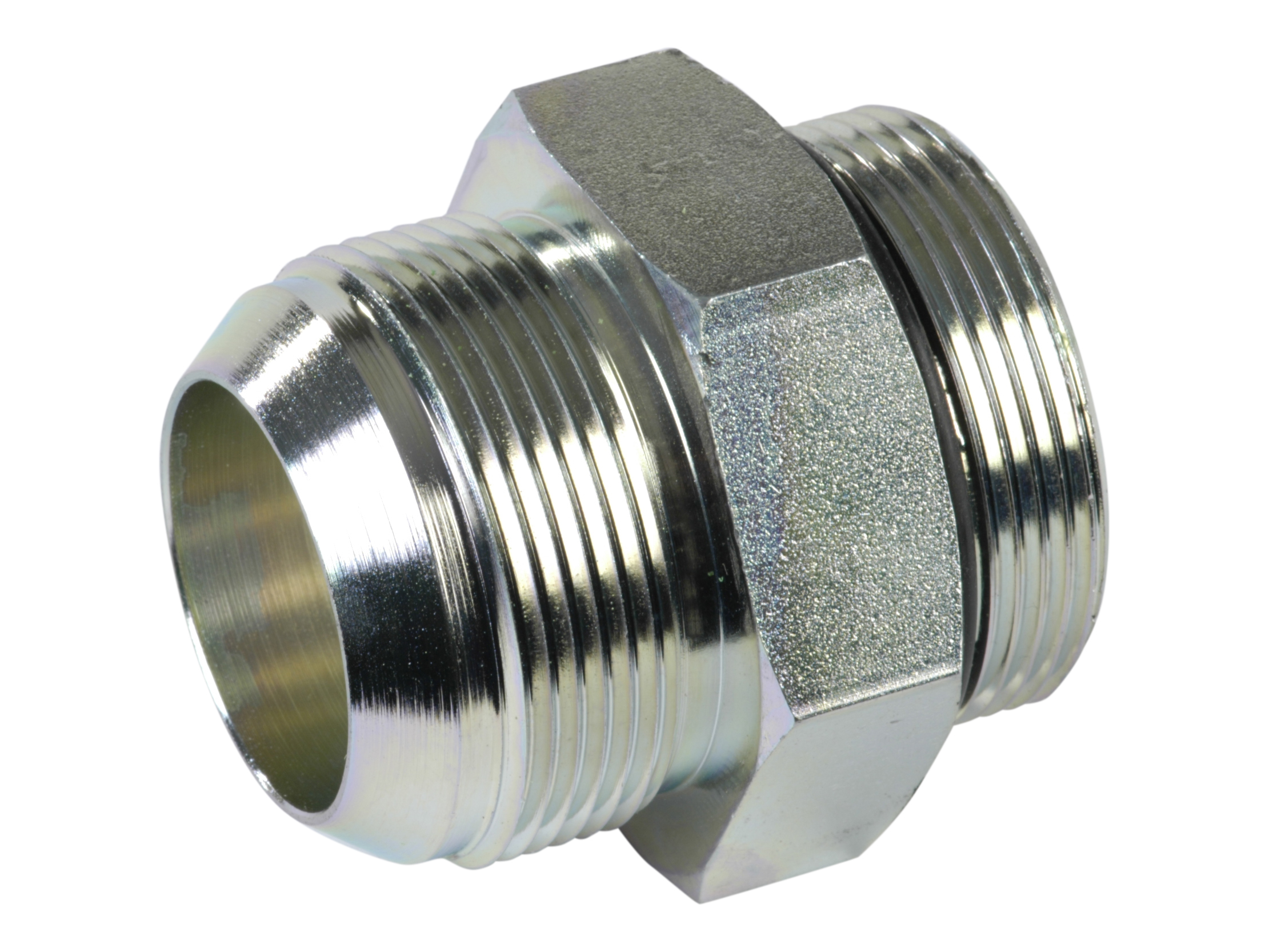

Adapter JIC male x UNF male

Adapter JIC male x UNF male

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Diameter pipe Thread outer Thread outer Pressure max.
S220-04 S220-06-11U adaptor UNF 6 mm 7/16-20 JIC 7/16-20 UNF 630 bar
S220-04-05-FOR Connector male JIC - male SAE 8 mm 1/2-20 JIC 7/16-20 UNF 416 bar
S220-04-06 Adapter Rak, Utv-JIC, Utv-UNF 10 mm 9/16-18 JIC 7/16-20 UNF 350 bar
S220-04-06-FOR S220-10-11U adaptor UNF 10 mm 9/16-18 JIC 7/16-20 UNF 350 bar
S220-05-04 S220-06-12U adaptor UNF 6 mm 7/16-20 JIC 1/2-20 UNF 630 bar
S220-05-FOR S220-08-12U adaptor UNF 8 mm 1/2-20 JIC 1/2-20 UNF 416 bar
S220-06-04 S220-06-14U adaptor UNF 6 mm 7/16-20 JIC 9/16-18 UNF 450 bar
S220-06-04-FOR SJU0709 6 mm 7/16-20 JIC 9/16-18 UNF 630 bar
S220-06-05 Connector male JIC - SAE UNF 8 mm 1/2-20 JIC 9/16-18 UNF 416 bar
S220-06-08-FOR S220-12-14U adaptor UNF 12 mm 3/4-16 JIC 9/16-18 UNF 350 bar
S220-06-10-FOR Perusliitin uk-uk 14-15-16 mm 7/8-14 JIC 9/16-18 UNF 350 bar
S220-06-FOR S220-10-14U adaptor UNF 10 mm 9/16-18 JIC 9/16-18 UNF 350 bar
S220-08-06-FOR S220-10-19U adaptor UNF NW22 10 mm 9/16-18 JIC 3/4-16 UNF 350 bar
S220-08-10 Adapter Rak, Utv-JIC, Utv-UNF 16 mm 7/8-14 JIC 3/4-16 UNF 350 bar
S220-08-10-FOR S220-16-19U adaptor UNF 14-15-16 mm 7/8-14 JIC 3/4-16 UNF 350 bar
S220-08-12 S220-20-19U adaptor UNF 20 mm 1.1/16-12 JIC 3/4-16 UNF 320 bar
S220-08-FOR S220-12-19U adaptor UNF NW22 12 mm 3/4-16 JIC 3/4-16 UNF 350 bar
S220-10 Adapter Rak, Utv-JIC, Utv-UNF 16 mm 7/8-14 JIC 7/8-14 UNF 350 bar
S220-10-06-FOR Adaptor 9/16-18 JIC male x 7/8-14 UNF male 10 mm 9/16-18 JIC 7/8-14 UNF 350 bar
S220-10-08 S220-12-22U adaptor UNF 12 mm 3/4-16 JIC 7/8-14 UNF 350 bar
S220-10-12 Adapter Rak, Utv-JIC, Utv-UNF 18-20 mm 1.1/16-12 JIC 7/8-14 UNF 350 bar
S220-10-12-FOR S220-20-22U adaptor UNF 20 mm 1.1/16-12 JIC 7/8-14 UNF 320 bar
S220-10-16 Connector male JIC - SAE UNF 25 mm 1.5/16-12 JIC 7/8-14 UNF 290 bar
S220-10-FOR S220-16-22U adaptor UNF 14-15-16 mm 7/8-14 JIC 7/8-14 UNF 350 bar
S220-12 Adapter Rak, Utv-JIC, Utv-UNF 18-20 mm 1.1/16-12 JIC 1.1/16-12 UNF 350 bar
S220-12-08 Adapter Rak, Utv-JIC, Utv-UNF 12 mm 3/4-16 JIC 1.1/16-12 UNF 350 bar
S220-12-10 Perusliitin uk-uk 16 mm 7/8-14 JIC 1.1/16-12 UNF
S220-12-10-FOR S220-16-27U adaptor UNF 14-15-16 mm 7/8-14 JIC 1.1/16-12 UNF 350 bar
S220-12-16 Adapter Rak, Utv-JIC, Utv-UNF 25 mm 1.5/16-12 JIC 1.1/16-12 UNF 280 bar
S220-12-16-FOR Indskruning 1.3/16-12 JIC udv 1.1/16-12 UNF udv 25 mm 1.5/16-12 JIC 1.1/16-12 UNF 290 bar
S220-12-FOR S220-20-27U adaptor UNF 18-20 mm 1.1/16-12 JIC 1.1/16-12 UNF 320 bar
S220-14-12-FOR Connector straight male UNF - JIC 18-20 mm 1.1/16-12 JIC 1.3/16-12 UNF 320 bar
S220-16-12 Adapter Rak, Utv-JIC, Utv-UNF 20 mm 1.1/16-12 JIC 1.5/16-12 UNF 350 bar
S220-16-20 S220-30-33U adaptor UNF 32 mm 1.5/8-12 JIC 1.5/16-12 UNF 250 bar
S220-16-FOR S220-25-33U adaptor UNF 25 mm 1.5/16-12 JIC 1.5/16-12 UNF 290 bar
S220-20 SJU2626 1.5/8-12 JIC 1.5/8-12 UNF
S220-20-FOR Adapter Rak, Utv-JIC, Utv-UNF 32 mm 1.5/8-12 JIC 1.5/8-12 UNF 250 bar
S220-24-FOR S220-38-48U adaptor UNF 38 mm 1.7/8-12 JIC 1.7/8-12 UNF 250 bar
