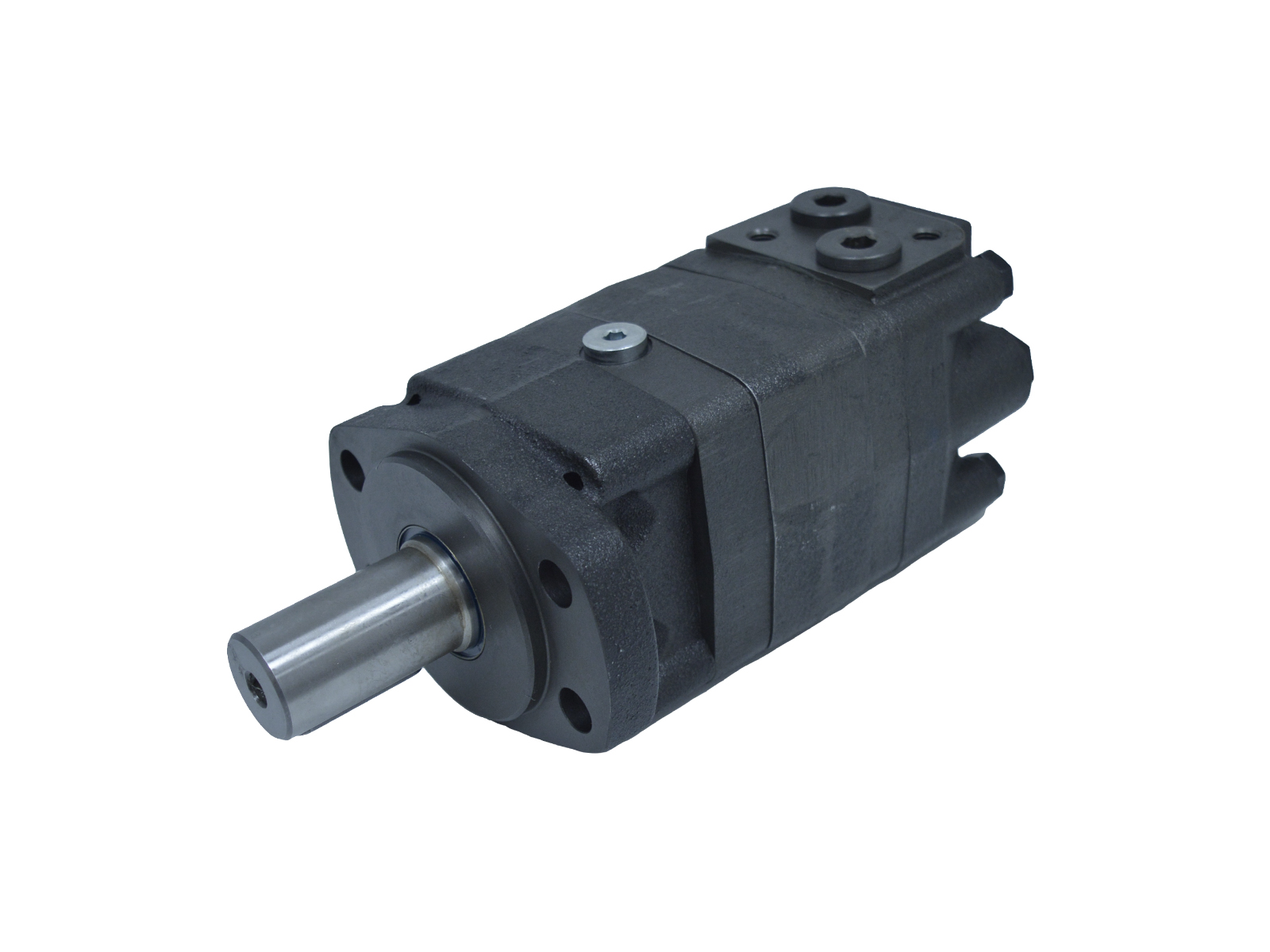

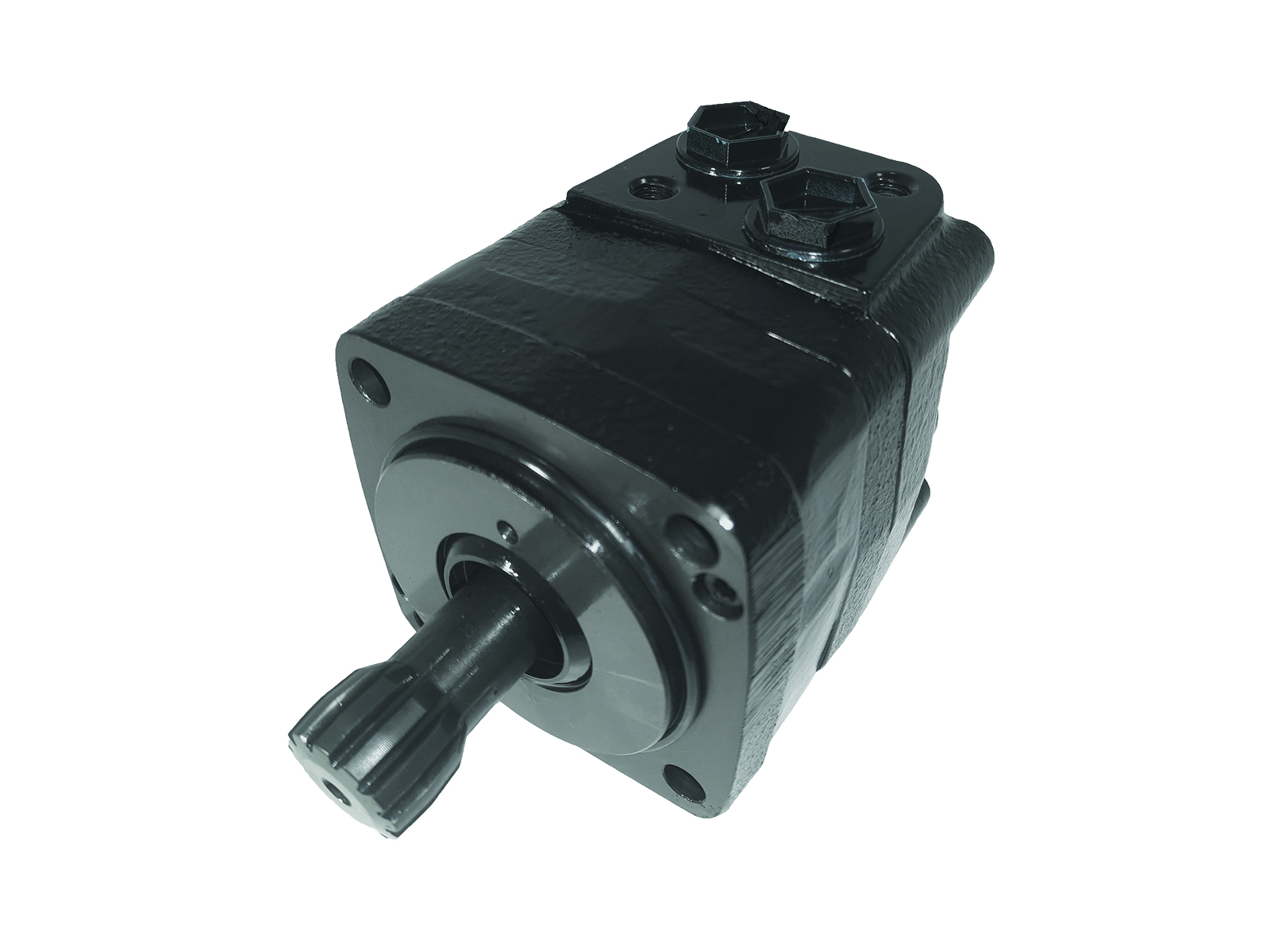

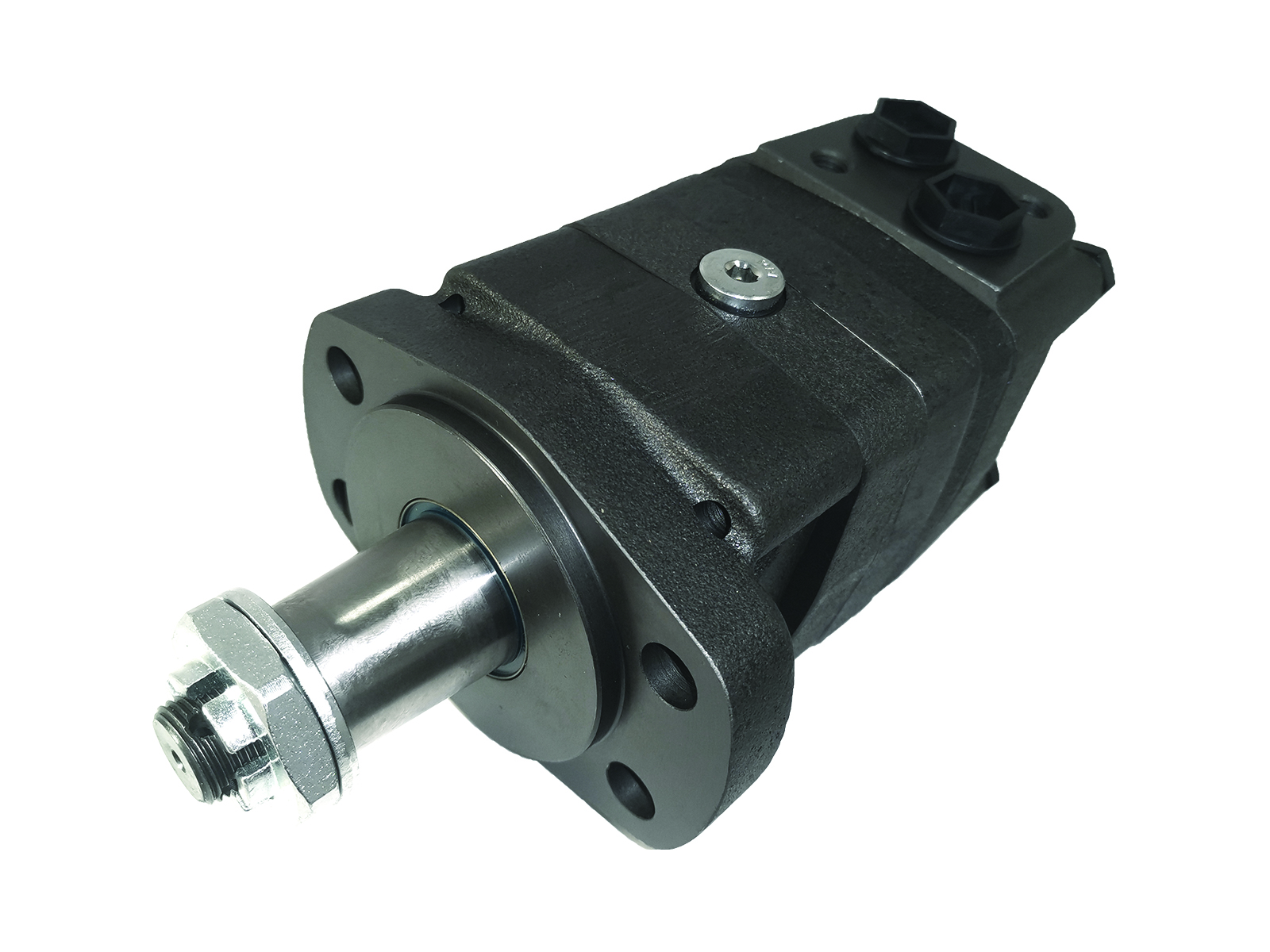

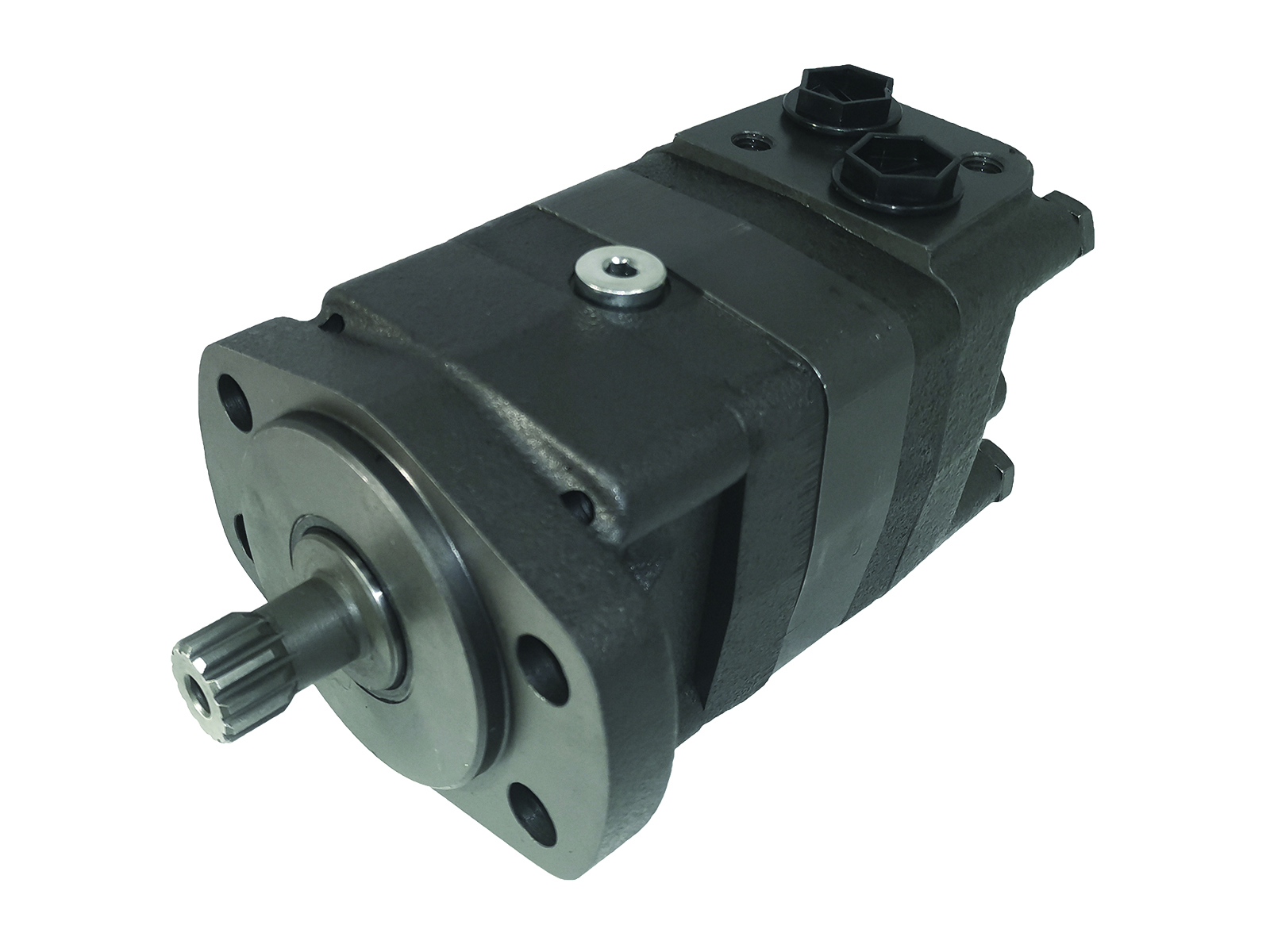

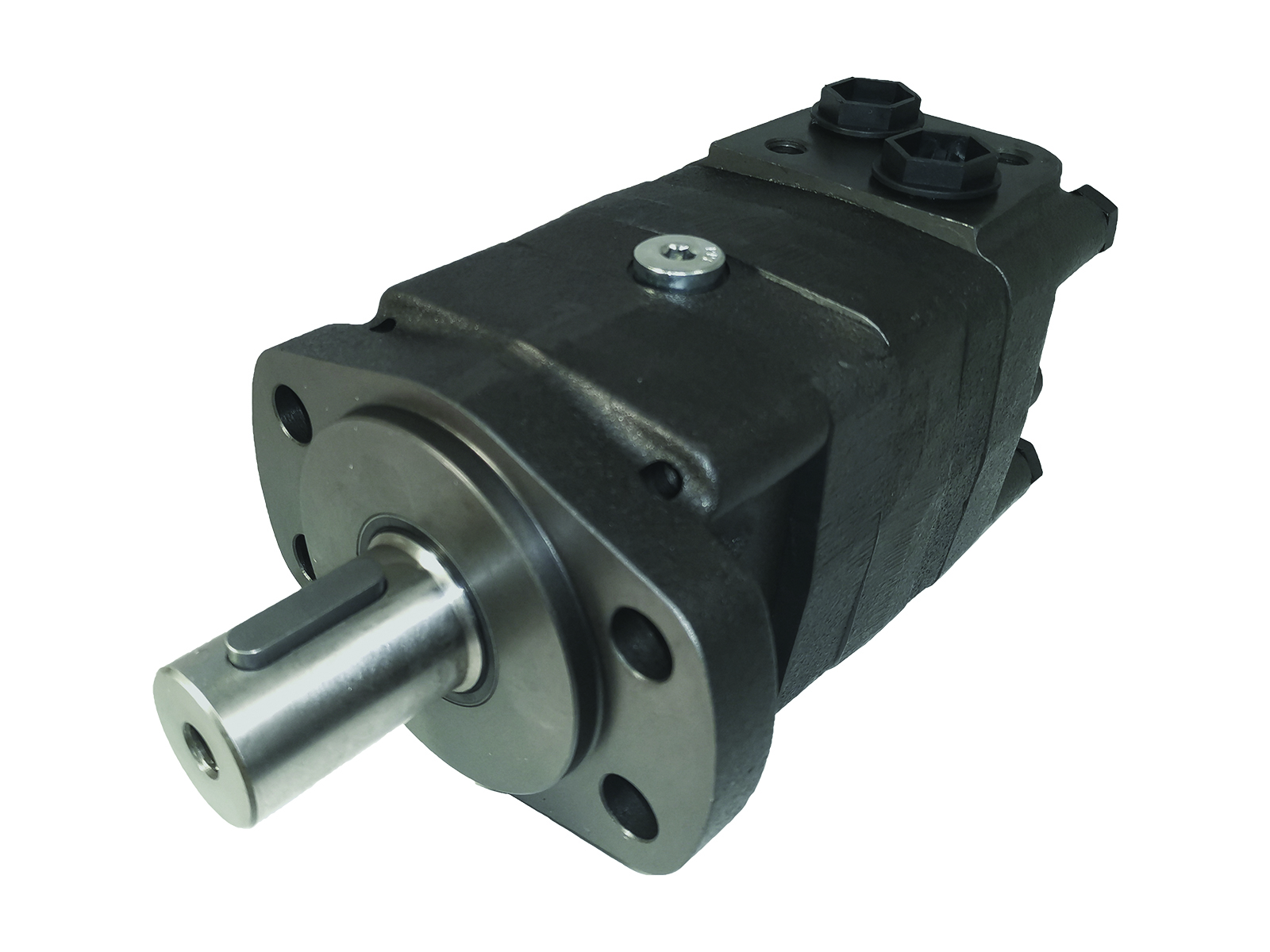

Orbital motors M+S MS series

Orbital motors M+S MS series

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Displacement Shaft diameter Shaft type Continuous power max.
EPMSYF315SHLL Motor M+S 315cc G1/2 314.9 cm3 15 kW
EPMSYF315SHRLL Motor M+S 315cc G1/2, Hö 314.9 cm3 31,75 mm Spline 15 kW
EPMSYF400SHLL Motor M+S 400cc G1/2 397 cm3 31,75 mm Spline 11 kW
MS100C Hydraulimoottori 100cm³/r SAE A-4 100 cm3 32 mm Cylindrical 18 kW
MS100K Hydraulimoottori 100cm³/r 100 cm3 35 mm Tapered 18 kW
MS100SH Hydraulimoottori 100cm³/r SAE A-4 100 cm3 31,75 mm Spline 18 kW
MS100SL MS100SL 100 cm3 34,85 mm Spline 18 kW
MS125C Hydraulimoottori 125,7cm³/r 125.7 cm3 32 mm Cylindrical 18 kW
MS125K Hydraulimoottori 125,7cm³/r 125 cm3 35 mm Tapered 18 kW
MS125SH Hydraulimoottori 125,7cm³/r SAE A-4 125.7 cm3 31,75 mm Spline 18 kW
MS125SL MS125SL 125.7 cm3 34,85 mm Spline 18 kW
MS160C Hydraulimoottori 159,7cm³/r 159.7 cm3 32 mm Cylindrical 16.5 kW
MS160CO MS160CO 159.7 cm3 31,75 mm Cylindrical 16.5 kW
MS160K Hydraulimoottori 159,7cm³/r 159.7 cm3 35 mm Tapered 16.5 kW
MS200C Hydraulimoottori 200cm³/r SAE A-4 200 cm3 32 mm Cylindrical 16.5 kW
MS200K Hydraulimoottori 200cm³/r 200 cm3 35 mm Tapered 16.5 kW
MS250C Hydraulimoottori 250cm³/r 250 cm3 32 mm Cylindrical 14.5 kW
MS250K Hydraulimoottori 250cm³/r 250 cm3 35 mm Tapered 14.5 kW
MS315C Hydraulimoottori 314,9cm³/r 314.9 cm3 32 mm Cylindrical 15 kW
MS315KLL Hydraulimoottori 314,9cm³/r SAE A-4 314.9 cm3 35 mm Tapered 15 kW
MS315SH Hydraulimoottori 314,9cm³/r SAE A-4 314.9 cm3 31,75 mm Spline 15 kW
MS400CULLP/4 Motor M+S 400cc cyl32 SAE-A 397 cm3 32 mm Cylindrical 11 kW
MS400KLL Hydraulimoottori 397cm³/r 397 cm3 35 mm Tapered 11 kW
MS475C Hydraulimoottori 474,6cm³/r 474.6 cm3 32 mm Cylindrical 8.4 kW
MS525SH Hydraulimoottori 397cm³/r SAE A-4 522.7 cm3 31,75 mm Spline 7.6 kW
MS80C Hydraulimoottori 80,5cm³/r SAE A-4 80.5 cm3 32 mm Cylindrical 15.5 kW
MS80K Hydraulimoottori 80,5cm³/r 80.5 cm3 35 mm Tapered 15.5 kW
MS80SH Hydraulimoottori 80,5cm³/r SAE A-4 80.5 cm3 31,75 mm Spline 15.5 kW
MSA125C MSA125C 125.7 cm3 32 mm Cylindrical 18 kW
MSA125K MSA125K 125.7 cm3 35 mm Tapered 18 kW
MSA125SH MSA125SH 125.7 cm3 31,75 mm Spline 18 kW
MSA200SH Hydraulimoottori 200cm³/r SAE A-2 200 cm3 31,75 mm Spline 16.5 kW
MSA250CA Hydraulic motor 250cm³/r 250 cm3 25 mm Cylindrical 14.5 kW
MSE125CRS/4 MSE125CRS/4 125.7 cm3 32 mm Cylindrical 18 kW
MSE250C MSE250C 250 cm3 32 mm Cylindrical 14.5 kW
MSF125K MSF125K 125.7 cm3 35 mm Tapered 18 kW
MSF160CO/4 MSF160CO/4 159.7 cm3 31,75 mm Cylindrical 16.5 kW
MSF160SA/4 MSF160SA/4 159.7 cm3 22 mm Spline 16.5 kW
MSF160SHP Motor M+S 160cc, Spl 31.75 159.7 cm3 31,75 mm Spline 16.5 kW
MSF200SH MSF200SH 200 cm3 31,75 mm Spline 16.5 kW
MSF250C Hydraulimoottori 250cm³/r Ovaali 250 cm3 32 mm Spline 14.5 kW
MSF250CA Hydraulimoottori, 250cm³/r 250 cm3 25 mm Spline 14.5 kW
MSF315C Hydraulimoottori 314,9cm³/r 314.9 cm3 32 mm Spline 15 kW
MSF315CA Hydraulimoottori, 314,9cm³/r 314.9 cm3 25 mm Spline 15 kW
MSF400SHLL Hydraulimoottori 397cm³/r ovaali 397 cm3 31,75 mm Spline 11 kW
MSFE315C/4 MSFE315C/4 314.9 cm3 32 mm Cylindrical 15 kW
MSQ160C MSQ160C 159.7 cm3 32 mm Cylindrical 16.5 kW
MSQ160CO/4 MSQ160CO/4 159.7 cm3 31,75 mm Cylindrical 16.5 kW
MSQ160K/4 MSQ160K/4 159.7 cm3 35 mm Tapered 16.5 kW
MSQ160SH/4 MSQ160SH/4 159.7 cm3 31,75 mm Spline 16.5 kW
MSQ160SL/4 MSQ160SL/4 159.7 cm3 34,85 mm Spline 16.5 kW
MSQ200SH MSQ200SH 200 cm3 31,75 mm Spline 16.5 kW
MSQ250CU MSQ250CU 250 cm3 32 mm Cylindrical 14.5 kW
MSQ400C Hydraulimoottori 397cm³/r 4-pultti 397 cm3 32 mm Cylindrical 11 kW
MSQE125SHU Hydraulimoottori 125,7cm³/r 4-pultti 125.7 cm3 31,75 mm Spline 18 kW
MSQE160SHU Hydraulimoottori 159,7cm³/r 4-pultti 159.7 cm3 31,75 mm Spline 16.5 kW
MSS125 MOTOR*****M+S 125cc 100 "SHOR 125.7 cm3 Spline 18 kW
MSS160 Hydraulimoottori 159,7cm³/r 159.7 cm3 Spline 16.5 kW
MSS200 MOTOR **** M+S 200cc 100 "SHOR 200 cm3 Spline 16.5 kW
MSS250 MOTOR **** M+S 250cc 100 "SHOR 250 cm3 Spline 14.5 kW
MSS315P Motor M+S 315cc 100 Short G182 314.9 cm3 Spline 15 kW
MSS400 Hydraulimoottori 397cm³/r 397 cm3 Spline 11 kW
MSS80 MOTOR M+S 80cc 100 SHORT G1/2 80.5 cm3 Spline 15.5 kW
MSU100P Hydraulimoottori 100cm3/r SL 100 cm3 Spline 18 kW
MSU125 MSU125 125.7 cm3 Spline 18 kW
MSU200 MSU200 200 cm3 Spline 16.5 kW
MSV125 Hydraulimoottori 125,7cm3/r SL 125.7 cm3 Spline 18 kW
MSW100CU Hydraulimoottori 100cm³/r 100 cm3 32 mm Cylindrical 18 kW
MSW100CU-SG MSW100CU-SG 100 cm3 32 mm Cylindrical 18 kW
MSW125C Hydraulimoottori 125,7cm³/r 125.7 cm3 32 mm Cylindrical 18 kW
MSW125K Hydraulimoottori 125,7cm³/r 125.7 cm3 35 mm Tapered 18 kW
MSW125SH MSW125SH 125.7 cm3 31,75 mm Spline 18 kW
MSW160C Hydraulimoottori 159,7cm³/r 159.7 cm3 32 mm Cylindrical 16.5 kW
MSW160KULSVPC/4 Motor M+S 160cc 1:10 159.7 cm3 35 mm Tapered 16.5 kW
MSW160SH MSW160SH 159.7 cm3 31,75 mm Spline 16.5 kW
MSW200C Hydraulimoottori 200cm³/r 200 cm3 32 mm Cylindrical 16.5 kW
MSW200KLSV Hydraulimootori 200,0 cm³/r 200 cm3 35 mm Tapered 16.5 kW
MSW250CU Hydraulimoottori 250cm³/r 250 cm3 32 mm Cylindrical 14.5 kW
MSW250K Motor M+S 250cc 1:10 125, 250 cm3 35 mm Tapered 14.5 kW
MSW250KULLP Hydraulimoottori 250cm³/r Wheel 250 cm3 35 mm Tapered 14.5 kW
MSW315KULL Hydraulimoottori 314,9cm³/r 314.9 cm3 35 mm Tapered 15 kW
MSW400C Hydraulimoottori 397cm³/r 397 cm3 32 mm Cylindrical 11 kW
MSW80CU Hydraulimoottori 80,5cm³/r 80.5 cm3 32 mm Cylindrical 15.5 kW
MSW80K MOTOR M+S 80cc **** 1:10 125 4 80.5 cm3 35 mm Tapered 15.5 kW
MSWM315KULLP MSWM315KULLP Hydraulic wheel motor 314.9cm³/r 314.9 cm3 35 mm Tapered 15 kW
Brand Name
Hydraspecma
Contamination level max.
-/20/16 - ISO 4406
Filtration degree
25
Oil viscocity recommended
20 - 75
Temperature max.
+82
Temperature min.
-40
Working ports
G 1/2
