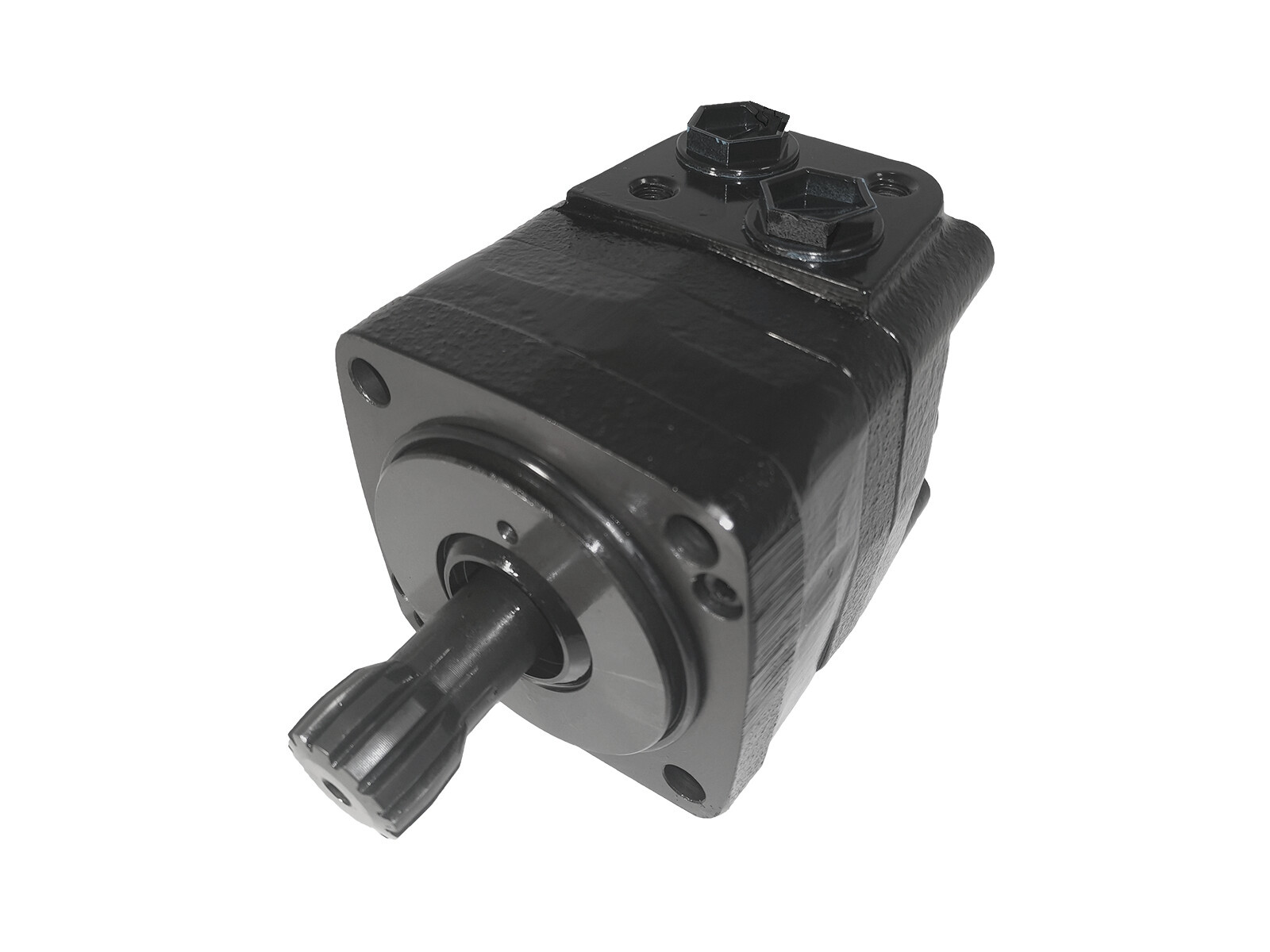

MSU200
Partnumber:
MSU200
Package size:
1 kpl
Min. order quantity is:
1 kpl
Brand Name
Hydraspecma
Contamination level max.
-/20/16 - ISO 4406
Continuous power max.
16.5 kW
Continuous rotation max.
375 rpm
Displacement
200 cm3
Filtration degree
25 my
Holes circle
104 mm
Mounting flange
Short 75
Number of mounting holes
4
Oil viscocity recommended
20 - 75 cSt
Port position
Side
Pressure drop continuous max.
210 bar
Recess
75,0 mm
Shaft type
Spline
Temperature max.
+82 °C
Temperature min.
-40 °C
Torque continuous max.
610 Nm
Working ports
G 1/2 BSP
Package size
1 kpl
Barcode
401746
Gross weight
7,10 Kg
Net weight
7,10 Kg
Country of origin
BG
