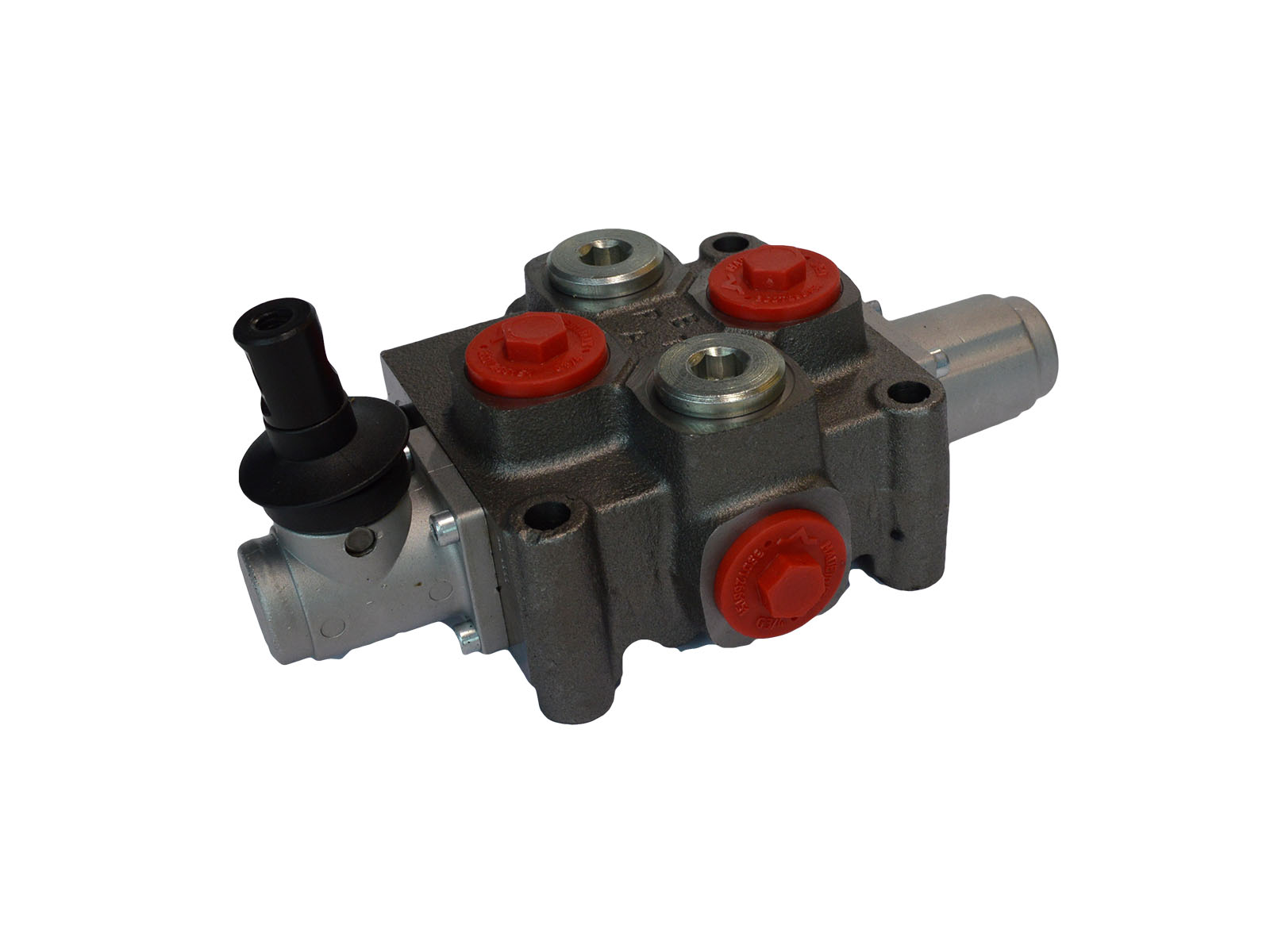

Directional valves Q95

Directional valves Q95

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Pressure max. Flow rate nominal LMin
Q95-1N-01 Q95-F1S(N)101/A1/M1-F3D 350 bar 95 lpm
Q95-1N-03 Q95-F1S(N)103/A1/M1-F3D 350 bar 95 lpm
Q95-1N-11 Q95-F1S(N)111/A1/M1-F3D 350 bar 95 lpm
Q952-1N-0303 Q95-F1S(N)-2x103/A1/M1-F3D 350 bar 95 lpm
Q953-1N-030303 Q95-F1S(N)-3x103/A1/M1-F3D 350 bar 95 lpm
Brand Name
Walvoil
Contamination level max.
-/26/23 - ISO 4406
Flow rate nominal LMin
95
Lever
Exclusive
Material
Cast iron
Oil viscocity recommended
10 - 400
Port P1
G 3/4
Port P2
G 3/4
Port T1
G 3/4
Port T2
G 3/4
Pressure T max.
25
Pressure carry-over
No
Pressure max.
350
Pressure relief valve
Yes
Pressure setting max.
280
Pressure setting min.
30
Temperature max.
+80
Temperature min.
-30
Working ports
G 3/4
