Q95-F1S(N)103/A1/M1-F3D

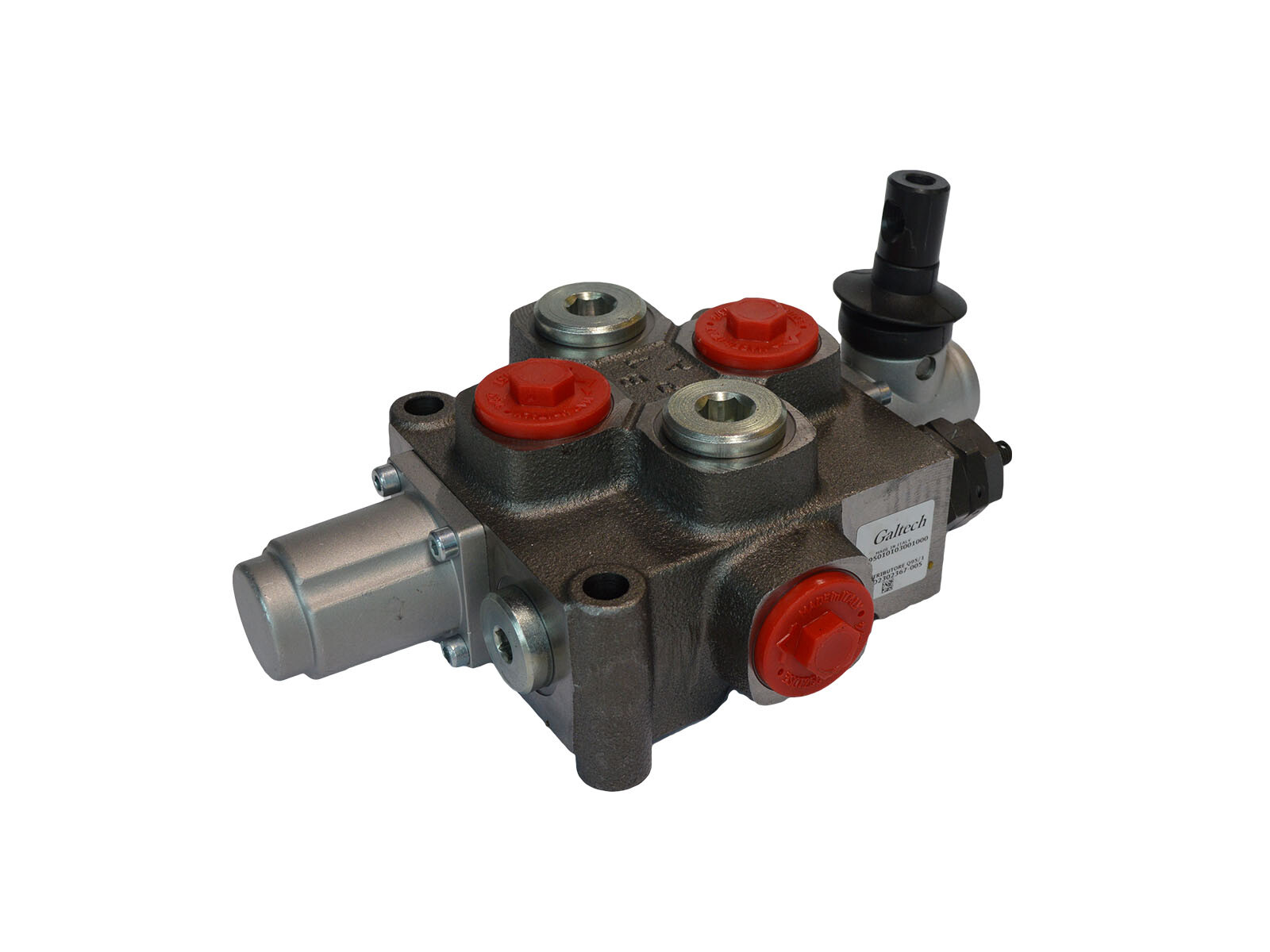

1-section Q95 monoblock directional valve with built-in pressure relief valve and one spool. Manually activated
Spool function: Double acting with port A and B closed in neutral position. Spring centered.
Open center port P to T in neutral position.
Partnumber:
Q95-1N-03
Package size:
1 pcs
Min. order quantity is:
1 pcs
Antal sektioner
1
Arbetsportar
G 3/4 BSP
Flödeshastighet nominell LMin
95 lpm
Föroreningsgrad max.
-/26/23 - ISO 4406
Handtag
Exclusive
Modell kod
Q95-F1S(N)-103/A1/M1-F3D
Märke namn
Walvoil
Oljeviskositet rekommanderad
10 - 400 cSt
Port P1
G 3/4 BSP
Port P2
G 3/4 BSP
Port T1
G 3/4 BSP
Port T2
G 3/4 BSP
Temperatur max.
+80 °C
Temperatur min.
-30 °C
Tillverkningsmaterial
Cast iron
Tryck T max.
25 bar
Tryck max.
350 bar
Tryckbegränsningsventil
Yes
Tryckinställning max.
280 bar
Tryckinställning min.
30 bar
Tryckvidereföring
No
Package size
1 pcs
Barcode
406126
Gross weight
5,57 Kg
Net weight
5,57 Kg
Country of origin
ITA
Intrastat code
84812010
1-section Q95 monoblock directional valve with built-in pressure relief valve and one spool. Manually activated
Spool function: Double acting with port A and B closed in neutral position. Spring centered.
Open center port P to T in neutral position.
