Directional valves Q75

Q75/2E-F1SN-2X103/A1/D41-F3D

Q75M/1-F1S-103/A1/M1-F3D

Q75M/1-F1S-111/A1/M1-F3D

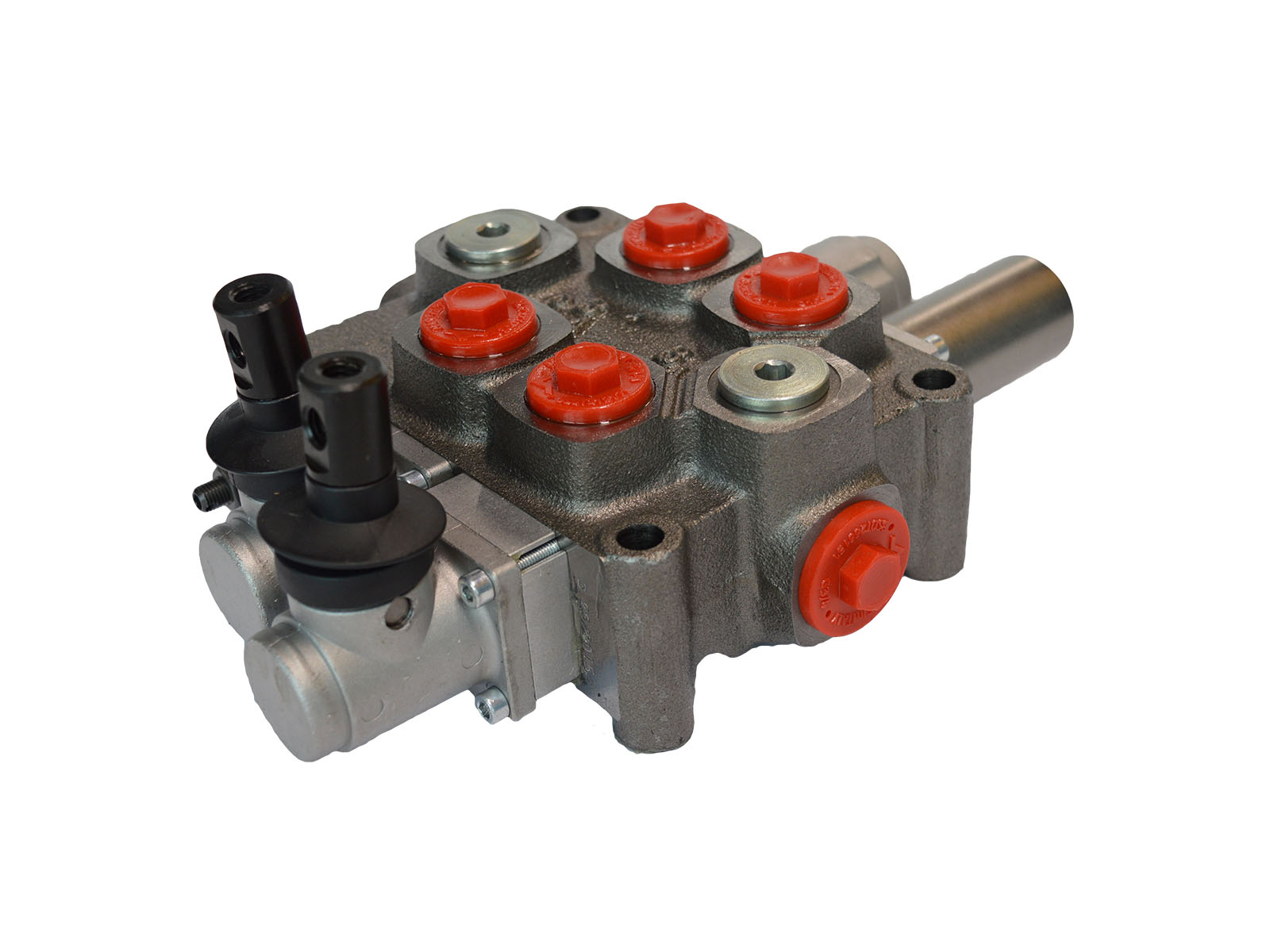

Q75M/2-F1S-2x103/A1/M1-F3D

Q75/E2-F1SN-103/A1M1-116/Z1R8-F3D

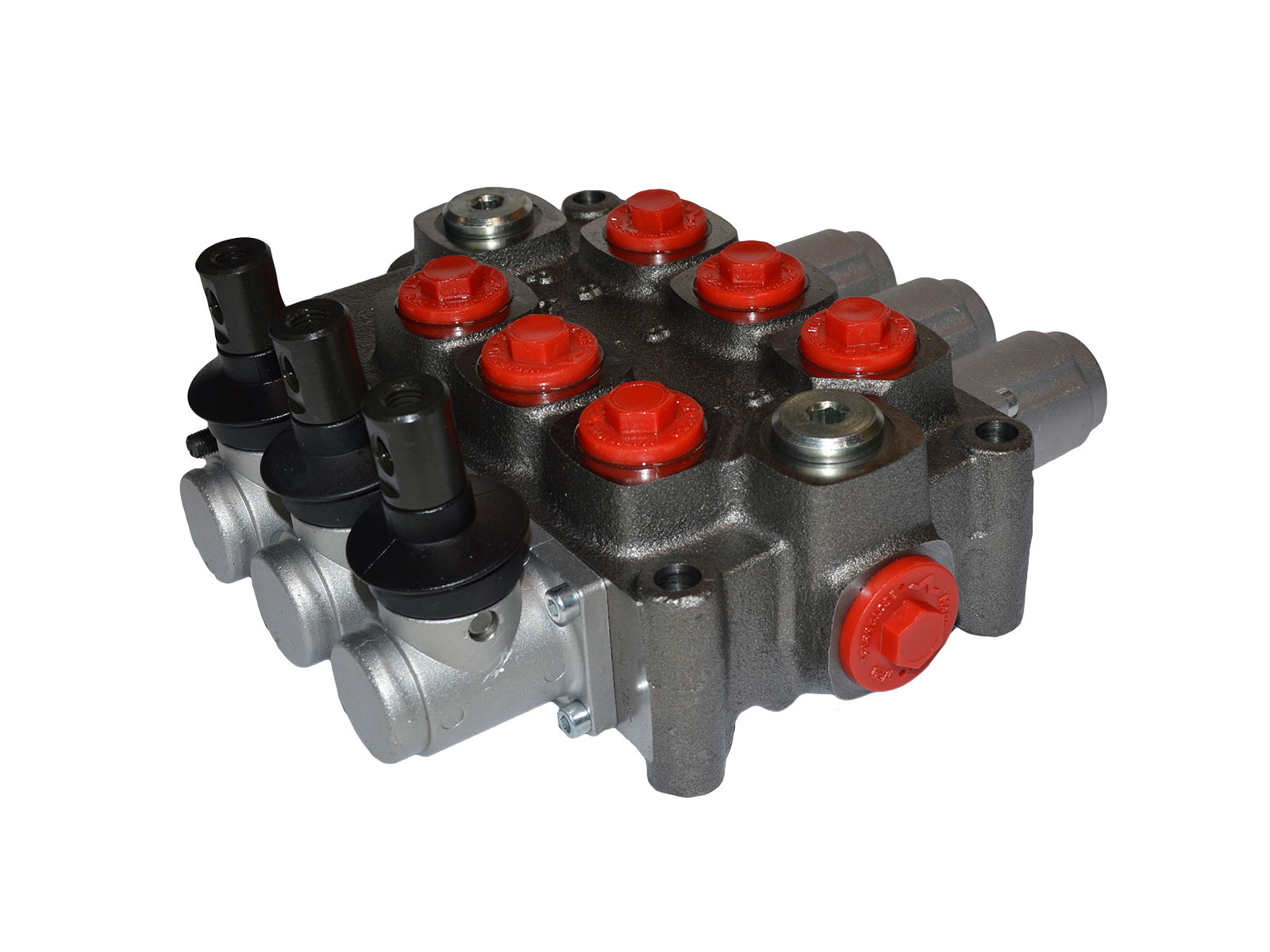

Q75M/3-F1S-3x103/A1/M1-F3D

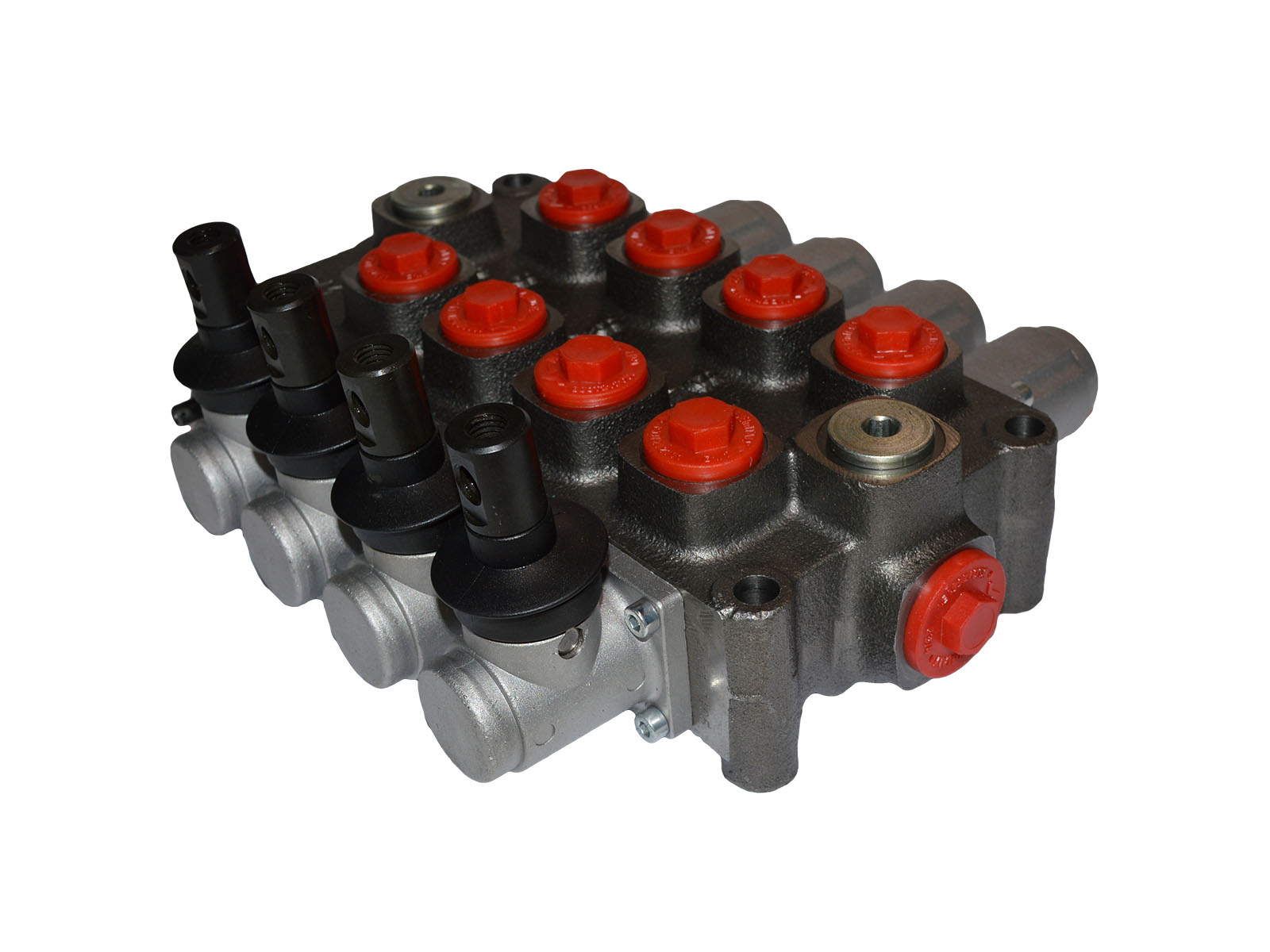

Q75M/4-F1S-4x103/A1/M1-F3D

SELECT VARIANT

Partnumber	Description	Pressure max.	Flow rate nominal LMin
Q75/2X03D	Q75/2E-F1SN-2X103/A1/D41-F3D	350 bar	80 lpm
Q751-1N-03	Q75M/1-F1S-103/A1/M1-F3D	350 bar	75 lpm
Q751-1N-11	Q75M/1-F1S-111/A1/M1-F3D	350 bar	75 lpm
Q752-1N-0303	Q75M/2-F1S-2x103/A1/M1-F3D	350 bar	75 lpm
Q752-1N-0316	Q75/E2-F1SN-103/A1M1-116/Z1R8-F3D
Q753-1N-030303	Q75M/3-F1S-3x103/A1/M1-F3D	300 bar	75 lpm
Q754-1N-03030303	Q75M/4-F1S-4x103/A1/M1-F3D	270 bar	75 lpm

Brand Name

Walvoil

Contamination level max.

16/14/12 - ISO 4406

Lever

Exclusive

Oil viscocity recommended

10 - 400

Pressure T max.

Temperature max.

+80

Temperature min.

-30
