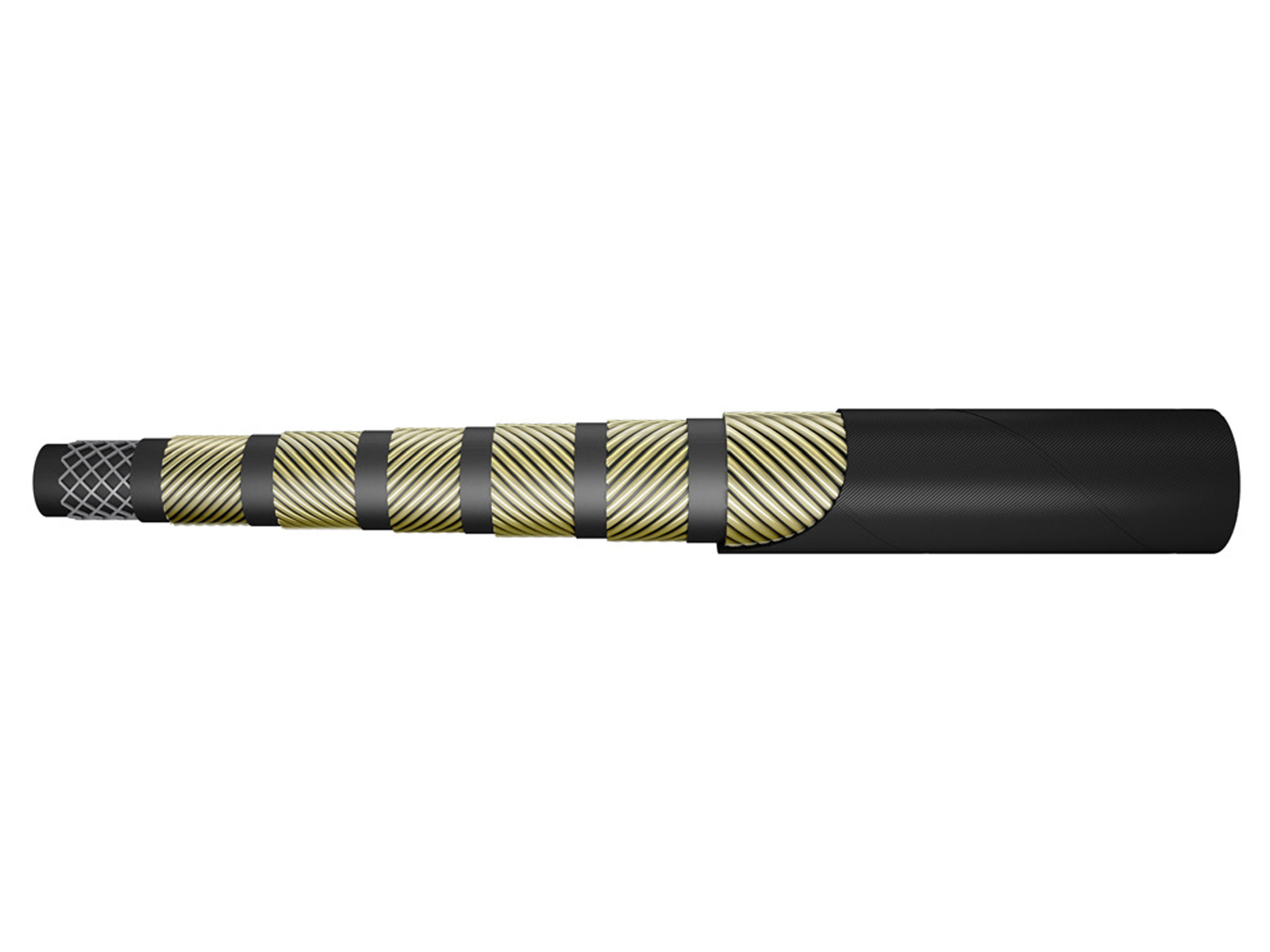

TFS15R hydraulic hoses

TFS15R hydraulic hoses

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Hose size Pressure max. Hose type Bend radius
R15-16 Hydraulslang R15 1'', SAE100R15 ISO3862 WP 420 bar 1 " 420 bar R15 265 mm
R15-20 Hydraulslang R15 1.1/4'', SAE100R15 ISO3862 WP 420 bar 1.1/4 " 420 bar R15 265 mm
R15-32 Hypress R15 hose 2 420 bar SAE100 R15 2 " 420 bar R15 590 mm
Brand Name
I.M.M Hydraulics
Flameresistant
Yes
Hose type
R15
Hoseapprovals
BV, MSHA
Pressure burst min.
1680
Pressure max.
420
REACH compliant
Yes
RoHs compliant
Yes
Standard ISO
ISO 3862 R15
Standard SAE
SAE 100R15
Temperature intermittent max.
+120
Temperature max.
+100
Temperature min.
-40
