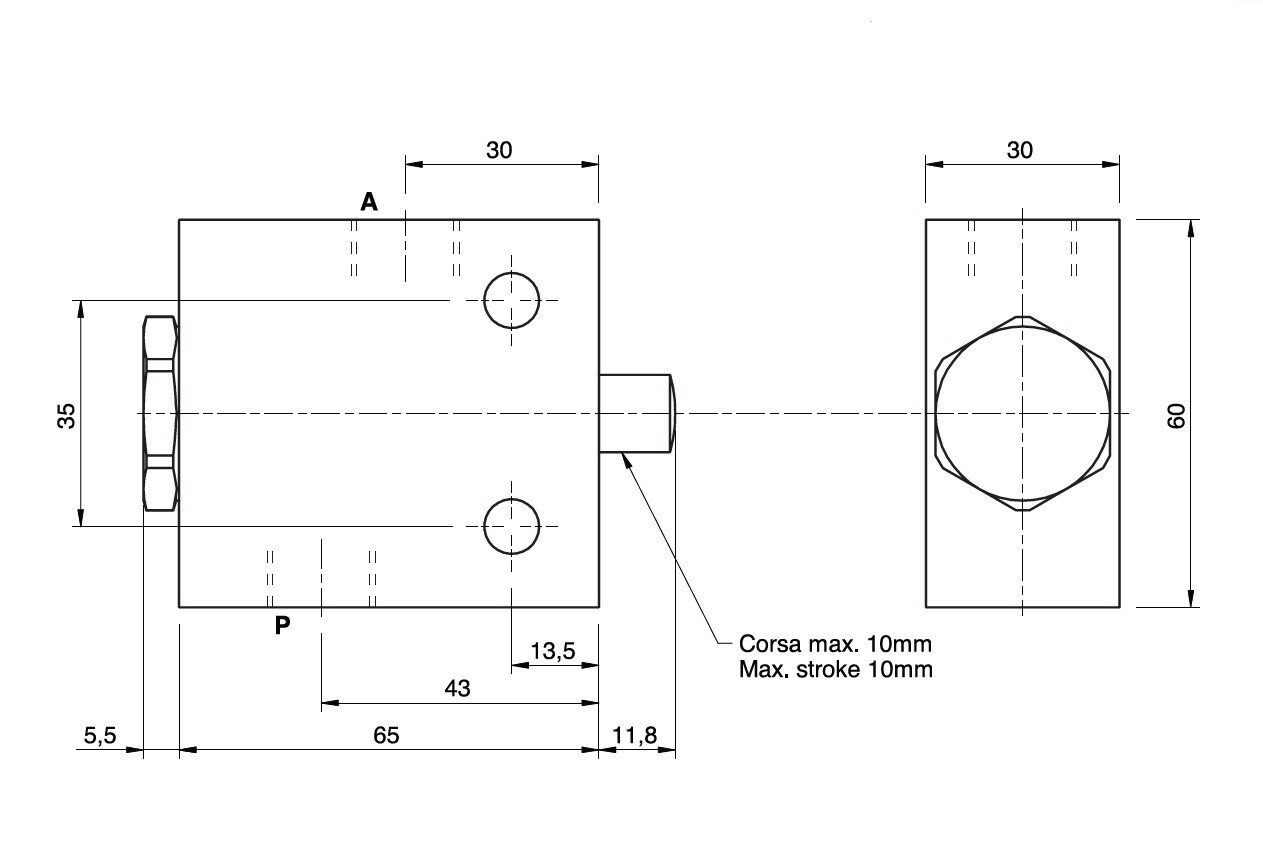

3/8" Endstroke valve NC double locked
OPERATION AND OPERATION:
This valve is used to open the hydraulic circuit inlet line
(valve normally closed).
When the valve latch is mechanically activated, the flow is free from point P to point A.
It can be used mainly:
a) For setting the sequence of two actuators.
b) As a main valve with the flow connected to the reservoir.
As a main valve with the flow connected to the reservoir.
Varenummer:
V1013/8DTNC
Pakke str.:
1 pcs
Min. bestillingsenhed er:
1 pcs
Antal väger/positioner
2/2
Flow max.
30 lpm
Föroreningsgrad max.
19/17/14 - ISO 4406
Gänga
G 3/8 BSP
Modell kod
V-101-3/8" DT NC/closed
Packningsmaterial
NBR
Slaglängd
10 mm
Temperatur max.
+100 °C
Temperatur min.
-20 °C
Tillverkningsmaterial
Steel
Tryck max.
300 bar
Ytskiktbehandling
Electro zinc plated
Package size
1 pcs
Barcode
493094
Gross weight
Kg
Net weight
Kg
Country of origin
ita
Intrastat code
84812010
OPERATION AND OPERATION:
This valve is used to open the hydraulic circuit inlet line
(valve normally closed).
When the valve latch is mechanically activated, the flow is free from point P to point A.
It can be used mainly:
a) For setting the sequence of two actuators.
b) As a main valve with the flow connected to the reservoir.
As a main valve with the flow connected to the reservoir.
