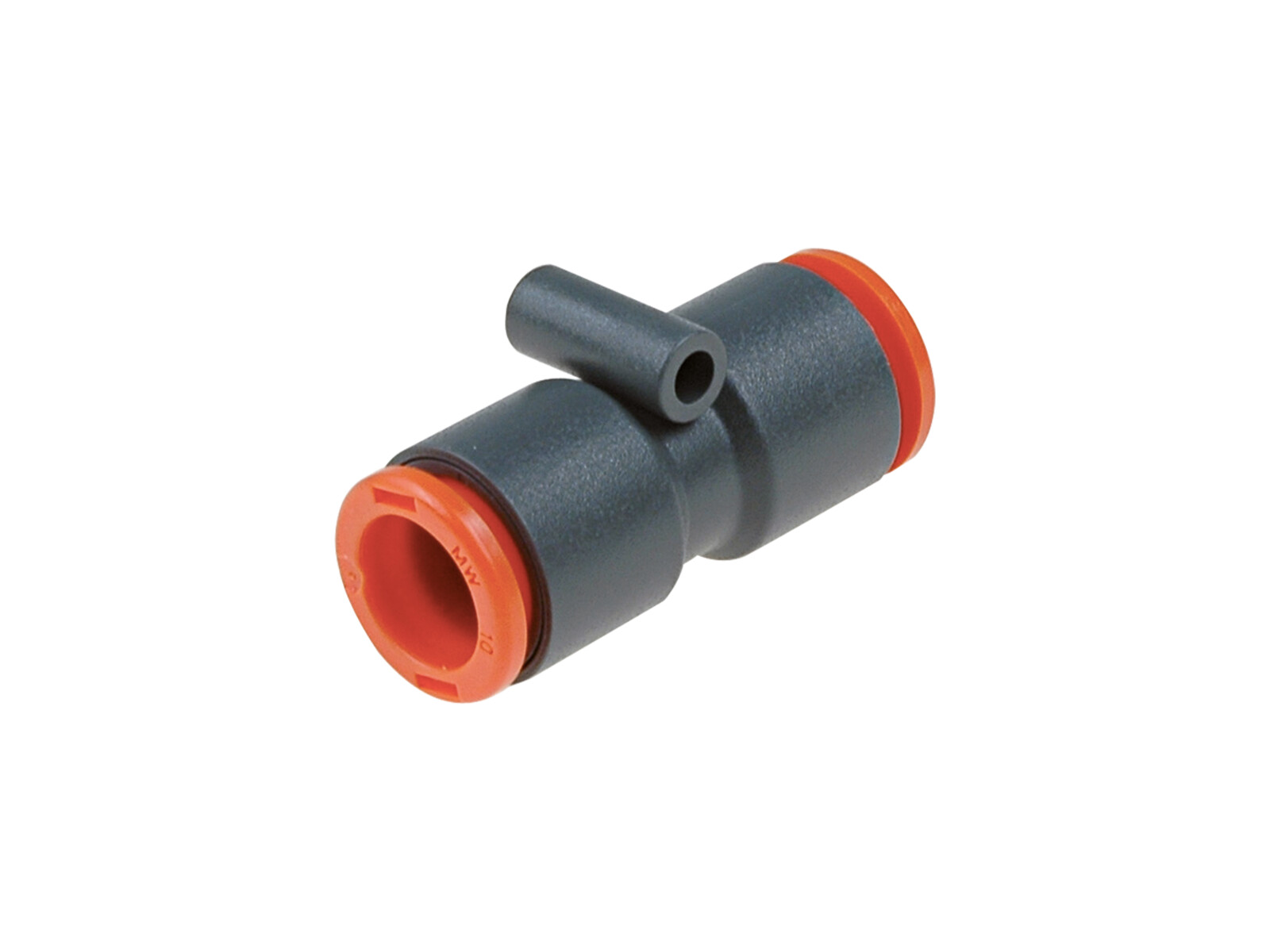

Reducing joint coupling RL19
Ø6mm - Ø4mm
Artikelnummer:
RL190604
Förpackningsstorlek:
1 pcs
Minsta beställningskvantitet:
1 pcs
Angle
0 °
Brand Name
Metal Work

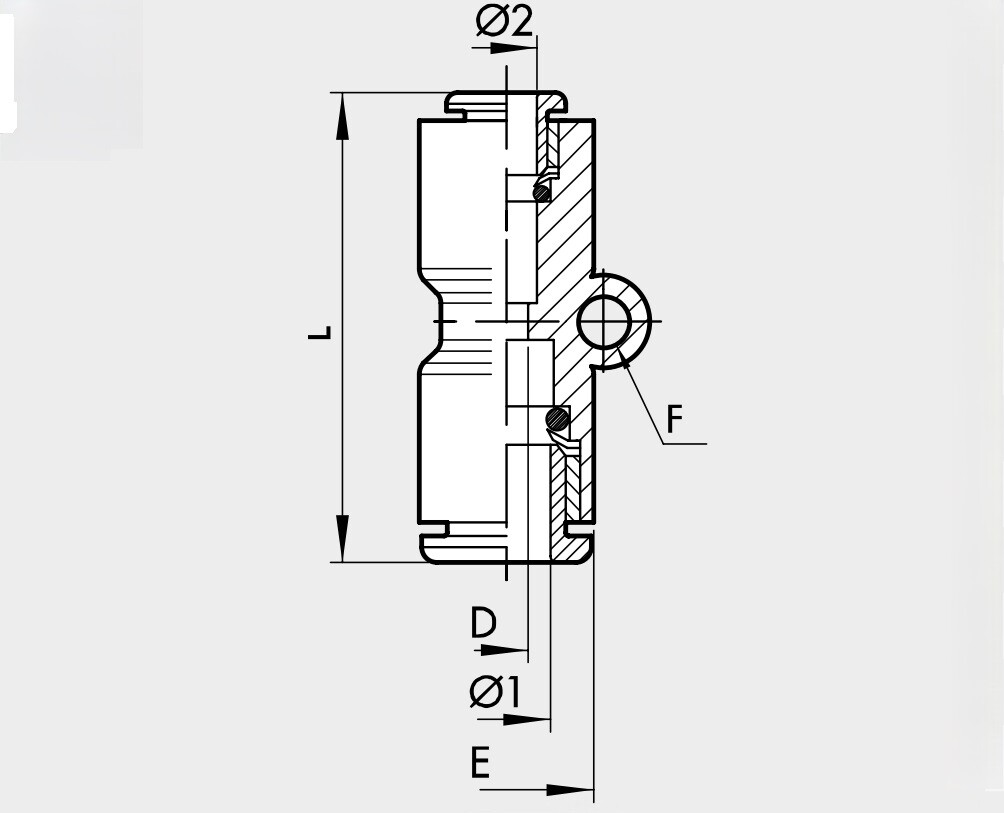

D
3 mm
Diameter pipe 1
6 mm
Diameter pipe 2
4 mm
E
11,3 mm
F
3,3 mm
L
32,7 mm
Material
Technopolymer
Model code
2019303
Pressure max.
12 bar
REACH compliant
Yes
RoHs compliant
Yes
Sealing material
NBR
Temperature max.
+60 °C
Temperature min.
-20 °C
Vacuum max.
-0.9 bar
Ø1
6 mm
Ø2
4 mm
Package size
1 pcs
Barcode
481080
Gross weight
Kg
Net weight
0,004 Kg
Country of origin
ita
Intrastat code
11111111
Ø6mm - Ø4mm
Note: Opening 3D files requires a program that supports the file format
