SVM400/01-B/01V009-00071Ax4-<CRVN-EC2415-LE006A>

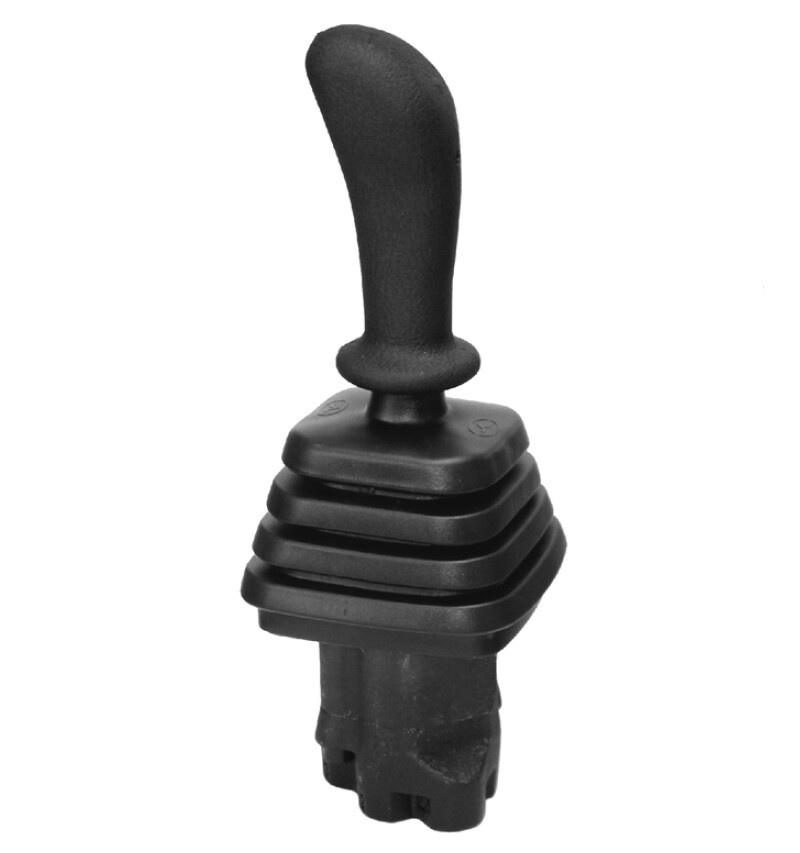

SVM400 - Joystick for piloted control of hydraulic controlled directional valve spools. For 2 double acting functions (4 pilot line connections).
Handlever movement (cross):
Forward and backward: Spool no. 1.
Sideways: Spool no. 2
Spring centered
Handlever without any additional switches
Flow: 5 to 20 l/min.
Piloted pressure: 8.55 to 22.5 bar (Depending of size of handlever movement).
One layer of anti-corrosion primer.
Partnumber:
SVM400/01-B/01V009-00071
Package size:
1 kpl
Min. order quantity is:
1 kpl
Brand Name
Walvoil
Model code
VM400/01-B/01V009-00071Ax4-<CRVN-EC2415-LE006A>
Number of ports
4
Number of sections
2
Pressure T max.
3 bar
Temperature ambient max.
+50 °C
Temperature ambient min.
-20 °C
Thread
G 1/4 BSP
Package size
1 kpl
Barcode
472954
Gross weight
Kg
Net weight
2,50 Kg
Country of origin
ita
Intrastat code
84812010
SVM400 - Joystick for piloted control of hydraulic controlled directional valve spools. For 2 double acting functions (4 pilot line connections).
Handlever movement (cross):
Forward and backward: Spool no. 1.
Sideways: Spool no. 2
Spring centered
Handlever without any additional switches
Flow: 5 to 20 l/min.
Piloted pressure: 8.55 to 22.5 bar (Depending of size of handlever movement).
One layer of anti-corrosion primer.
