SAE välilaippa
3/4", 3000Psi, 3mm
Partnumber:
SPL-302-W1
Package size:
1 pcs
Min. order quantity is:
1 pcs
Brand Name
Stauff

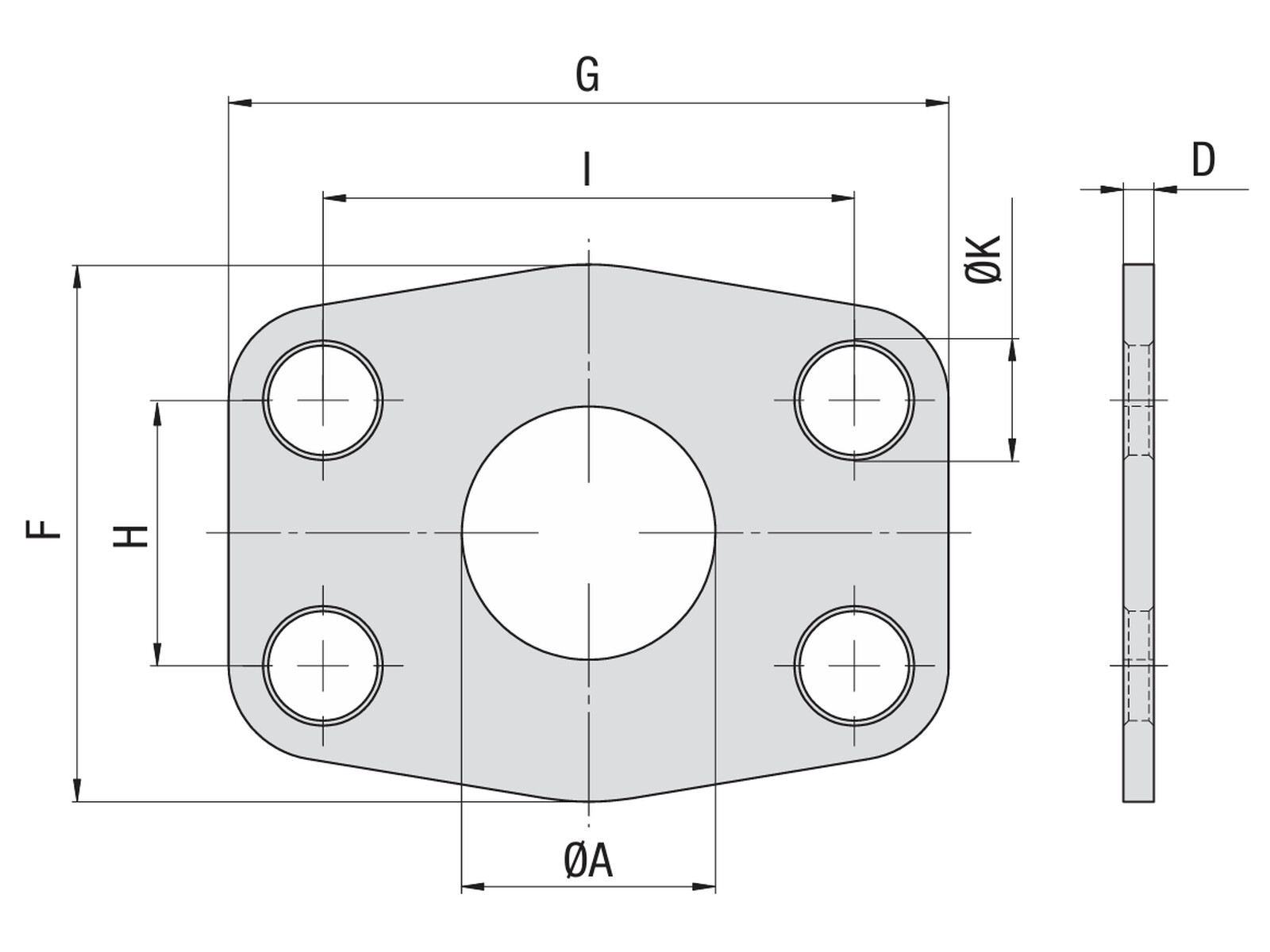

D
3 mm
DN
19 mm
Diameter flange
38.1 mm
F
49 mm
Flange
3/4 "
Flange SAE/DIN
3000 PSI
G
66 mm
H
22,3 mm
I
47,6 mm
Material
Steel
Material thickness
3 mm
Model code
SPL-302-W1
O-ring
24,99X3,53 mm
Shore
90
Standard ISO
ISO 6162-1
Standard SAE
SAE J518 Code 61
Surface treatment
Blank (oiled)
Temperature max.
+120 °C
Temperature min.
-55 °C
ØA
19 mm
ØK
11 mm
Package size
1 pcs
Barcode
408689
Gross weight
0,051 Kg
Net weight
0,051 Kg
Country of origin
deu
3/4", 3000Psi, 3mm
