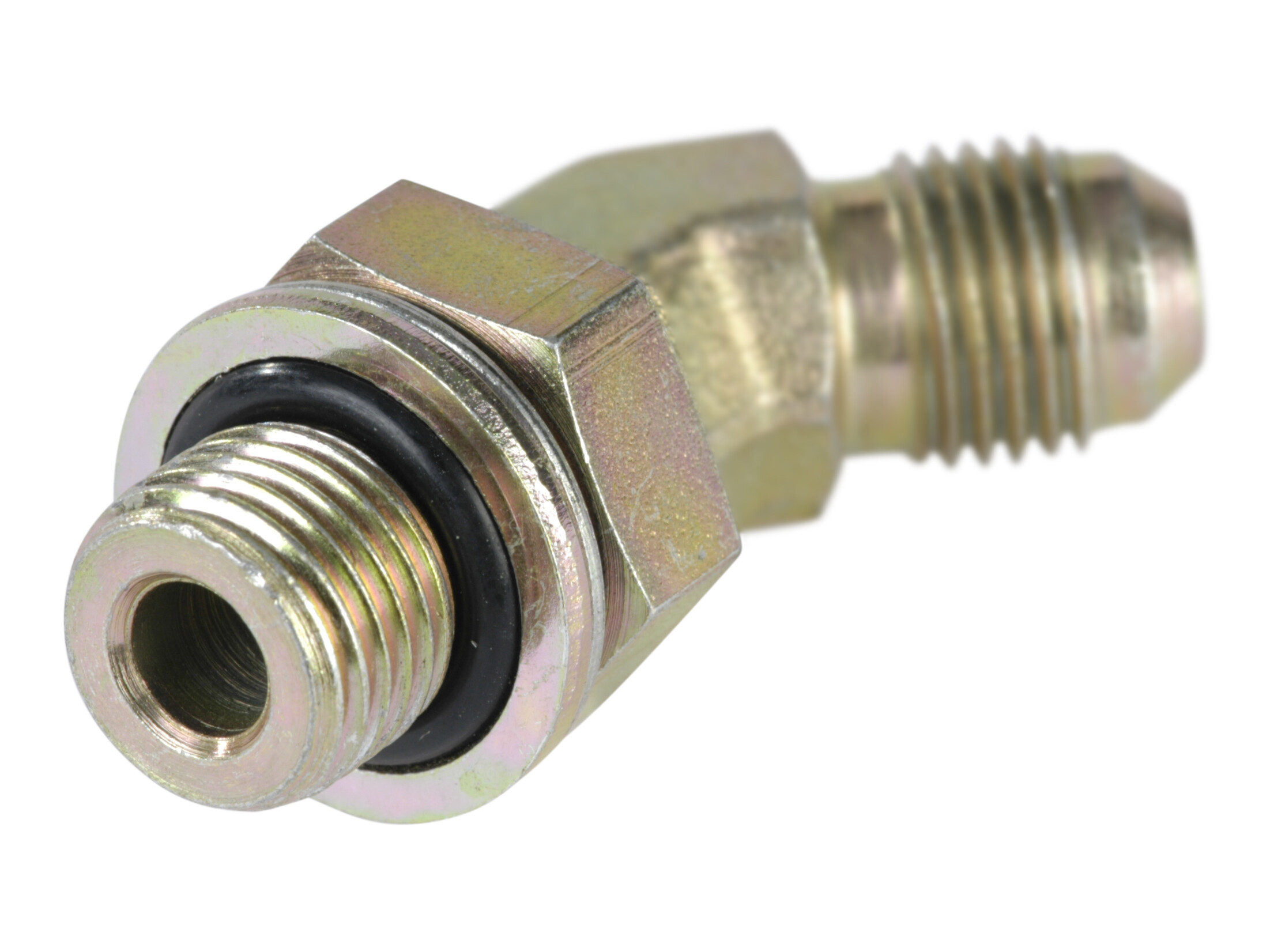

S615-06-13G elbow BSP
-
JIC 37° 45° directional basic connector
- External thread (BSPP)
- O-ring, NBR Shore 85 +5/0 and support ring
- ISO 1179 - for threaded ports
- Operating temperature -20° to +120°
Artikelnummer:
S615-04
Förpackningsstorlek:
150 pcs
Minsta beställningskvantitet:
1 pcs
Angle
45 °
B
21 mm
Brand Name
FOR
C
29 mm
CH
19 mm
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Diameter pipe
6 mm
F
G 1/4 BSP
J
7/16-20 JIC
Material
Steel
Pressure max.
450 bar
Surface treatment
Electro-galvanized / White chromatized
T
6 mm
Thread outer
7/16-20 JIC
Thread outer
G 1/4 BSP
Förpackningsstorlek
150 pcs
Streckkod
407418
Bruttovikt
0,05 Kg
Nettovikt
0,05 Kg
Ursprungsland
ITA
Intrastat artikelkod
73071110
-
JIC 37° 45° directional basic connector
- External thread (BSPP)
- O-ring, NBR Shore 85 +5/0 and support ring
- ISO 1179 - for threaded ports
- Operating temperature -20° to +120°
