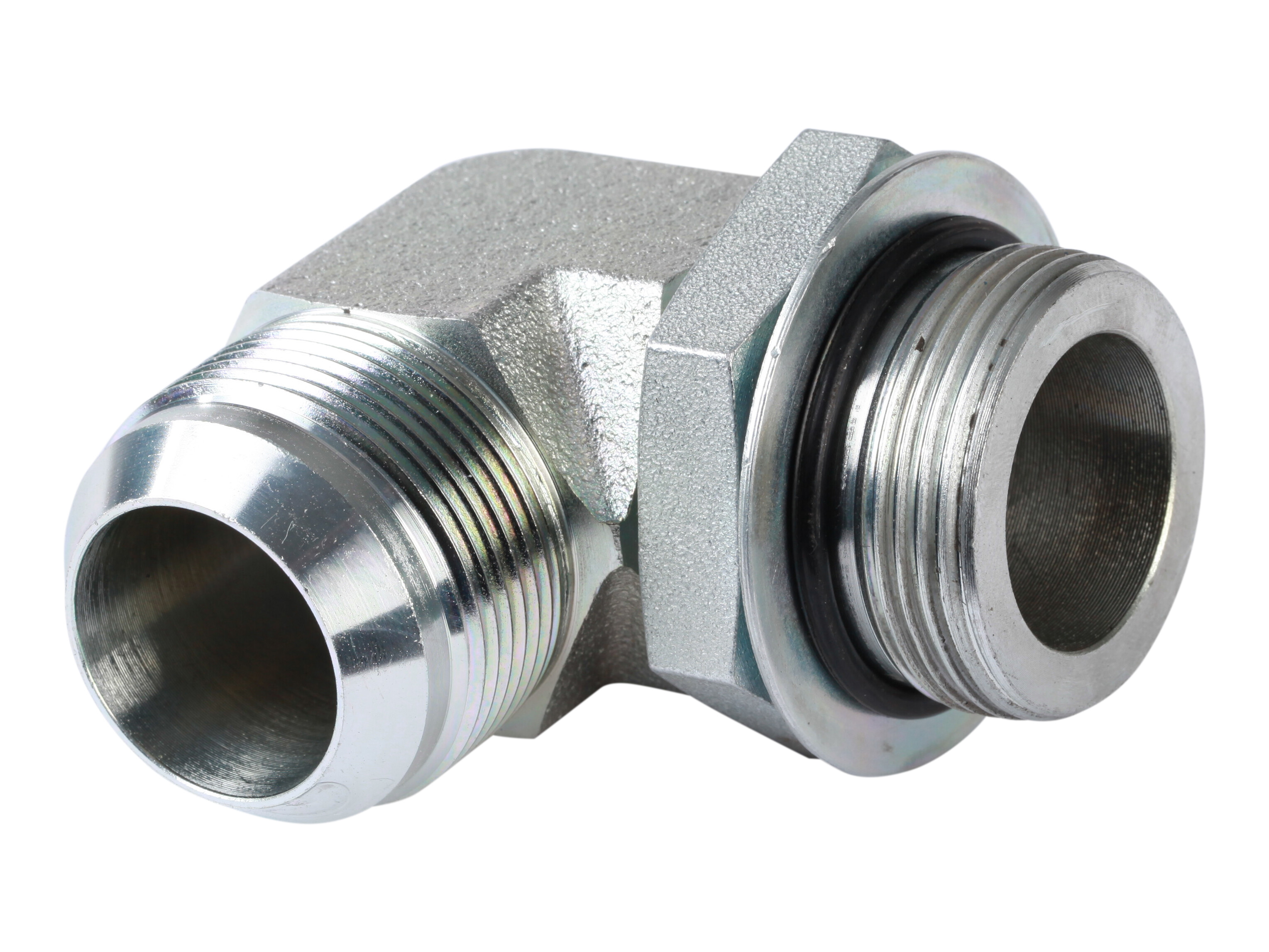

S575-30-41U elbow
-
JIC 37° 90° directional basic connector
- External thread UN
- O-ring, NBR Shore 85 +5/0
- ISO 11926 - for threaded ports
- Operating temperature -20° to +120°
Partnumber:
S575-20
Package size:
3 pcs
Min. order quantity is:
1 pcs
Angle
90 °
B
52 mm
Brand Name
FOR
C
57 mm
CH
50 mm
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Diameter pipe
30-32 mm
F
1.5/8-12 UNF
J
1.5/8-12 JIC
Material
Steel
Model code
A107028/3241
Pressure max.
250 bar
Sealing material
NBR
Standard ISO
ISO 11926
Surface treatment
Electro zinc plated
T
30-32 mm
Temperature max.
+120 °C
Temperature min.
-20 °C
Thread outer
1.5/8-12 JIC
Thread outer
1.5/8-12 UNF
Förpackningsstorlek
3 pcs
Streckkod
407342
Bruttovikt
0,69 Kg
Nettovikt
0,69 Kg
Ursprungsland
ITA
Intrastat artikelkod
73071110
-
JIC 37° 90° directional basic connector
- External thread UN
- O-ring, NBR Shore 85 +5/0
- ISO 11926 - for threaded ports
- Operating temperature -20° to +120°
