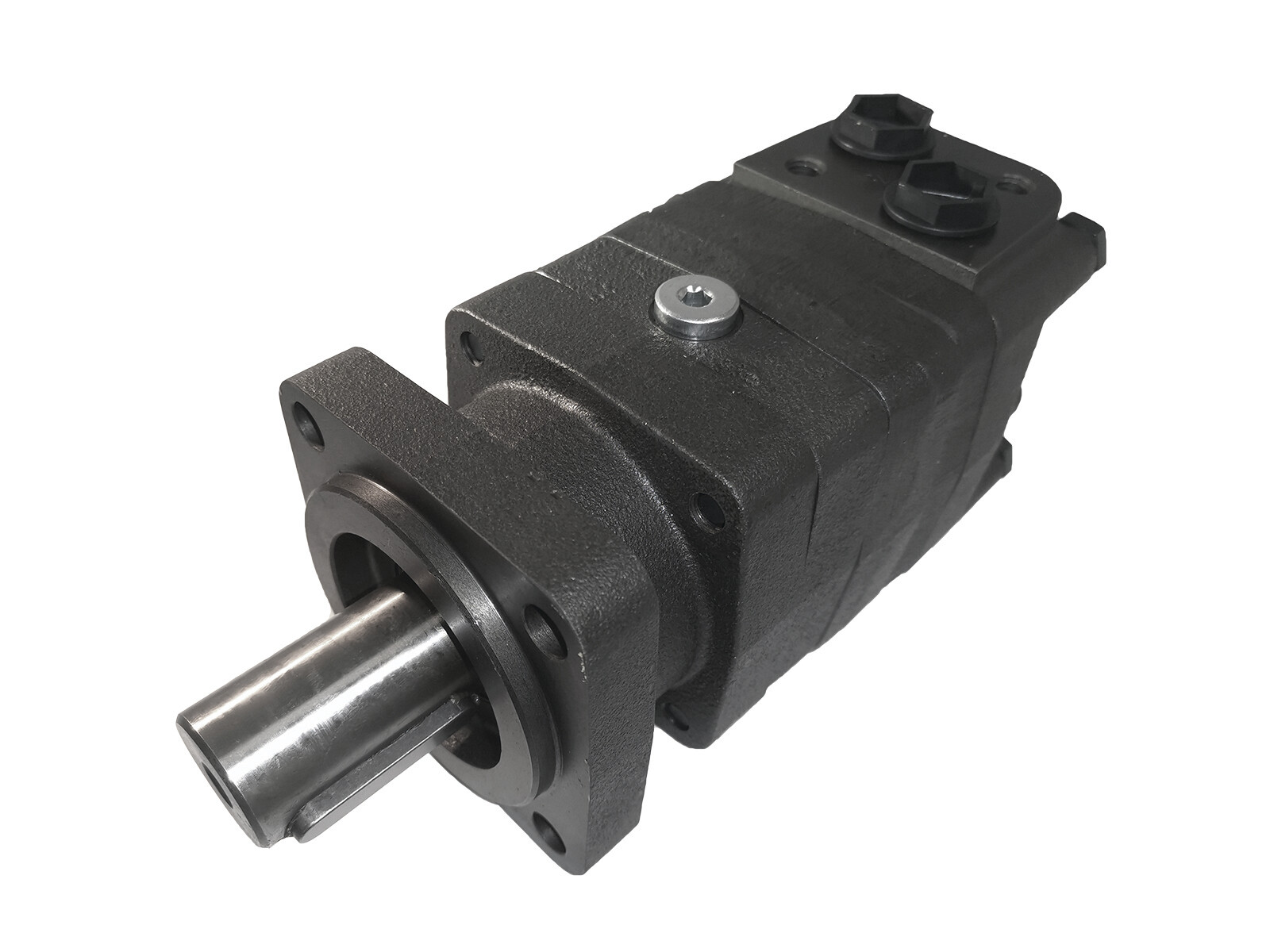

Hydraulimoottori 397cm³/r 4-pultti
Maxj 190r/min 865Nm 32mm akseli
Partnumber:
MSQ400C
Package size:
1 kpl
Min. order quantity is:
1 kpl
Brand Name
Hydraspecma
Contamination level max.
-/20/16 - ISO 4406
Continuous power max.
11 kW
Continuous rotation max.
190 rpm
Displacement
397 cm3
Drainport
G 1/4 BSP
Filtration degree
25 my
Holes circle
106.4 mm
Number of mounting holes
4
Oil viscocity recommended
20 - 75 cSt
Port position
Side
Pressure drop continuous max.
160 bar
Recess
82,5 mm
Shaft Seal Type
Standard shaft seal
Shaft diameter
32 mm
Shaft keyway
10,0 mm
Shaft type
Cylindrical
Temperature max.
+82 °C
Temperature min.
-40 °C
Torque continuous max.
865 Nm
Working ports
G 1/2 BSP
Package size
1 kpl
Barcode
433667
Gross weight
13,70 Kg
Net weight
13,70 Kg
Country of origin
BG
Maxj 190r/min 865Nm 32mm akseli
