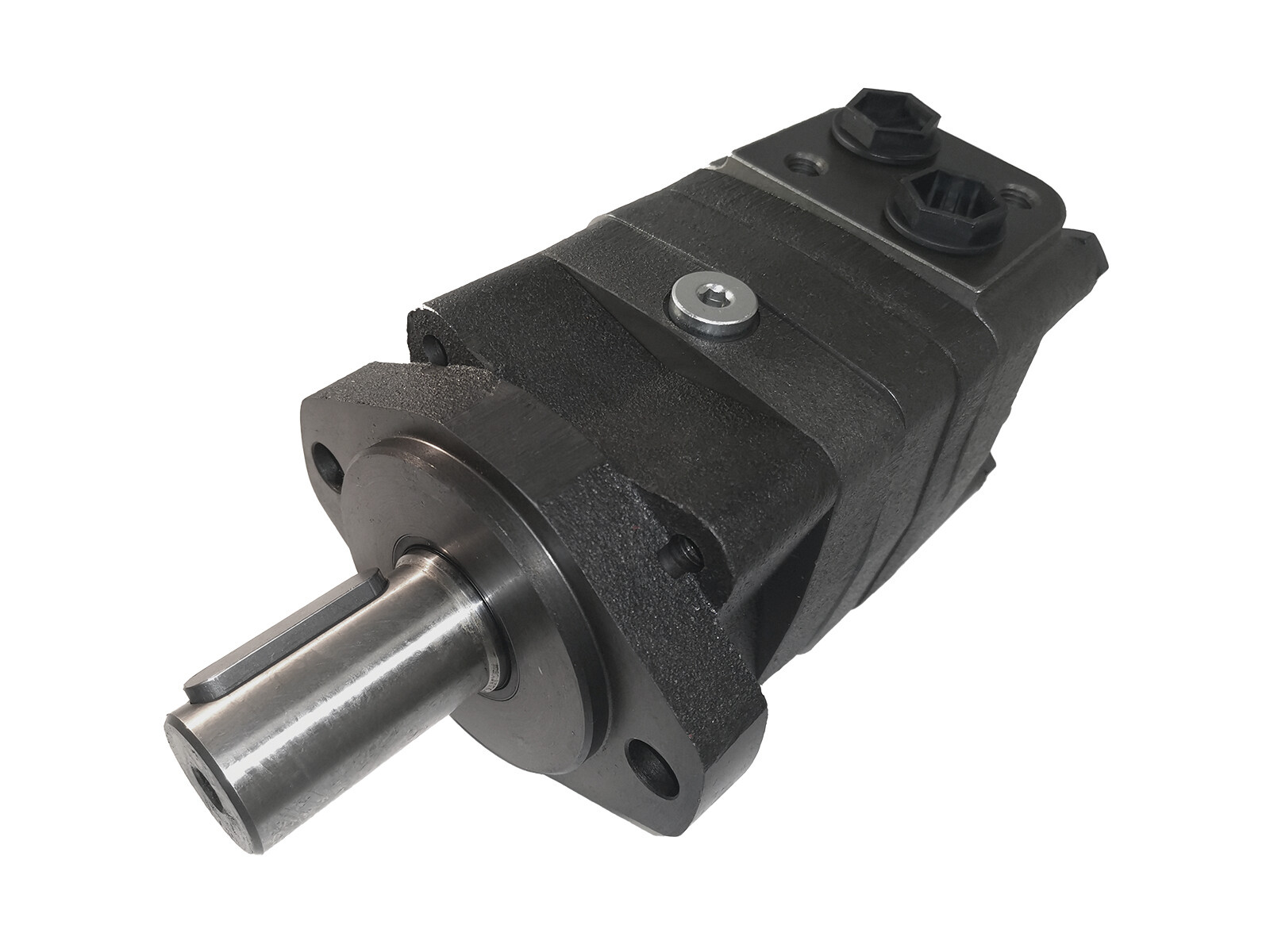

Hydraulic motor 250cm³/r
Maxj 300r/min 720Nm 14.5kW 25mm SAE A-2
Partnumber:
MSA250CA
Package size:
1 kpl
Min. order quantity is:
1 kpl
Brand Name
Hydraspecma
Contamination level max.
-/20/16 - ISO 4406
Continuous power max.
14.5 kW
Continuous rotation max.
300 rpm
Displacement
250 cm3
Drainport
G 1/4 BSP
Filtration degree
25 my
Holes circle
106.4 mm
Mounting flange
SAE-A2
Number of mounting holes
2
Oil viscocity recommended
20 - 75 cSt
Port position
Side
Pressure drop continuous max.
200 bar
Recess
82,5 mm
Shaft diameter
25 mm
Shaft keyway
8,0 mm
Shaft type
Cylindrical
Temperature max.
+82 °C
Temperature min.
-40 °C
Torque continuous max.
720 Nm
Working ports
G 1/2 BSP
Package size
1 kpl
Barcode
448951
Gross weight
Kg
Net weight
11,70 Kg
Country of origin
bgr
Intrastat code
84122981
