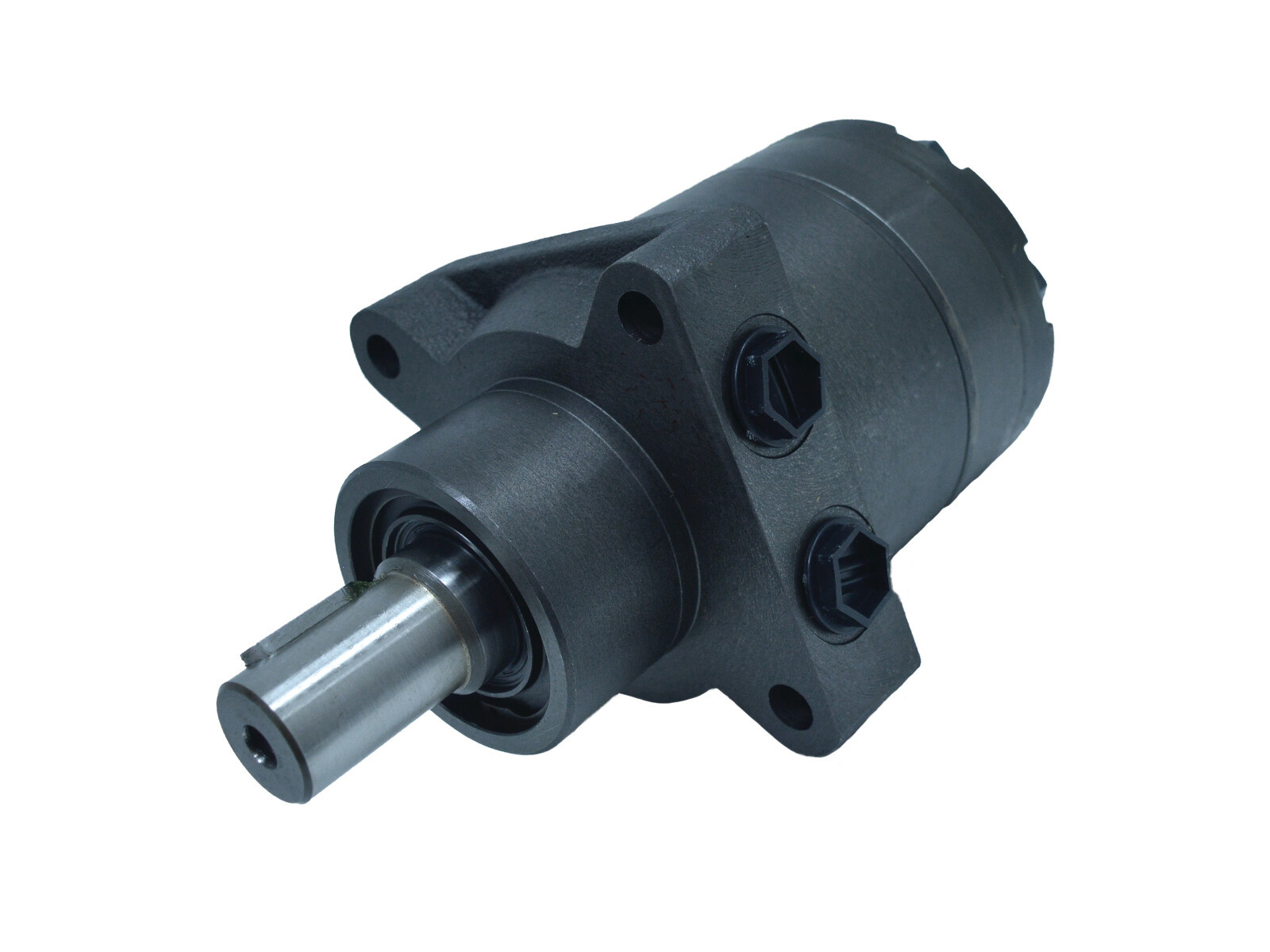

HWS250M2
Maxj 298r/min 690Nm 16.8kW 32mm Lieriö
Partnumber:
HWS250M2
Package size:
1 kpl
Min. order quantity is:
1 kpl
Brand Name
Hydraspecma
Contamination level max.
-/20/16 - ISO 4406
Continuous power max.
16.8 kW
Continuous rotation max.
298 rpm
Displacement
252 cm3
Drainport
G 1/4 BSP
Filtration degree
25 my
Holes circle
147.6 mm
Mounting flange
Wheel mount
Number of mounting holes
4
Oil viscocity recommended
20 - 75 cSt
Port position
Side
Pressure drop continuous max.
205 bar
Recess
82,5 mm
Shaft diameter
32 mm
Shaft keyway
10,0 mm
Shaft type
Cylindrical
Temperature max.
+82 °C
Temperature min.
-40 °C
Torque continuous max.
690 Nm
Working ports
G 1/2 BSP
Package size
1 kpl
Barcode
398750
Gross weight
15,40 Kg
Net weight
15,40 Kg
Country of origin
BG
Maxj 298r/min 690Nm 16.8kW 32mm Lieriö
