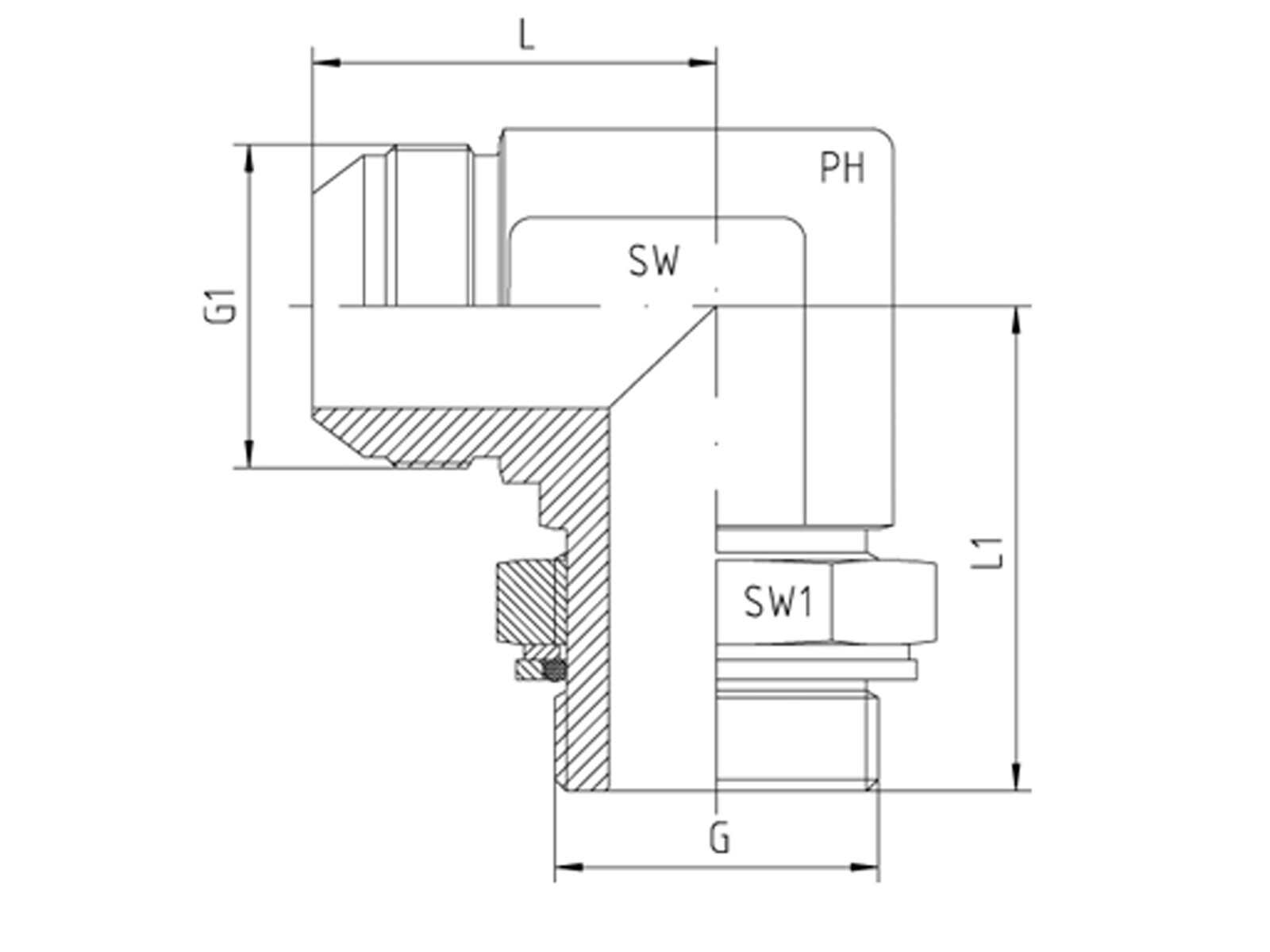

Adjustable Stud Elbow 90° male-male
BSP 1/4"-JIC 9/16" AISI 316
Partnumber:
HS600-04-06
Package size:
1 kpl
Min. order quantity is:
1 kpl
Angle
90 °
Brand Name
PH Industrie-Hydraulik
Diameter pipe
10 mm
G
G 1/4 BSP
G1
9/16-18 JIC
L
26.9 mm
L1
32 mm
Material
Acid-resistant steel
Material quality
1.4571 / AISI316Ti
Model code
1252530-06-04
O-ring
10,77X2,62 mm
Pressure max.
200 bar
SW
14 mm
SW1
19 mm
Sealing material
FKM/FPM (Viton®)
Temperature max.
+200 °C
Temperature min.
-20 °C
Thread outer
9/16-18 JIC
Thread outer
G 1/4 BSP
Package size
1 kpl
Barcode
471264
Gross weight
Kg
Net weight
0,15 Kg
Country of origin
deu
Intrastat code
73071110
BSP 1/4"-JIC 9/16" AISI 316
