GRI - Reducing - Bush
BSP 1/4" - 1/8" AISI 316
Partnumber:
HKN-04-02
Package size:
1 kpl
Min. order quantity is:
1 kpl
Angle
0 °
Brand Name
PH Industrie-Hydraulik

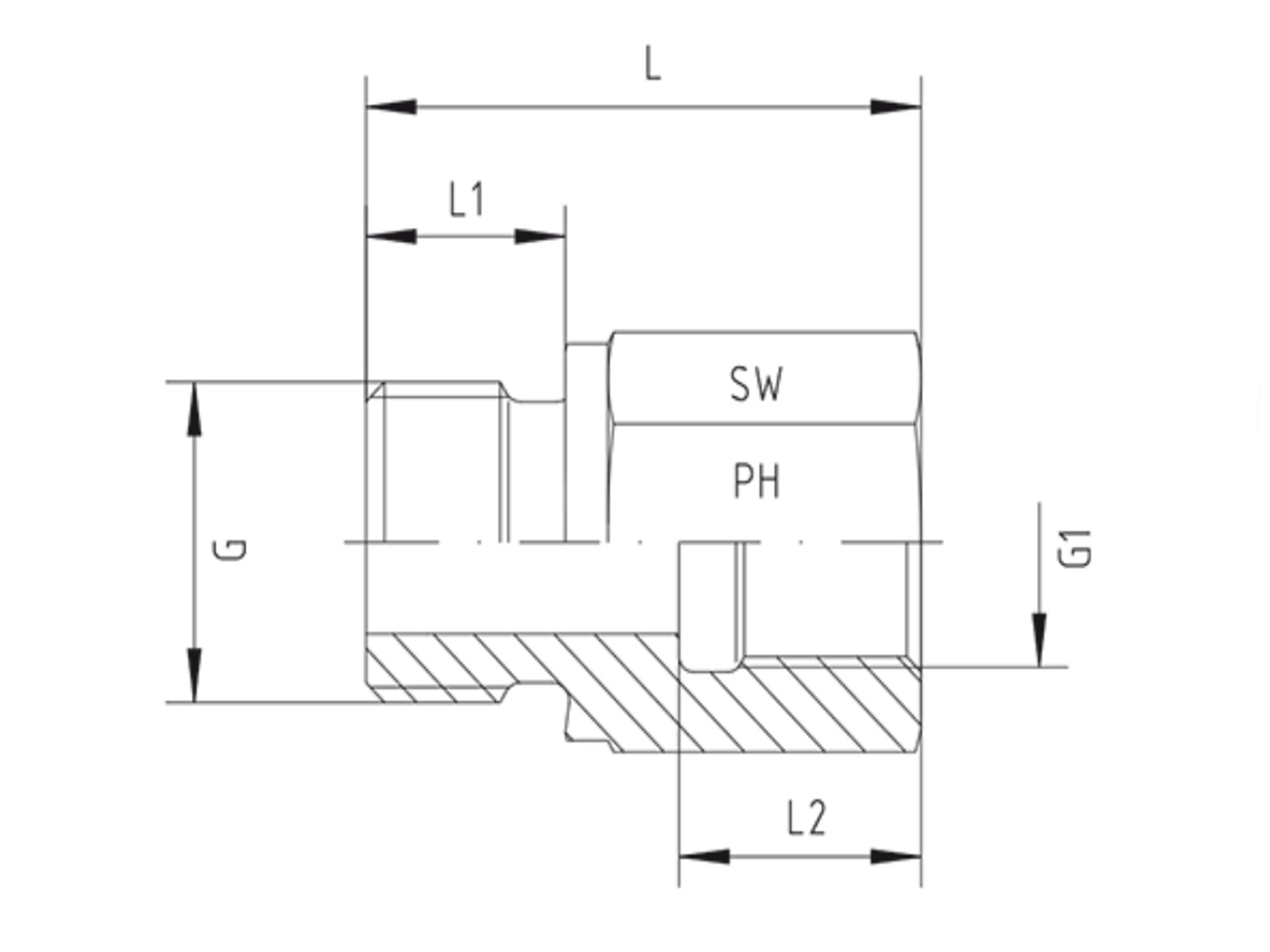

G
G 1/4 BSP
G1
G 1/8 BSP
Hexagon
19 mm
L
28 mm
L1
12 mm
L2
12 mm
Material
Acid-resistant steel
Material quality
1.4571 / AISI316Ti
Model code
GRI-1/4“-wd x 1/8“
Pressure max.
630 bar
SW
19 mm
Safety factor
4
Sealing material
FKM/FPM (Viton®)
Temperature max.
+200 °C
Temperature min.
-20 °C
Thread ISO standard
ISO 228
Thread inner
G 1/8 BSP
Thread outer
G 1/4 BSP
Total length
28 mm
Package size
1 kpl
Barcode
438316
Gross weight
Kg
Net weight
0,04 Kg
Country of origin
deu
Intrastat code
73071110
BSP 1/4" - 1/8" AISI 316
