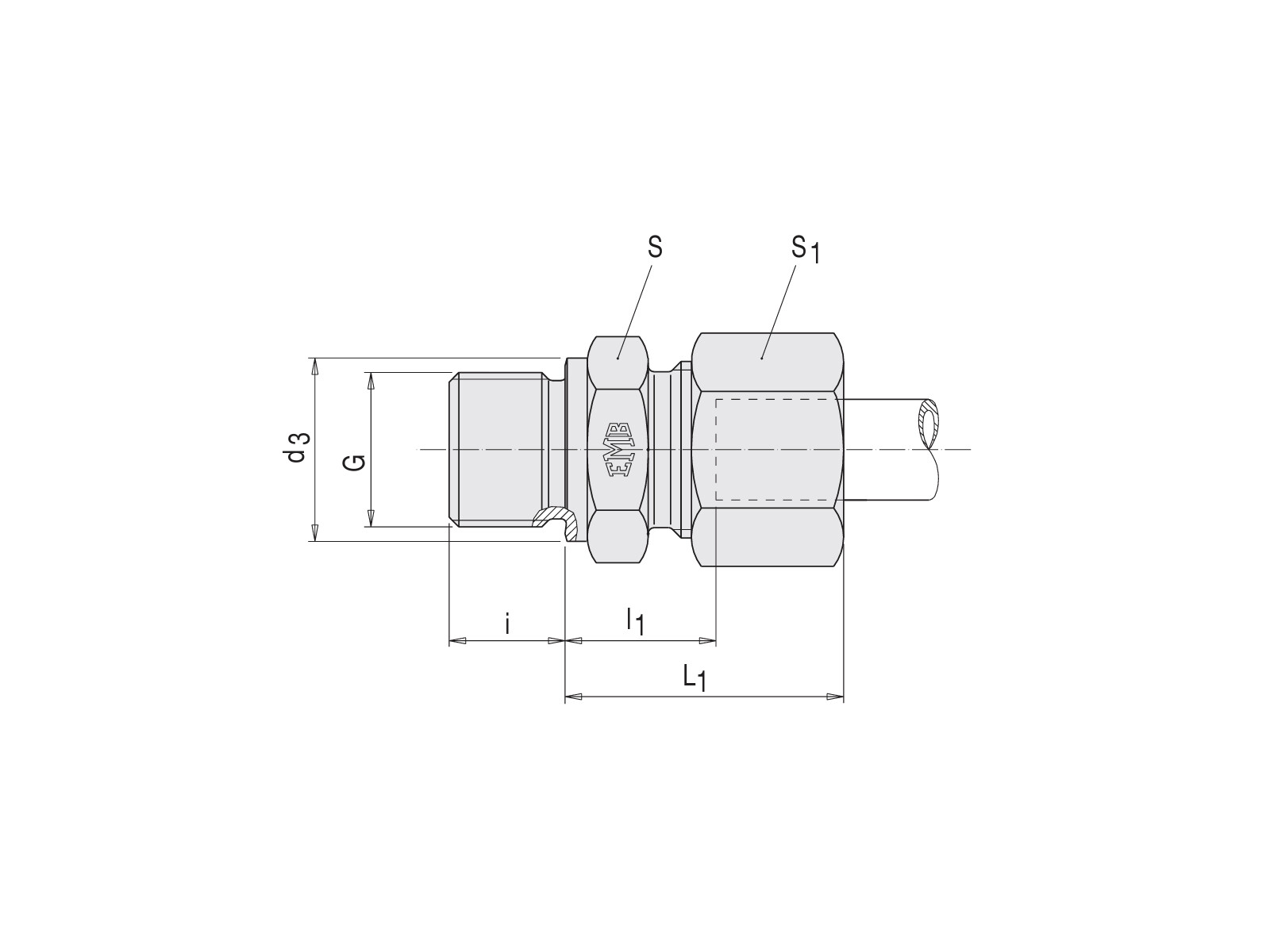

Stud fitting - ø25S x 1" BSP
BSP 1" 25mm putkelle
Partnumber:
DS-25X
Package size:
1 kpl
Min. order quantity is:
1 kpl
If you order this item, then
DS-25REDX
will be ordered instead.
Angle
0 °
Brand Name
Gates Tube Fittings GmbH
Corrosion resistance
1200 hours salt spray DIN EN ISO 9227
Diameter pipe
25 mm
Dimension i
18 mm
G
G 1 BSP
Material
Steel
Model code
XA25RSZN
Pressure max.
400 bar
REACH compliant
Yes
RoHs compliant
Yes
S
41 mm
Safety factor
4
Series
S
Surface treatment
Zinc-Nickel plated
Temperature max.
+120 °C
Temperature min.
-40 °C
Thread outer
G 1 BSP
Thread outer metric
M36x2
d3
39 mm
i
18 mm
l1
23 mm
Package size
1 kpl
Barcode
394101
Gross weight
0,27 Kg
Net weight
0,27 Kg
Country of origin
DEU
Intrastat code
73071110
BSP 1" 25mm putkelle
