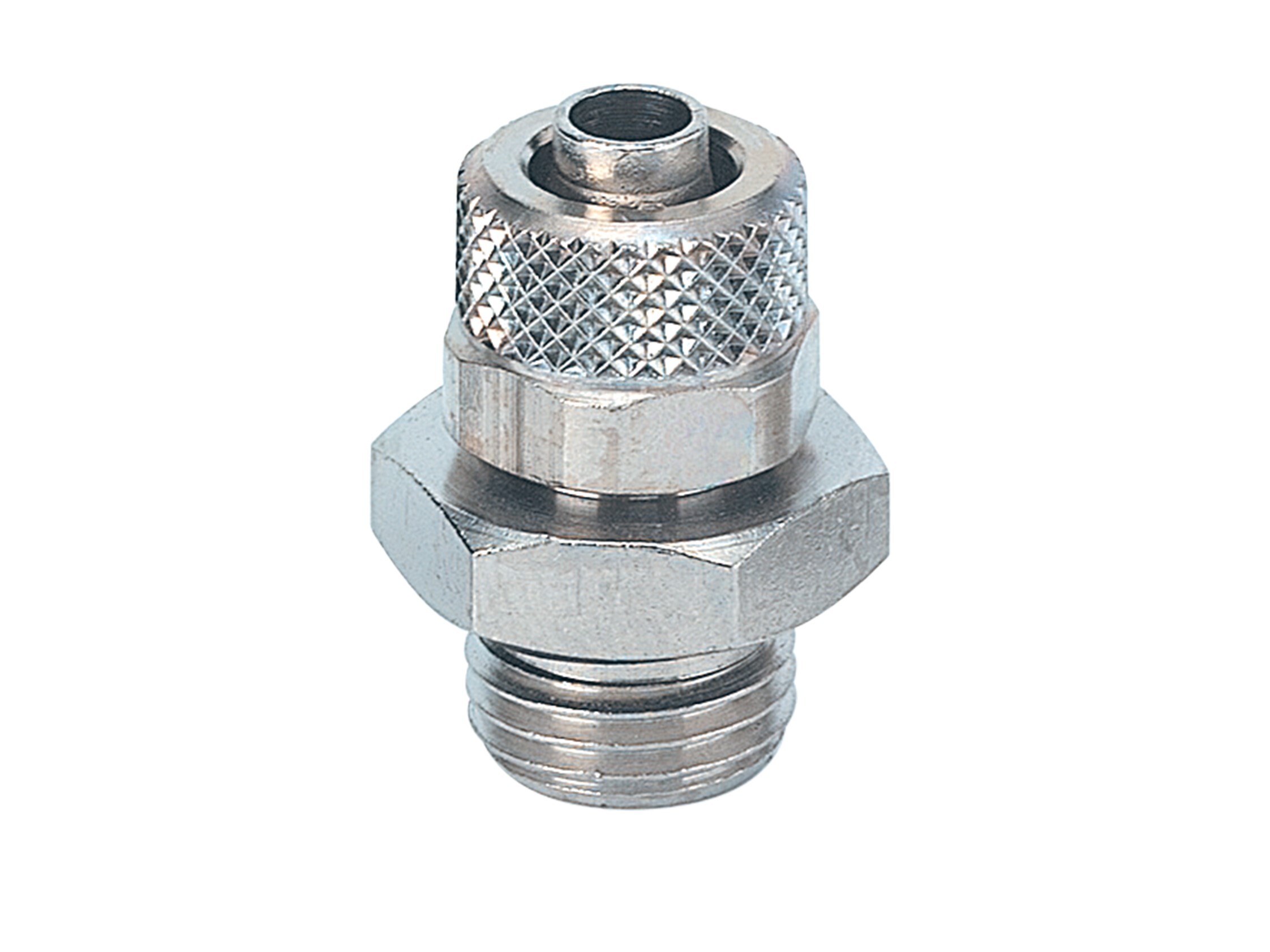

Puristusliitin perus C1/C uk
M 5-6/4mm putkelle
Partnumber:
C106M5
Package size:
100 kpl
Min. order quantity is:
1 kpl
Angle
0 °
Brand Name
Metal Work

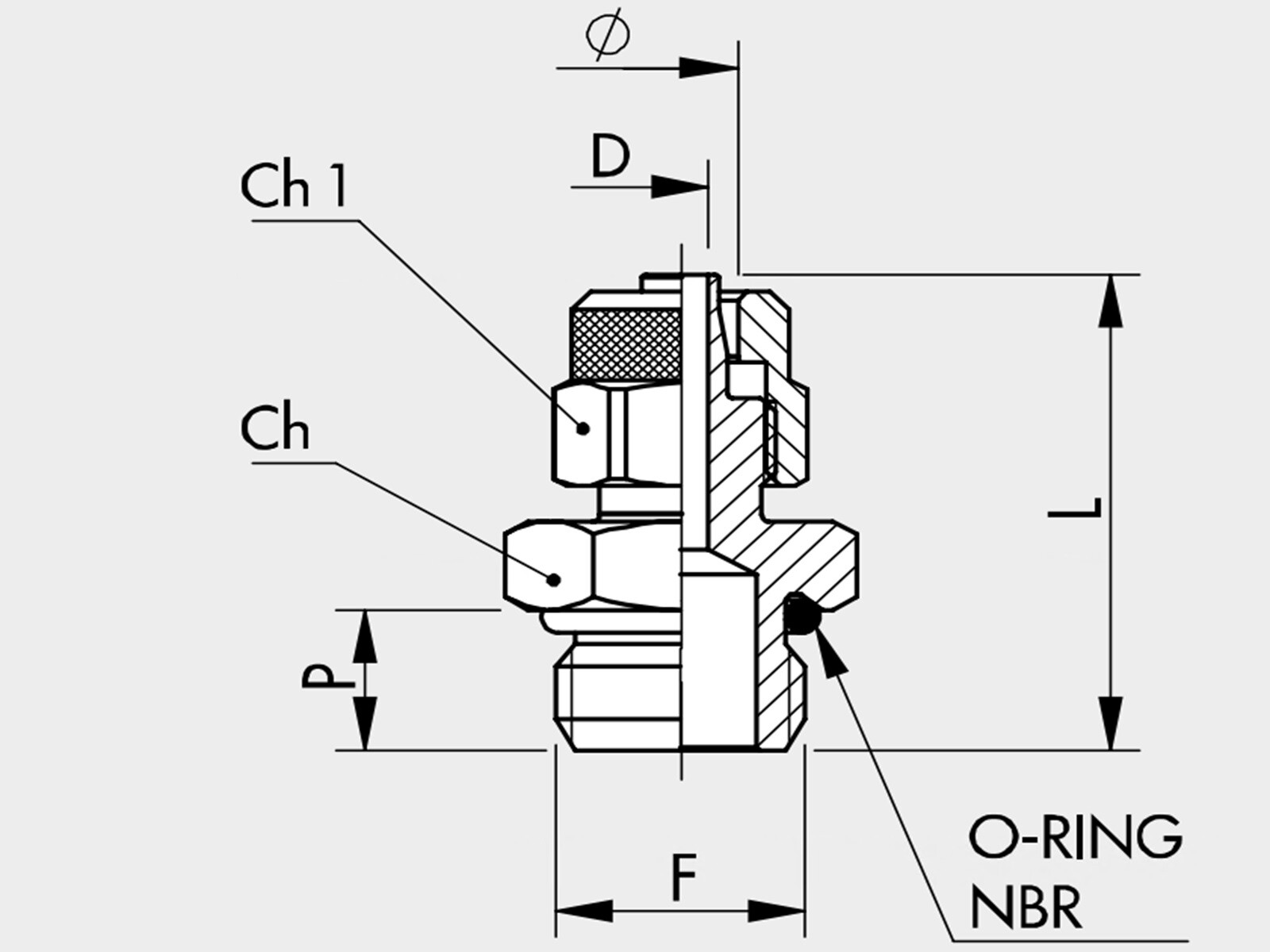

CH
9 mm
CH1
9 mm
D
2,3 mm
Dimension F metric
M5
Dimension Ø
6/4 mm
F
M5
L
23 mm
Material
Brass
Model code
2351002
O-ring
4X1,5 mm
P
4 mm
Pressure max.
18 bar
REACH compliant
Yes
RoHs compliant
Yes
Sealing material
NBR
Temperature max.
+80 °C
Temperature min.
-20 °C
Thread outer metric
M5
Ø
6/4 mm
Package size
100 kpl
Barcode
392941
Gross weight
Kg
Net weight
Kg
Country of origin
fin
M 5-6/4mm putkelle
