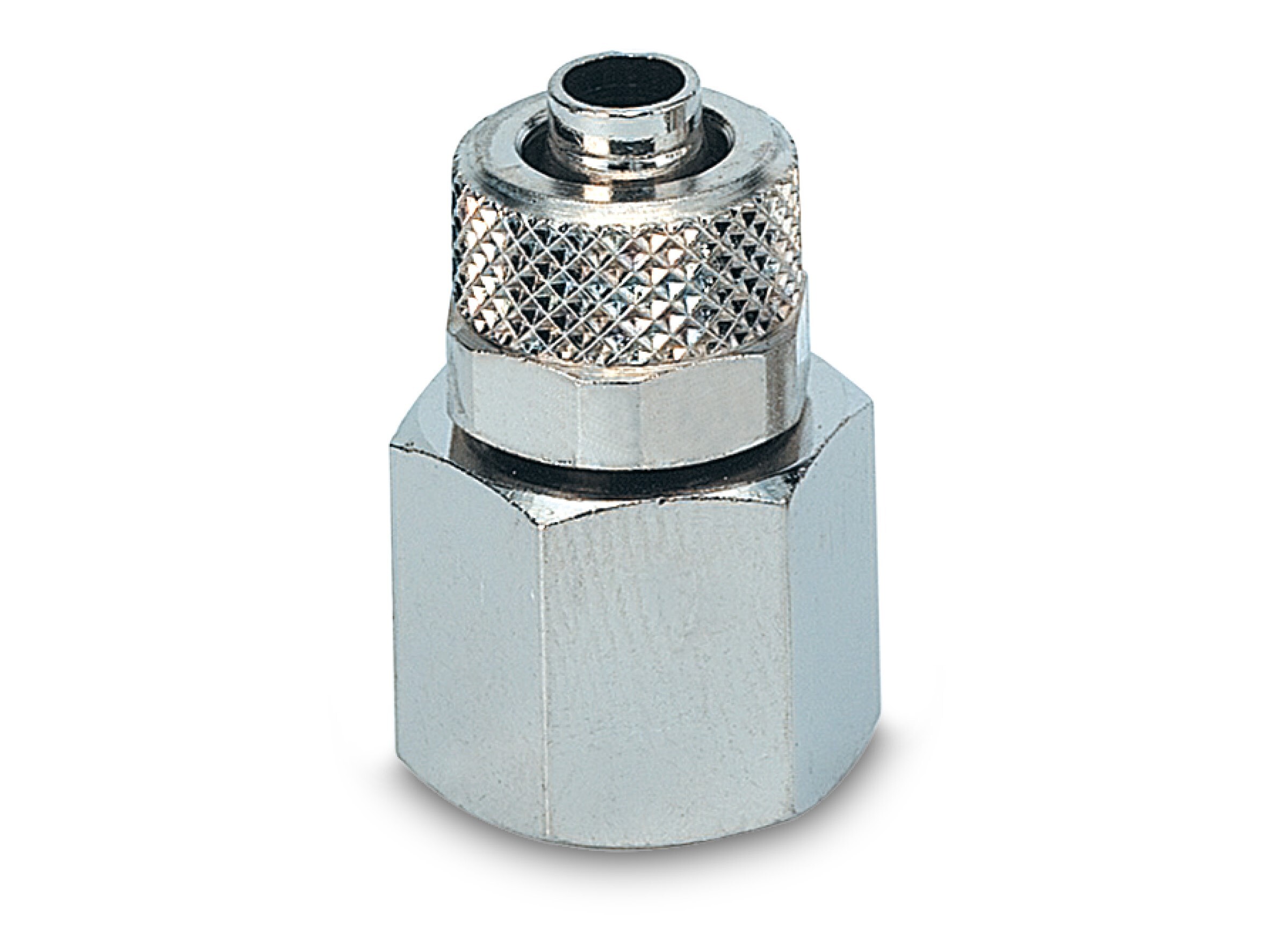

Puristusliitin perus C2 sk
R 1/8"-6/4mm putkelle
Partnumber:
C20602
Package size:
100 kpl
Min. order quantity is:
1 kpl
Angle
0 °
Brand Name
Metal Work

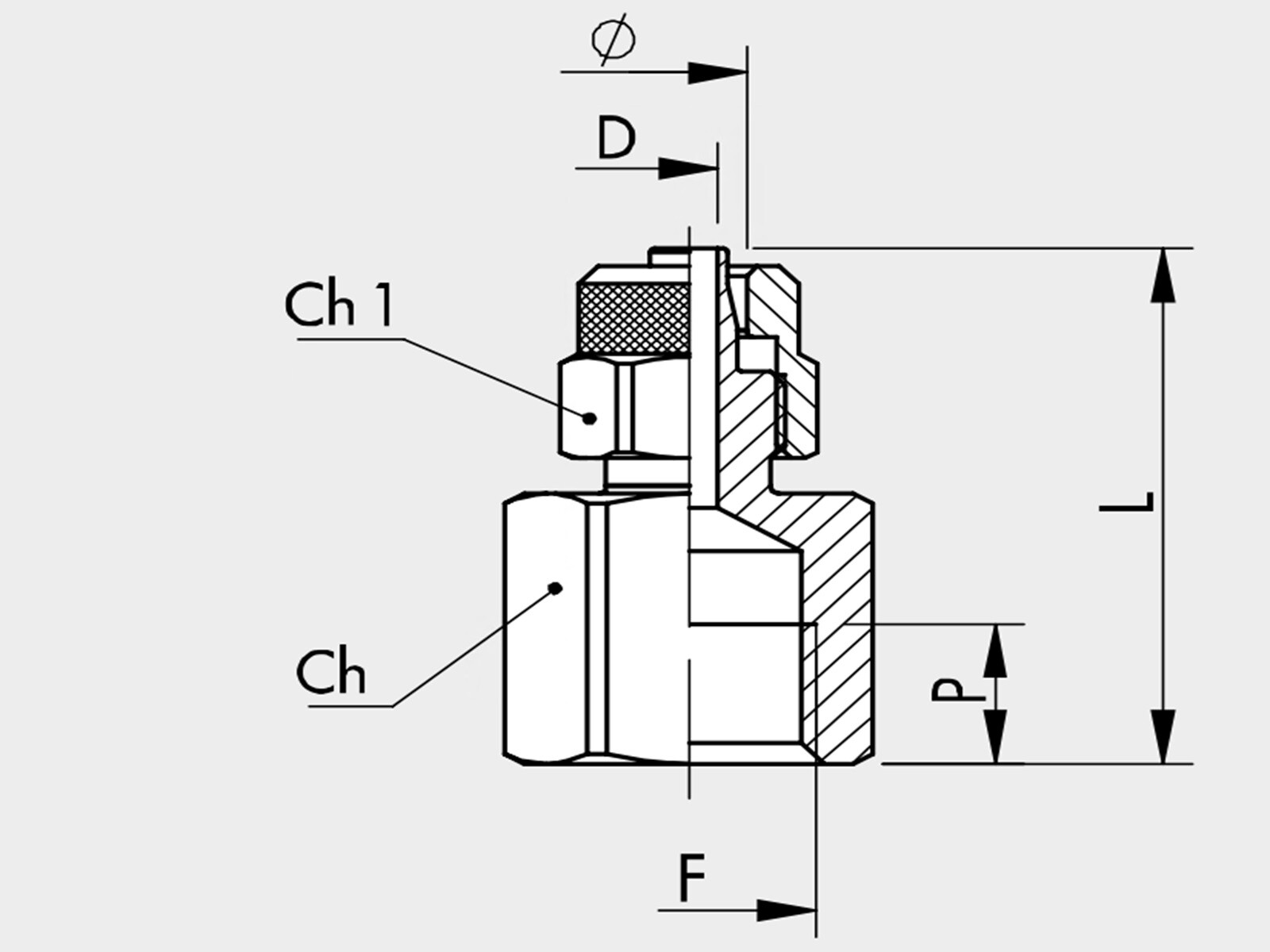

CH
14 mm
CH1
12 mm
D
3 mm
Dimension Ø
6/4 mm
F
G 1/8 BSP
L
26,5 mm
Material
Brass
Model code
2302001
P
7 mm
Pressure max.
18 bar
REACH compliant
Yes
RoHs compliant
Yes
Temperature max.
+80 °C
Temperature min.
-20 °C
Thread
G 1/4 BSP
Thread inner
G 1/8 BSP
Ø
6/4 mm
Package size
100 kpl
Barcode
392958
Gross weight
0,02 Kg
Net weight
0,02 Kg
Country of origin
IT
R 1/8"-6/4mm putkelle
