    • Elbow fitting 45° - S-series - MM male 24° x BSP male adjustable with counter nut adjustable

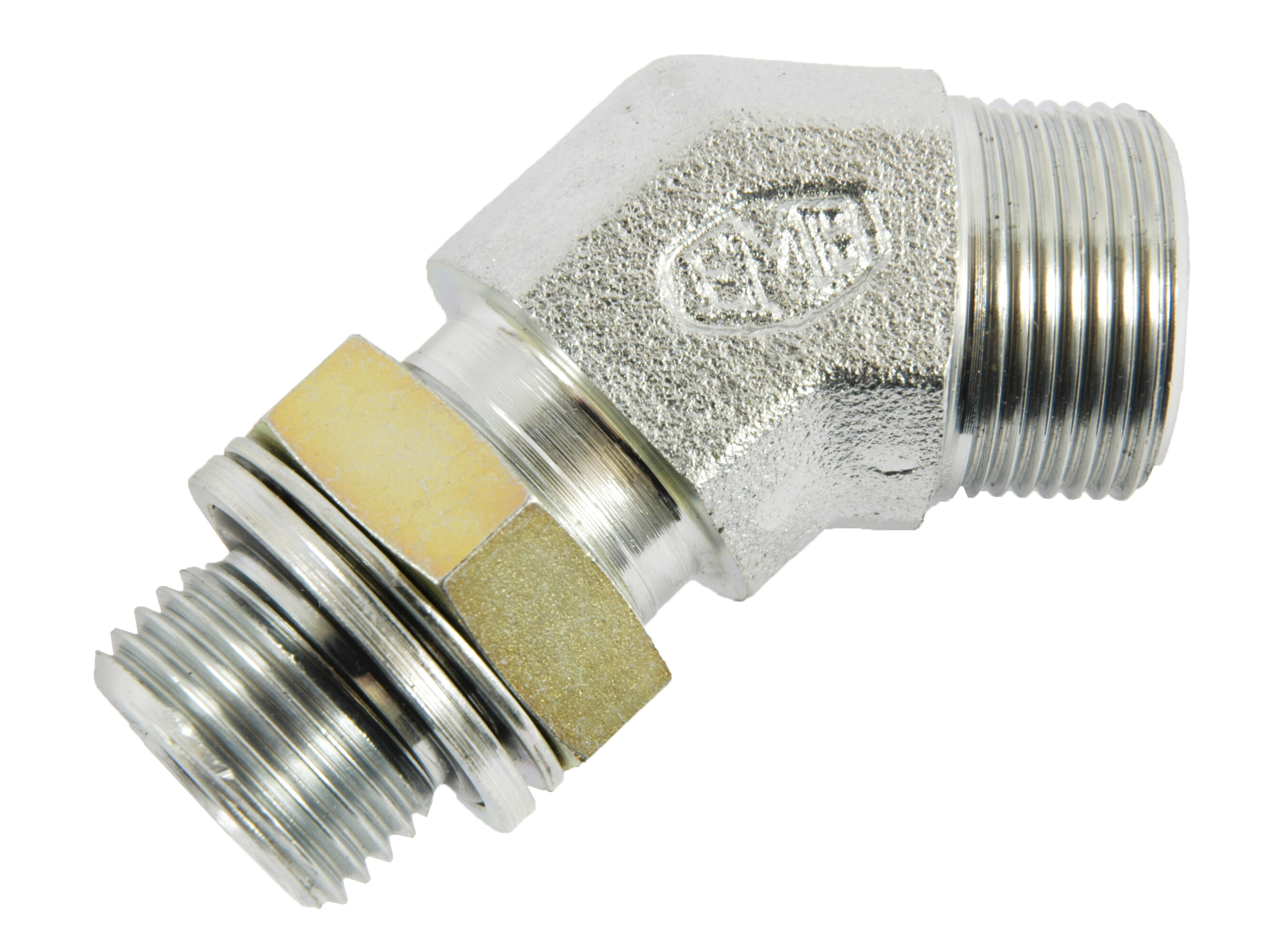

    Elbow fitting 45° - S-series - MM male 24° x BSP male adjustable with counter nut adjustable

    Välj variant
    VÄLJ VARIANT
    VÄLJ VARIANT
    Artikelnummer Beskrivning Diameter pipe Thread outer Pressure max. Thread outer metric
    BFE06RS/OAX Stud elbow adjustable 45° - ø6S x 1/8" BSP 6 mm G 1/4 BSP 315 bar M14x1,5
    BFE08RS/OAX Stud elbow adjustable 45° - ø8S x 1/4" BSP 8 mm G 1/4 BSP 315 bar M16x1,5
    BFE10RS/OAX Stud elbow adjustable 45° - ø10S x 3/8" BSP 10 mm G 3/8 BSP 315 bar M18x1,5
    BFE12RS/OAX Stud elbow adjustable 45° - ø12S x 3/8" BSP 12 mm G 3/8 BSP 250 bar M20x1,5
    BFE20RS/OAX Stud elbow adjustable 45° - ø20S x 3/4" BSP 20 mm G 3/4 BSP 250 bar M30x2
    BFE25RS/OAX Stud elbow adjustable 45° - ø25S x 1" BSP 25 mm G 1 BSP 250 bar M36x2
    BFE30RS/OAX Stud elbow adjustable 45° - ø30S x 1.1/4" BSP 30 mm G 1.1/4 BSP 160 bar M42x2
    FXVEE06SR14OK Stud elbow adjustable 45° - ø6S x 1/8" BSP 6 mm G 1/4 BSP 315 bar M14x1,5
    FXVEE08SR14OK Stud elbow adjustable 45° - ø8S x 1/4" BSP 8 mm G 1/4 BSP 315 bar M16x1,5
    FXVEE10SR38OK Stud elbow adjustable 45° - ø20S x 3/4" BSP 20 mm G 3/4 BSP 250 bar M30x2
    FXVEE12SR38OK Stud elbow adjustable 45° - ø12S x 3/8" BSP 12 mm G 3/8 BSP 250 bar M20x1,5
    FXVEE16SR12OK Stud elbow adjustable 45° - ø16S x 1/2" BSP 16 mm G 1/2 BSP 250 bar M24x1,5
    FXVEE20SR34OK Stud elbow adjustable 45° - ø20S x 3/4" BSP 20 mm
    FXVEE25SR1OK Stud elbow adjustable 45° - ø25S x 1" BSP 25 mm G 1 BSP 250 bar M36x2
    FXVEE30SR114OK Stud elbow adjustable 45° - ø30S x 1.1/4" BSP 30 mm G 1.1/4 BSP 160 bar M42x2
    FXVEE38SR112OK Stud elbow adjustable 45° - ø38S x 1.1/2" BSP 38 mm G 1.1/2 BSP 160 bar M52x2
    Angle
    45
    Corrosion resistance
    1200 hours salt spray DIN EN ISO 9227
    Material
    Steel
    REACH compliant
    Yes
    RoHs compliant
    Yes
    Safety factor
    4
    Sealing material
    NBR
    Series
    S
    Surface treatment
    Zinc-Nickel plated
    Temperature max.
    +100
    Temperature min.
    -35
