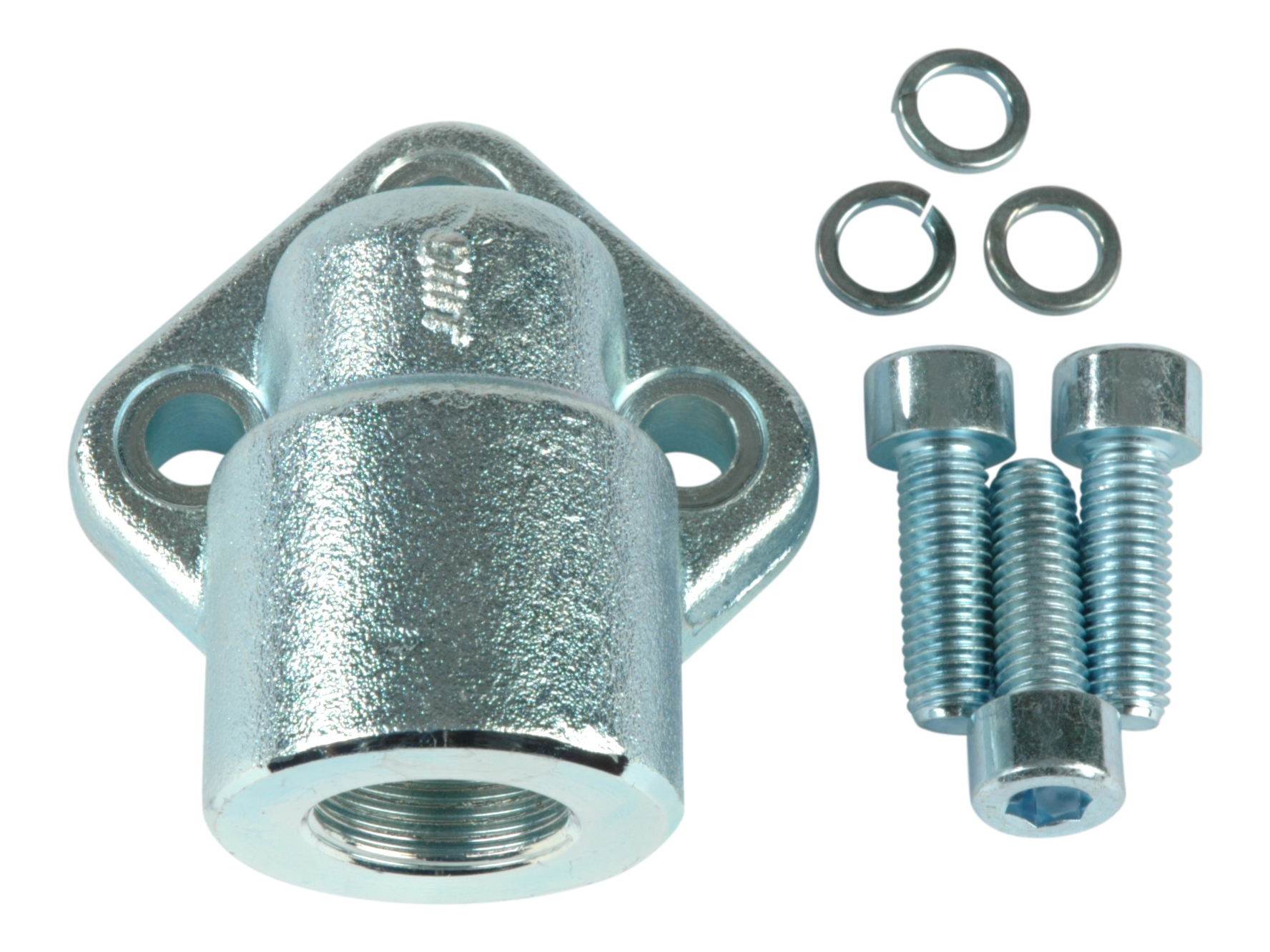

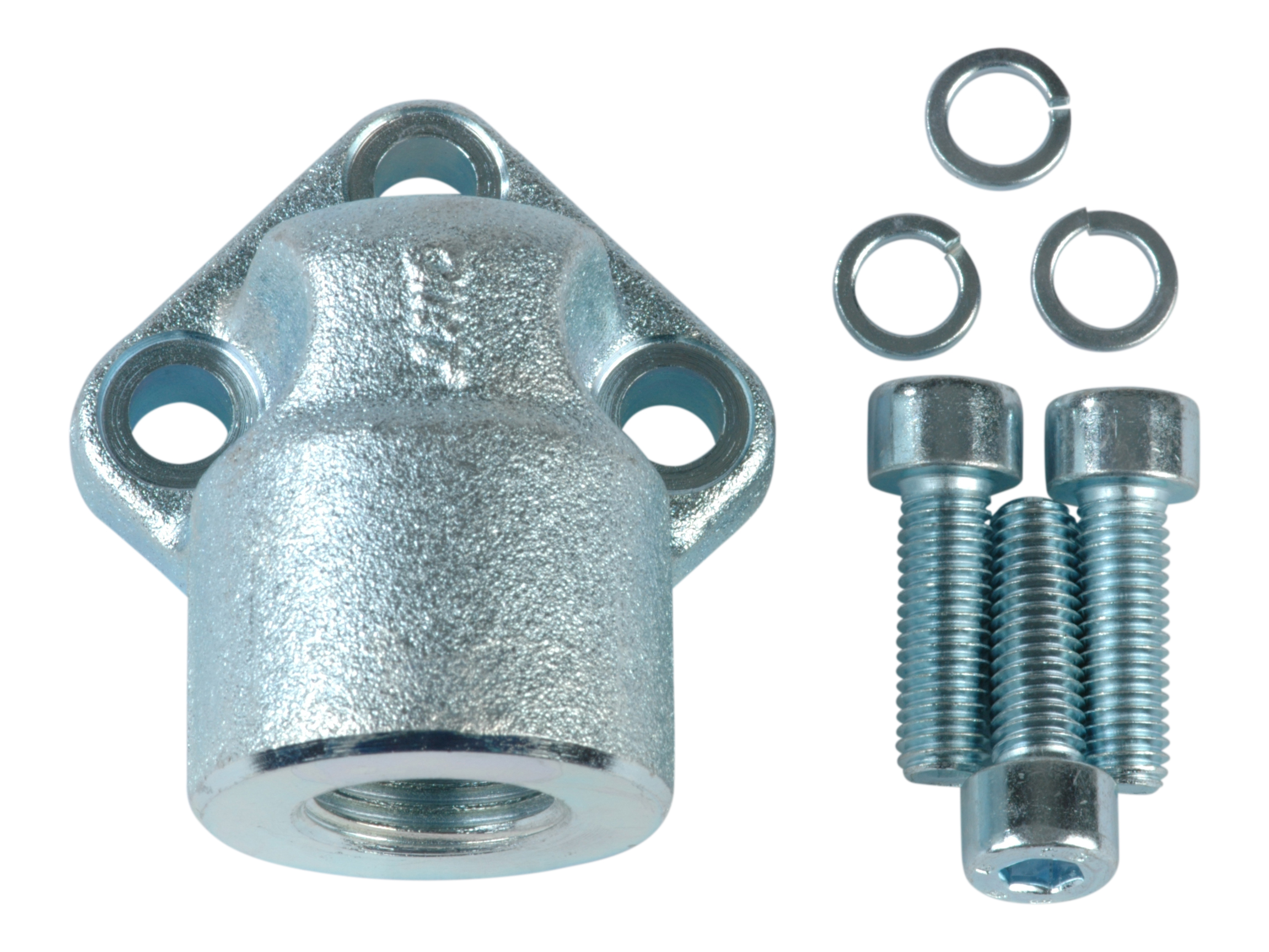

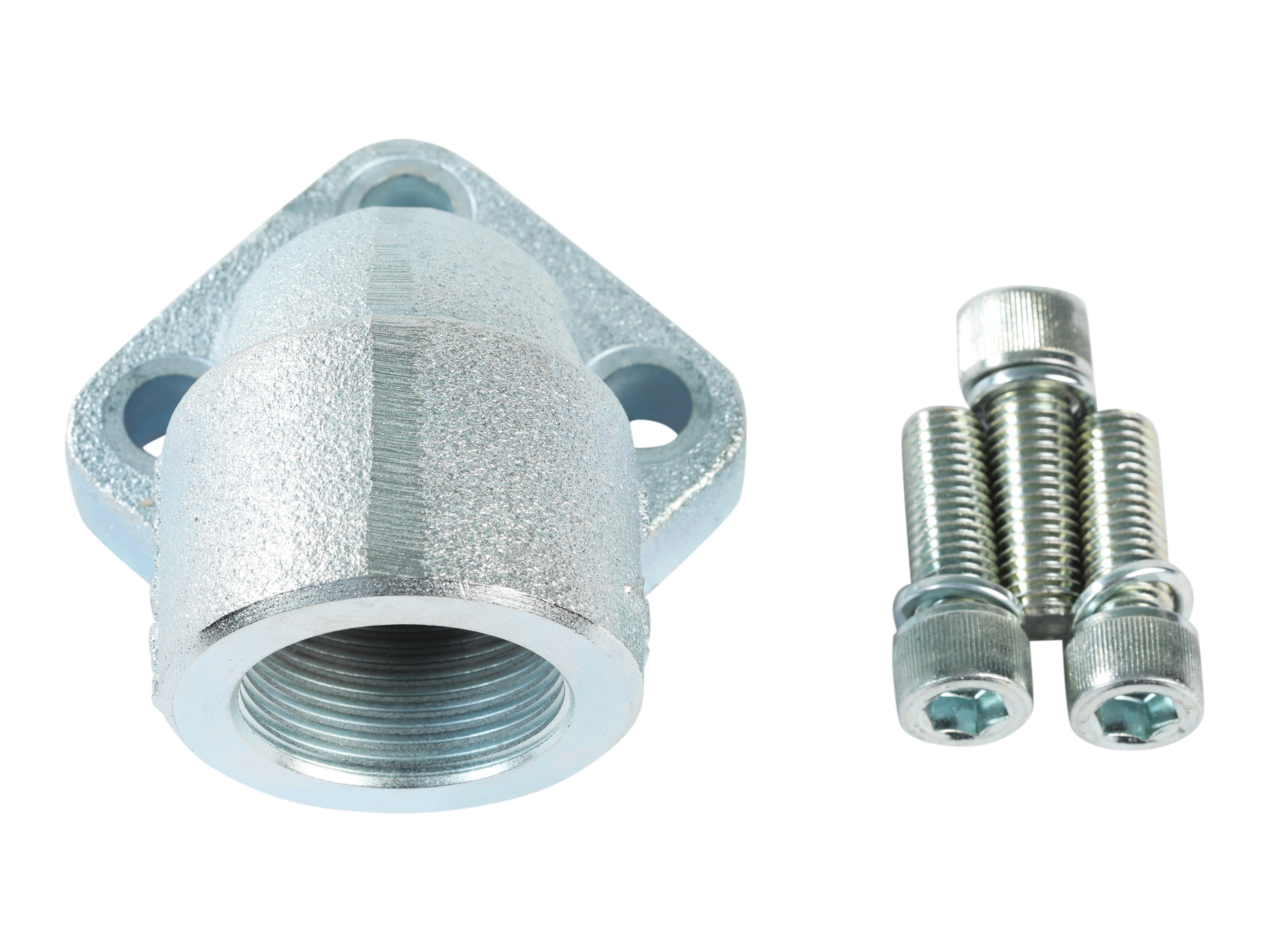

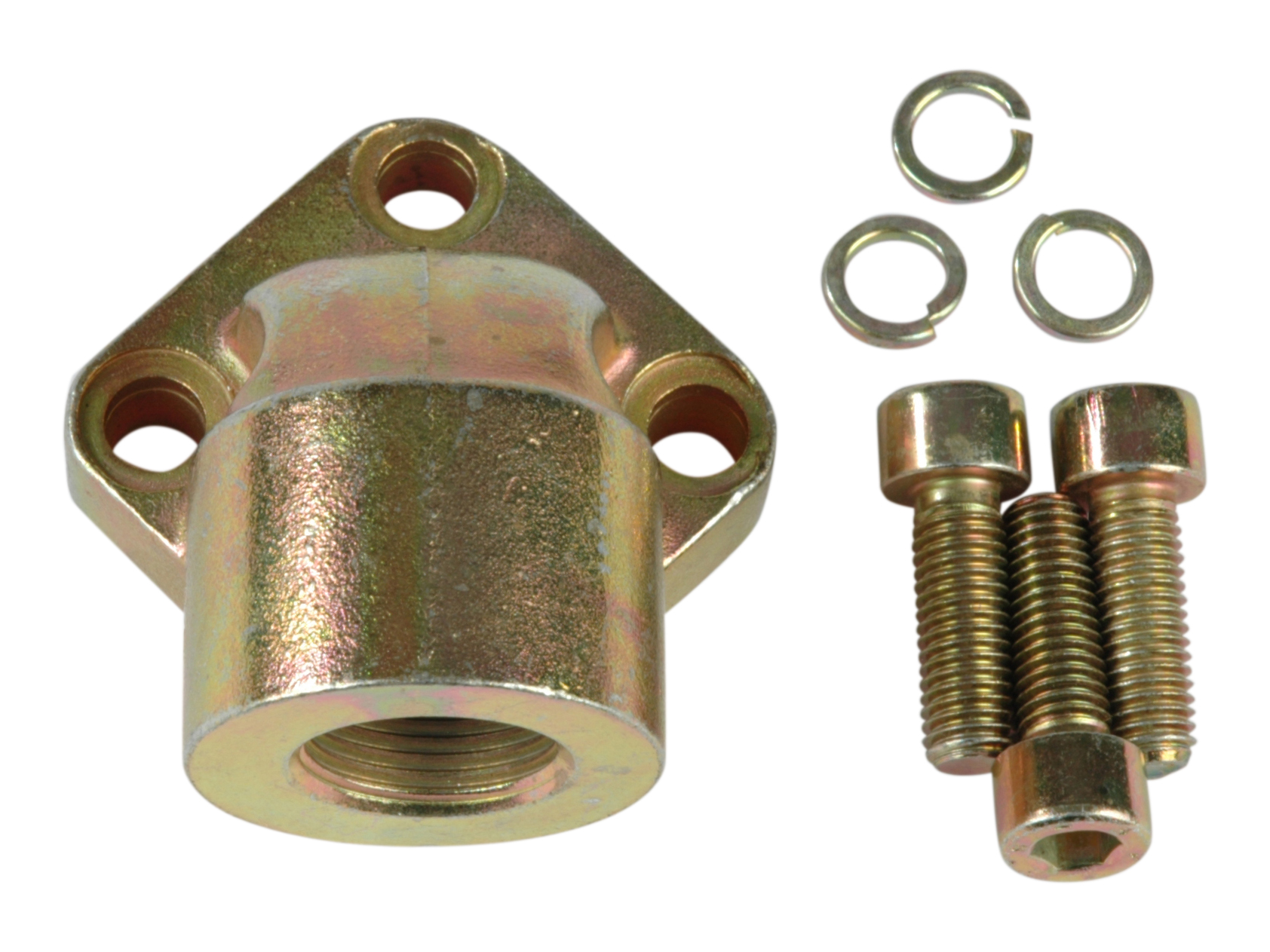

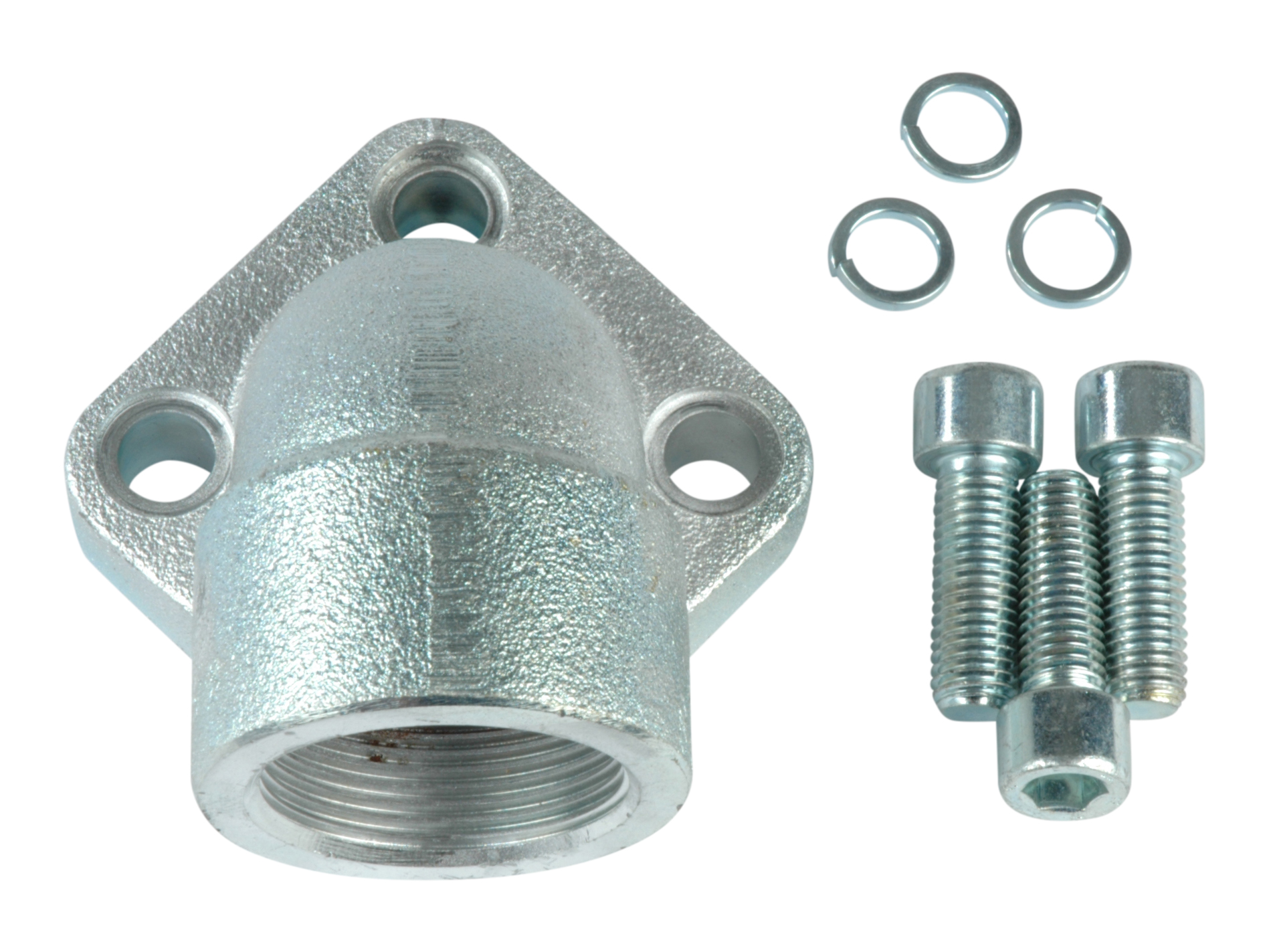

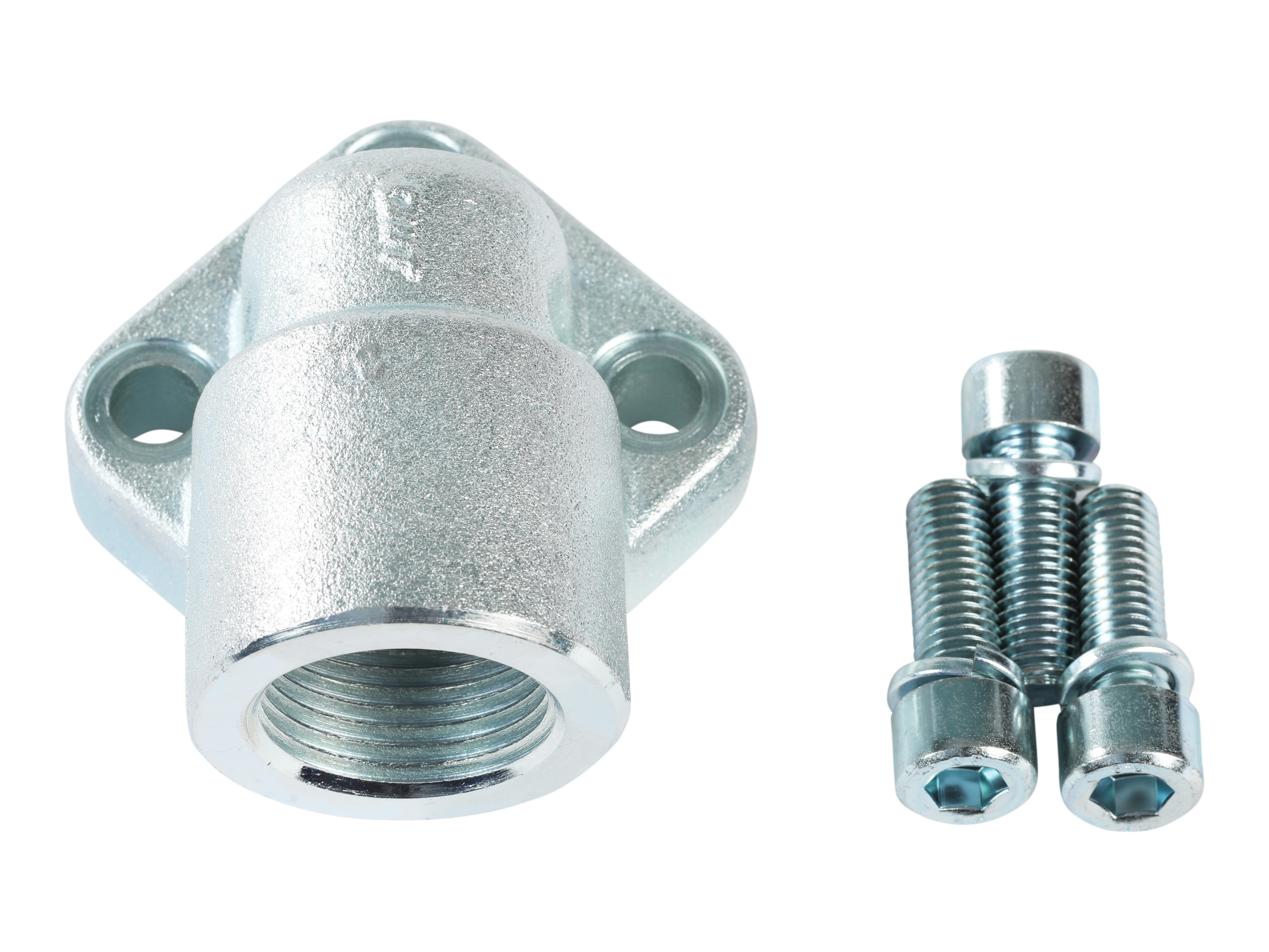

Flange elbow - BSP female - RG / RPA

Flange elbow - BSP female - RG / RPA

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Pressure max. Thread inner Holes circle Material
1RGD1/2X30 Flange 90° 1/2" BSP - (3) 30mm 315 bar G 1/2 BSP 30 mm Steel
1RGD3/8X30 Flange 90° 3/8" BSP - (3) 30mm 315 bar G 3/8 BSP 30 mm Steel
2RG1/2X40 Flange 90° 1/2" BSP - (3) 40mm 315 bar G 1/2 BSP 40 mm Steel
2RG3/4X40 Flange 90° 3/4" BSP - (3) 40mm 315 bar G 3/4 BSP 40 mm Steel
3RG1X51 Flange 90° 1" BSP - (3) 51mm 315 bar G 1 BSP 51 mm Steel
3RG3/4X51 Flange 90° 3/4" BSP - (3) 51mm 315 bar G 3/4 BSP 51 mm Steel
3RGB1X56 Flange 90° 1" BSP - (3) 56mm 315 bar G 1 BSP 56 mm Steel
3RGB3/4X56 Flange 90° 3/4" BSP - (3) 56mm 315 bar G 3/4 BSP 56 mm Steel
4RG1.1/4X62 Flange 90° 1.1/4" BSP - (3xM10) 62mm 315 bar G 1.1/4 BSP 62 mm Steel
4RG114M12 Flange 90° 1.1/4" BSP - (3xM12) 62mm 315 bar G 1.1/4 BSP 62 mm Steel
5RG1.1/2X72 Flange 90° 1.1/2" BSP - (3) 72mm 315 bar G 1.1/2 BSP 72 mm Steel
Angle
90
Brand Name
Hydraspecma
Material
Steel
Pressure max.
315
Sealing material
NBR
Shore
90
Surface treatment
White zinc plated
