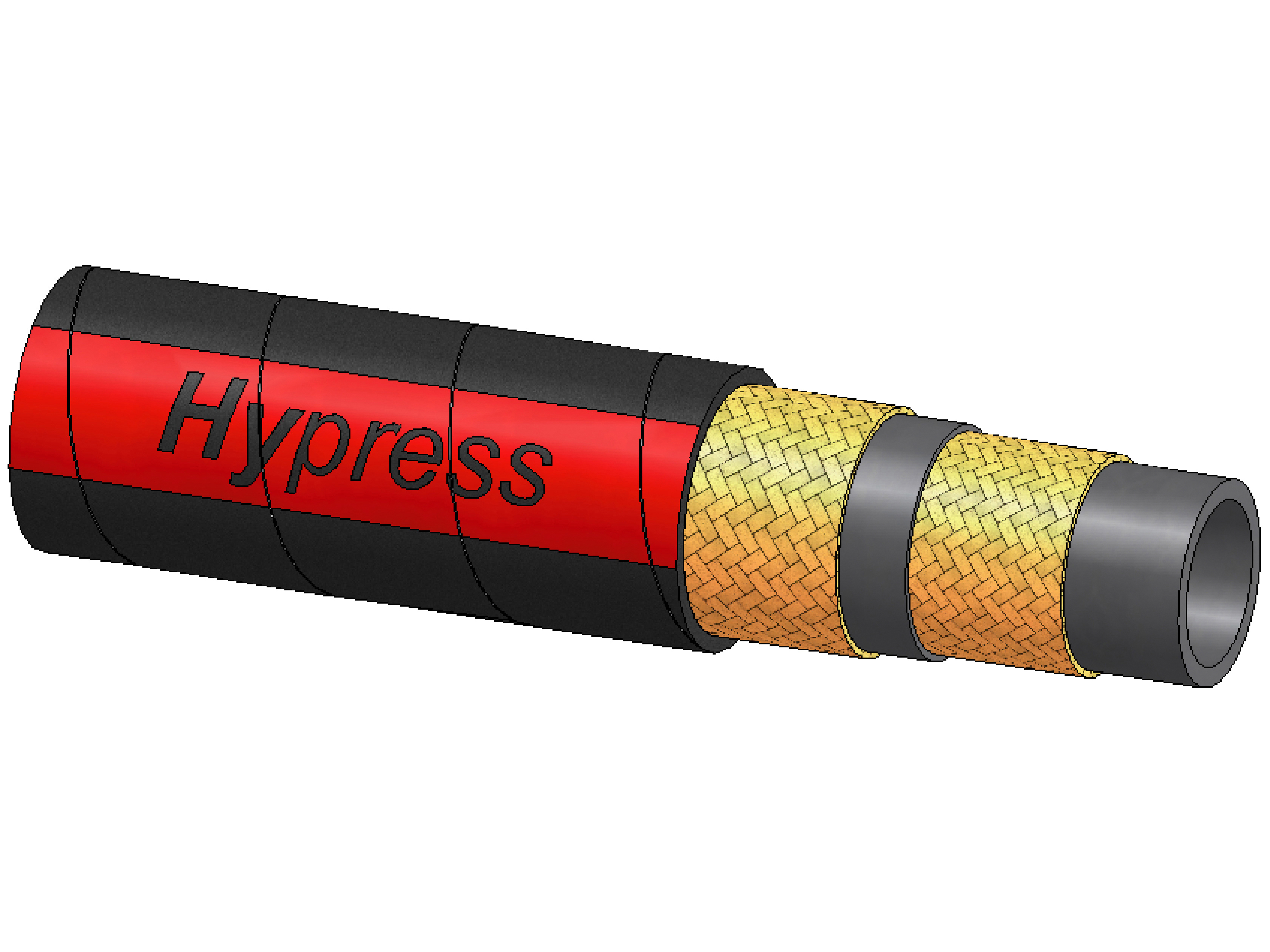

THE2SNK hydraulic hoses

THE2SNK hydraulic hoses

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Hose size Pressure max. Hose type Bend radius
THE2SNK08 1/2" Hydraulic hose THE - 310 bar - 2SC 1/2 " 310 bar 2SC 80 mm
THE2SNK16 1" Hydraulic hose THE - 210 bar - 2SC 1 " 210 bar 2SC 160 mm
Brand Name
I.M.M Hydraulics
Cover
Synthetic rubber
Flameresistant
Yes
Hose type
2SC
Hoseapprovals
BV, DNV, GL, LLOYD, MED, RINA
Reinforcement
2 layer high tensile steel wire braid
Standard EN
EN 857 2SC
Standard ISO
ISO 11237 2SC
Temperature intermittent max.
+120
Temperature max.
+100
Temperature min.
-40
Tube
Synthetic rubber
