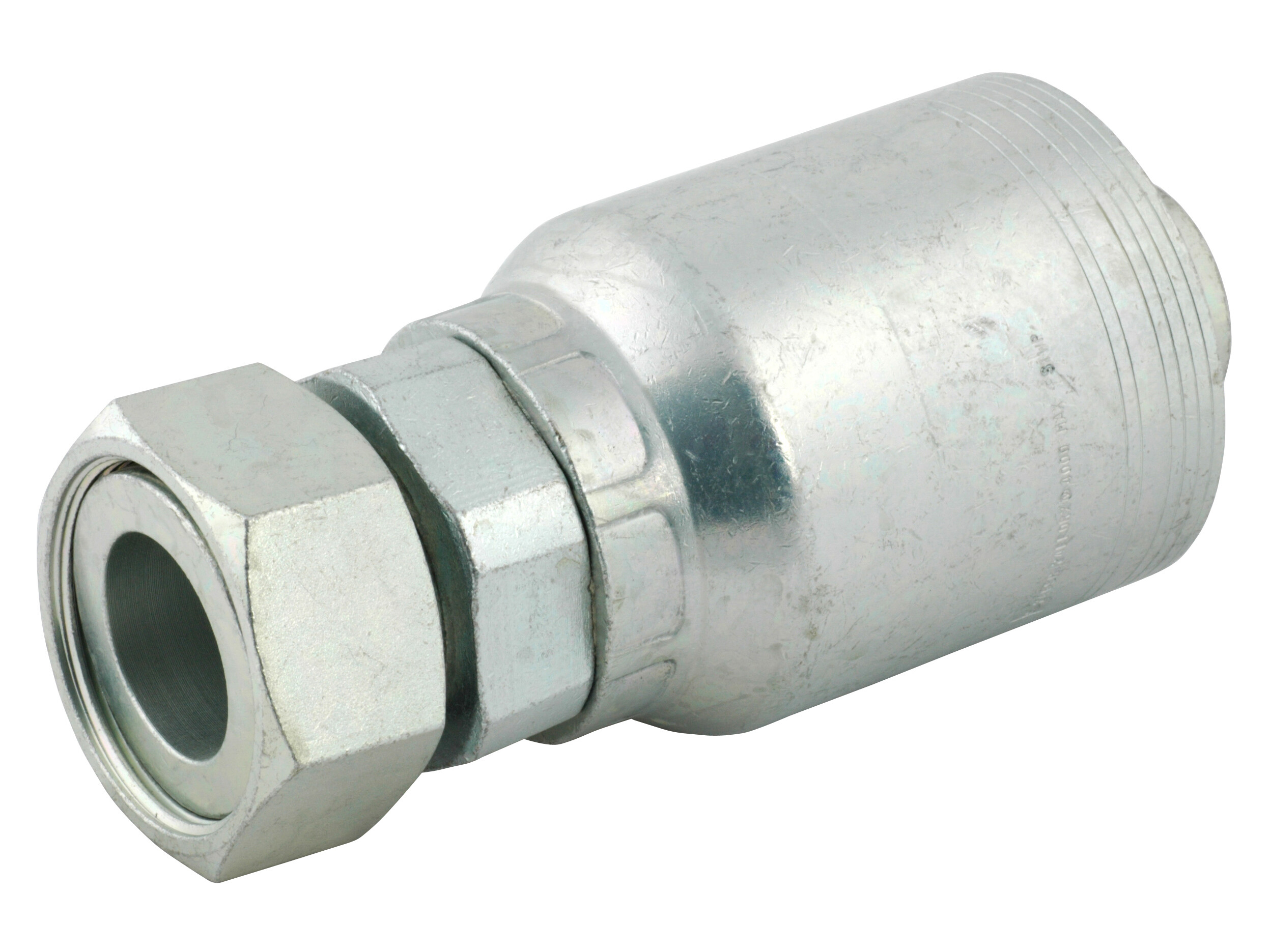

1.1/2" Insert - 2"-12 ORFS female
Connector description: Internally threaded ORFS hose connector with flat sealing surface.
Sealing: O-ring against metal.
Varenummer:
GSM2424FF
Pakke str.:
0 pcs
Min. bestillingsenhed er:
1 pcs
Angle
0 °
Corrosion resistance
500 hours salt spray ASTM B-117
Dimension A
1644 mm
Dimension B
694 mm
Dimension D
1.1/2 "
Dimension H1
60 mm
Dimension H2
55 mm
Hose coupling type
With fixed ferrule
Hose size
1.1/2 "
Material
Steel
Pressure max.
280 bar
REACH compliant
Yes
RoHs compliant
Yes
Surface treatment
TuffCoat™
Thread
2-12 ORFS
Torque tightening
200 - 245 Nm
Pakke str.
0 pcs
Stregkode
5704334379645
Brutto vægt
1,03 Kg
Netto vægt
1,03 Kg
Oprindelsesland
TUR
Intrastat varekode
73269098
Connector description: Internally threaded ORFS hose connector with flat sealing surface.
Sealing: O-ring against metal.
