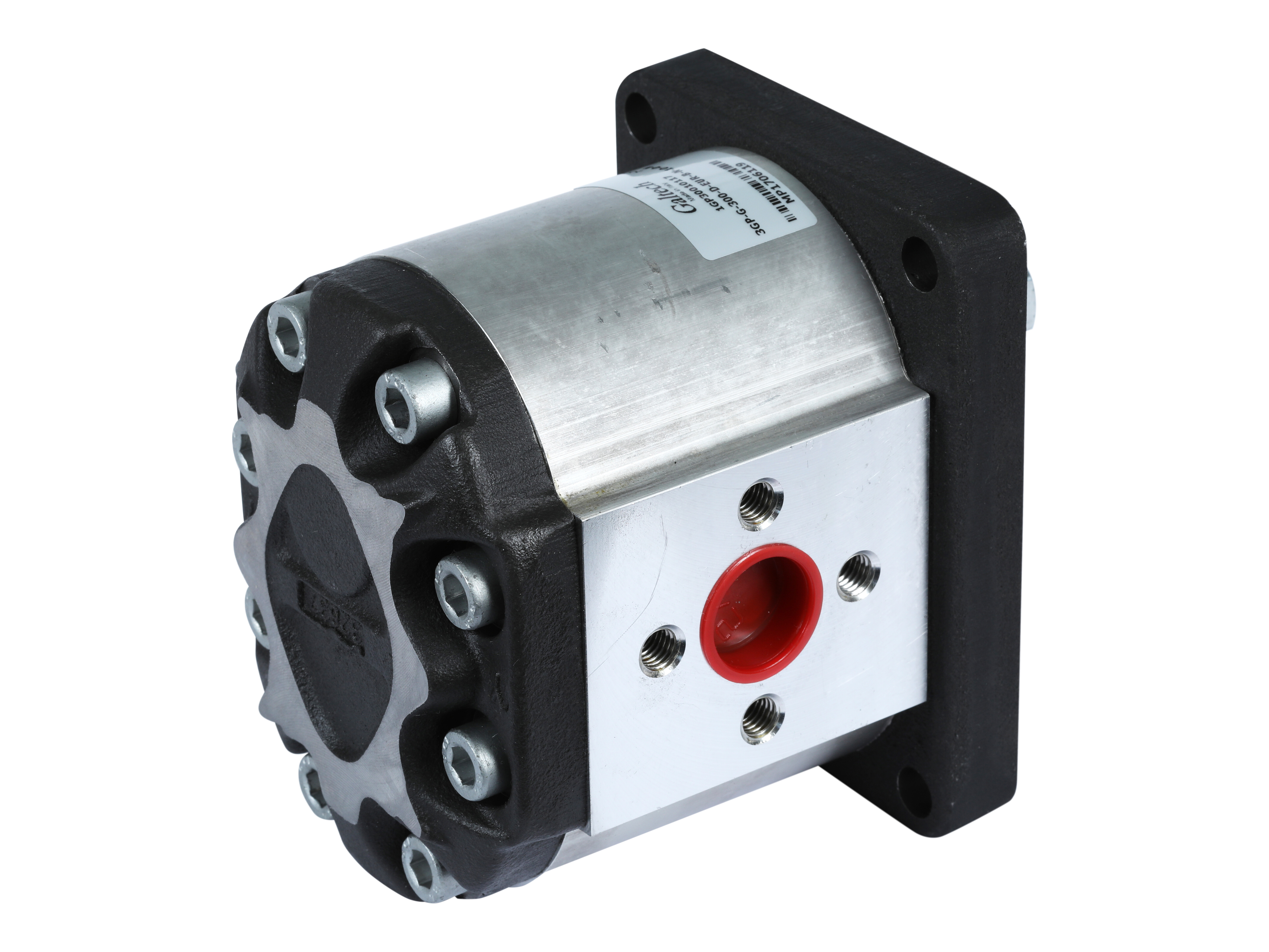

Pump 3GP-G-370-D-EUR-B-N-10-0-N
Gear Pump Gr.3 37ccm Flange 98X128 Shaft EUR 1:8 Ports EUR 4-bolt-Cast-Iron Right
Artikelnummer:
1GP30010235
Förpackningsstorlek:
1 pcs
Minsta beställningskvantitet:
1 pcs
Brand Name
Walvoil
Contamination level max.
20/18/15 - ISO 4406
Displacement
37.5 cm3
Mounting flange
EU51 - 128x98
Number of mounting holes
4
Oil viscocity recommended
15 - 92 cSt
Port inlet
EU51
Port outlet
EU40
Pressure continous max.
250 bar
Pressure intermittent max.
245 bar
Pressure peak max.
260 bar
Pump group
3
Recess
51,0 mm
Rotation direction
Right (CW)
Rotational speed max.
3300 rpm
Rotational speed min.
600 rpm
Shaft cone
1:8
Shaft keyway
4,0 mm
Shaft type
Tapered
Torque input
24 daNm
Förpackningsstorlek
1 pcs
Streckkod
5704334876809
Bruttovikt
5,92 Kg
Nettovikt
5,92 Kg
Ursprungsland
ITA
Intrastat artikelkod
84136031
Gear Pump Gr.3 37ccm Flange 98X128 Shaft EUR 1:8 Ports EUR 4-bolt-Cast-Iron Right
