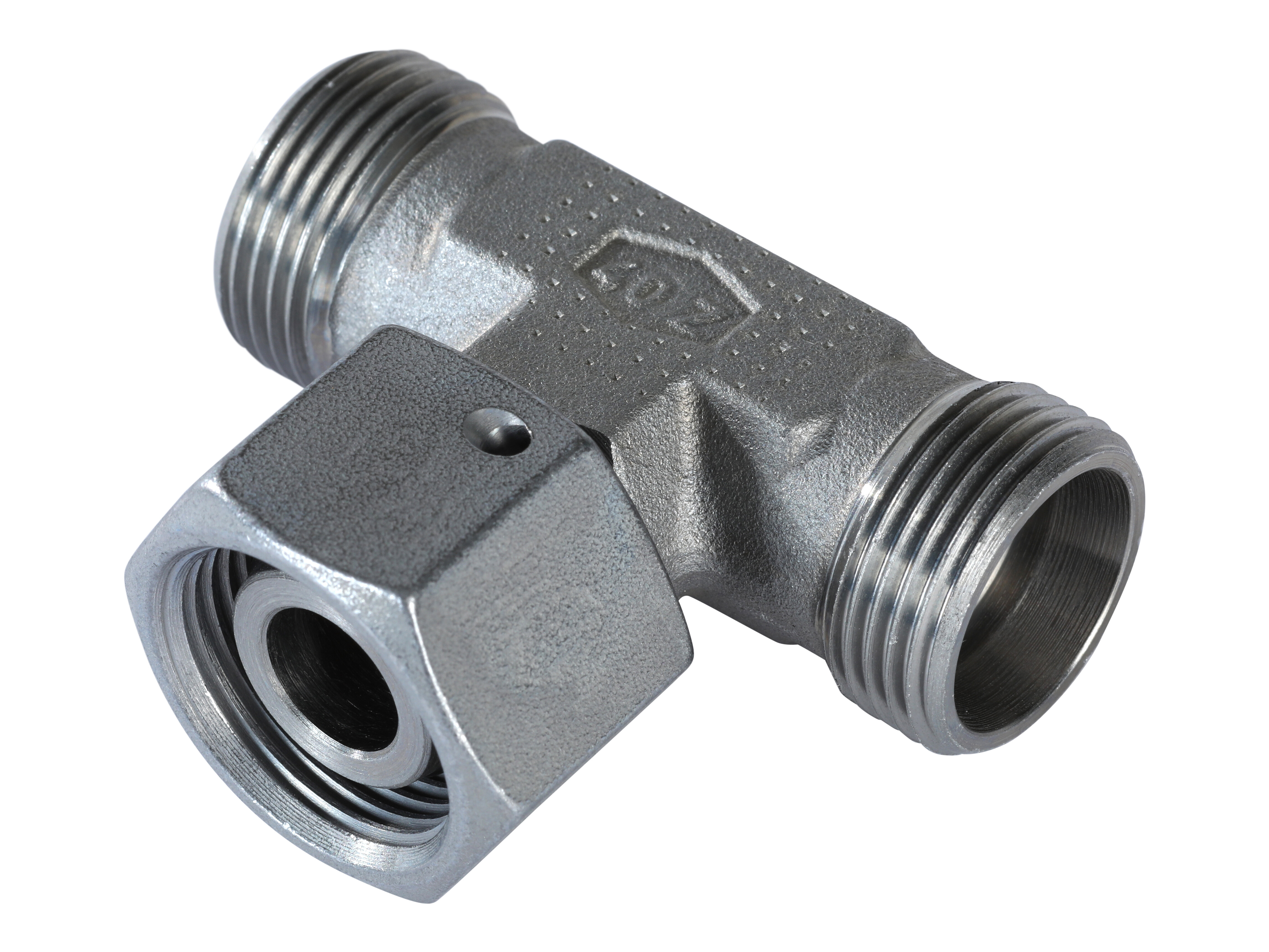

T-fitting adjustable - L-series - Male x Union nut O-ring x Male - VC-LDKOX / XET-L

SELECT VARIANT

Partnumber	Description	Diameter pipe	Thread outer metric	Thread inner metric	Pressure max.
XET06L	Adapter T 06L, Ställbar, O-ringstätad	6 mm	M12x1,5	M12x1,5	500 bar
XET08L	Adapter T 08L, Ställbar, O-ringstätad	8 mm	M14x1,5	M14x1,5	500 bar
XET10L	Adapter T 10L, Ställbar, O-ringstätad	10 mm	M16x1,5	M16x1,5	500 bar
XET12L	Adapter T 12L, Ställbar, O-ringstätad	12 mm	M18x1,5	M18x1,5	400 bar
XET15L	Adapter T 15L, Ställbar, O-ringstätad	15 mm	M22x1,5	M22x1,5	400 bar
XET18L	Adapter T 18L, Ställbar, O-ringstätad	18 mm	M26x1,5	M26x1,5	400 bar
XET22L	Adapter T 22L, Ställbar, O-ringstätad	22 mm	M30x2	M30x2	250 bar
XET28L	Adapter T 28L, Ställbar, O-ringstätad	28 mm	M36x2	M36x2	250 bar
XET35L	Adapter T 35L, Ställbar, O-ringstätad	35 mm	M45x2	M45x2	250 bar
XET42L	Adapter T 42L, Ställbar, O-ringstätad	42 mm	M52x2	M52x2	250 bar

Brand Name

Stauff

Corrosion resistance

1200 hours salt spray DIN EN ISO 9227

Material

Stål

REACH compliant

RoHs compliant

Safety factor

Sealing material

FKM/FPM (Viton®)

Series

Surface treatment

Zink-Nickel

Temperature max.

+200

Temperature min.

-25

T-fitting adjustable - L-series - Male x Union nut O-ring x Male - VC-LDKOX / XET-L
