Snabbkoppling Hane ISO-A 1/2'', Syrafast Viton
Standard quick coupler according to ISO 7241-1 part A.
Connection system: pulling back the sleeve.
Disconnection system: pulling back the sleeve.
Shut off system: ball valve.
Connectability: without pressure.
Disconnection under pressure: not allowed.
Partnumber:
NV12GASM2
Package size:
1 st
Min. order quantity is:
1 st
DN
12.5 mm

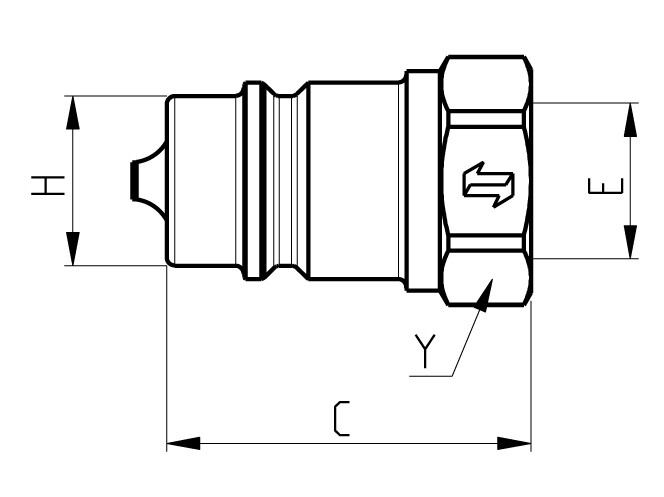

Dimension C
44 mm
Dimension E
G 1/2 BSP
Dimension H
20.5 mm
Dimension Y
27 mm
Flödeshastighet nominell LMin
75 lpm
Gänga inv.
G 1/2 BSP
ISO storlek
12.5
Modell kod
NV 12 GAS M 2V
Märke namn
Faster
Packningsmaterial
FKM/FPM (Viton®)
Standard ISO
ISO 7241-1-A
Storlek
1/2 "
Temperatur max.
+200 °C
Temperatur min.
-20 °C
Tillverkningsmaterial
Rostfritt stål
Tryck max.
300 bar
Typ
Kägla
Package size
1 st
Barcode
332580
Gross weight
0,10 Kg
Net weight
0,10 Kg
Country of origin
ITA
Intrastat code
84812010
Standard quick coupler according to ISO 7241-1 part A.
Connection system: pulling back the sleeve.
Disconnection system: pulling back the sleeve.
Shut off system: ball valve.
Connectability: without pressure.
Disconnection under pressure: not allowed.
