Adapter 90 Vridbar Ø12 mm Inv-G1/4
Vridbar vinkel Ø12mm 1/4''
Artikelnummer:
C01481228
Förpackningsstorlek:
5 st
Minsta beställningskvantitet:
5 st
Angle
90 °
Area of use
Tryckluft, Vacuum
Brand Name
Tierre

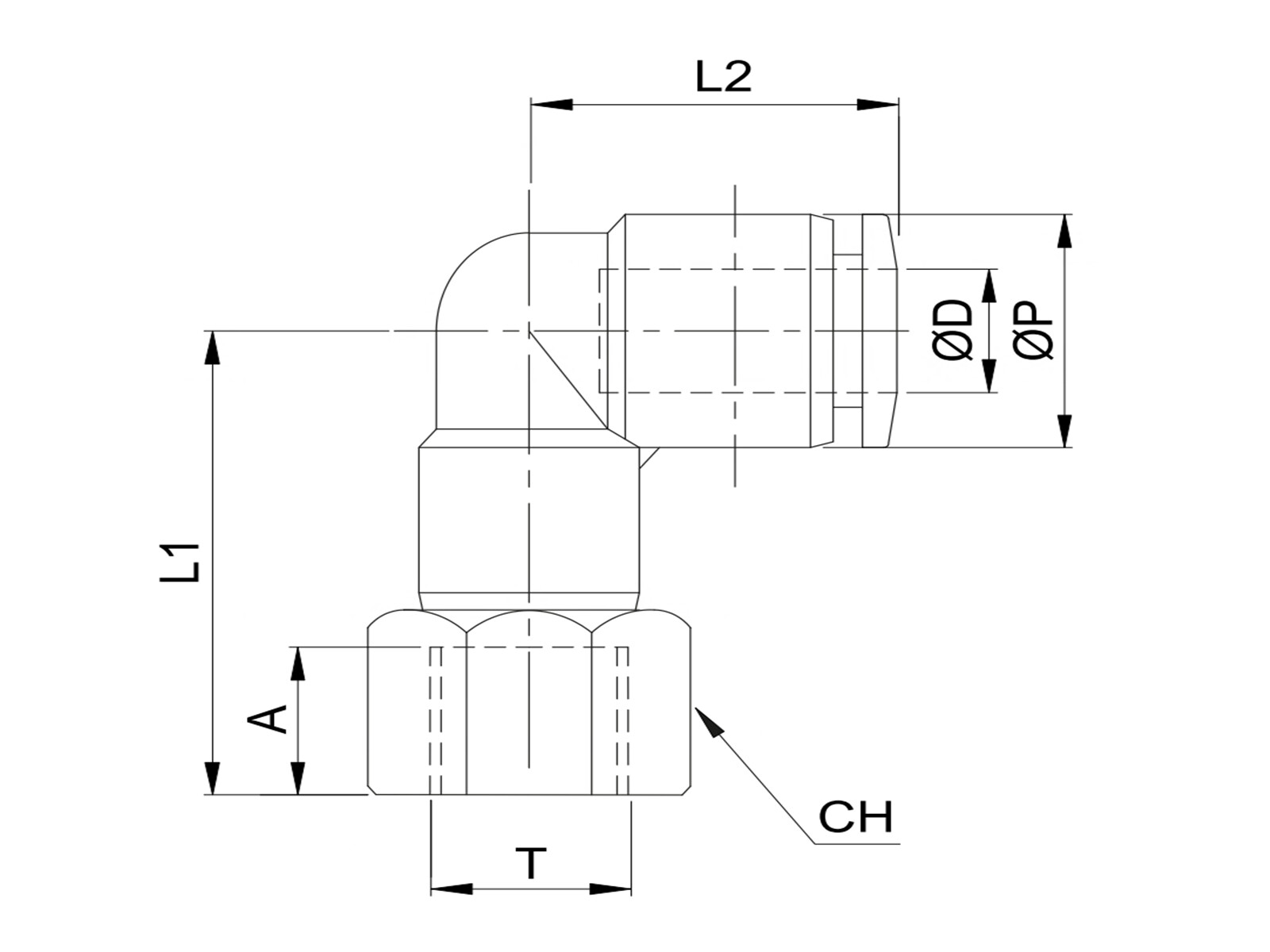

Dimension A
9 mm
Dimension CH
21 mm
Dimension L1
26 mm
Dimension L2
29.6 mm
Dimension T
G 1/4 BSP
Dimension ØD
12 mm
Dimension ØP
21.5 mm
Material
Mässing, NBR, PBT-plast, POM(Acetal), Rostfritt stål, Zink
Model code
WTRLF12G02
Pressure max.
16 bar
Sealing material
NBR
Series
Pneufit C
Temperature max.
+80 °C
Temperature min.
-20 °C
Thread
G 1/4 BSP
Thread
R 1/4 BSPT
Torque tightening
15 Nm
Tube Insertion Depth
22.9 mm
Tube Tollerance
± 0,15 mm
Vacuum max.
-0.9 bar
Förpackningsstorlek
5 st
Streckkod
251962
Bruttovikt
Kg
Nettovikt
Kg
Ursprungsland
swe
Vridbar vinkel Ø12mm 1/4''
