    • Gängfläns 2.1/2'' SAE3000 Inv-G2.1/2'', 4x Bult, oring

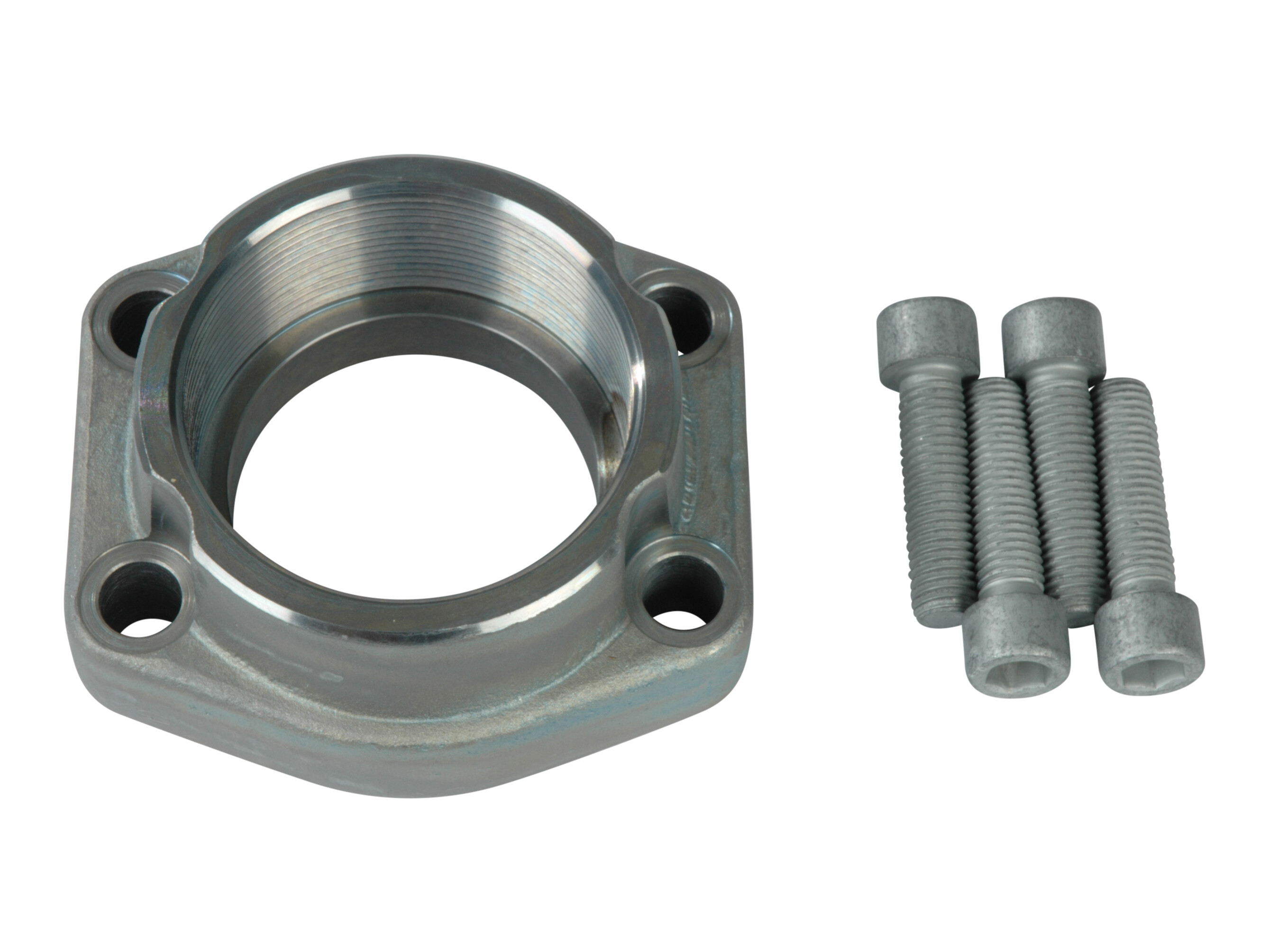

    Gängfläns 2.1/2'' SAE3000 Inv-G2.1/2'', 4x Bult, oring

    Varenummer:
    8310-40-40-KM
    Pakke str.:
    1 set
    Min. bestillingsenhed er:
    1 set
    A
    G 2.1/2 BSP
    Antal bolte
    4
    B
    63 mm
    Bolt dimension
    M12x45 mm
    C
    88,9 mm
    D
    114 mm
    Diameter flange
    84.1 mm
    E
    50,8 mm
    F
    105 mm
    Flange
    2.1/2 "
    Flange SAE/DIN
    3000 PSI
    G
    50 mm
    H
    25 mm
    I
    30 mm
    Korrosions resistens
    480 hours salt spray DIN EN 9227
    L
    13,5 mm
    M
    M12x45
    Materiale
    Stål
    Mærke navn
    Havit
    O-ring
    69,44X3,53 mm
    Overfladebehandling
    Zink-Nickel
    Pakningsmateriale
    NBR
    Shore
    90
    Standard ISO
    ISO 6162-1
    Standard SAE
    SAE J518 Code 61
    Temperatur maks.
    +90 °C
    Temperatur min.
    -40 °C
    Tryk maks.
    175 bar
    Vinkel
    0 °
    Package size
    1 set
    Barcode
    110370
    Gross weight
    1,59 Kg
    Net weight
    1,59 Kg
    Country of origin
    DEU
    Intrastat code
    73079100
