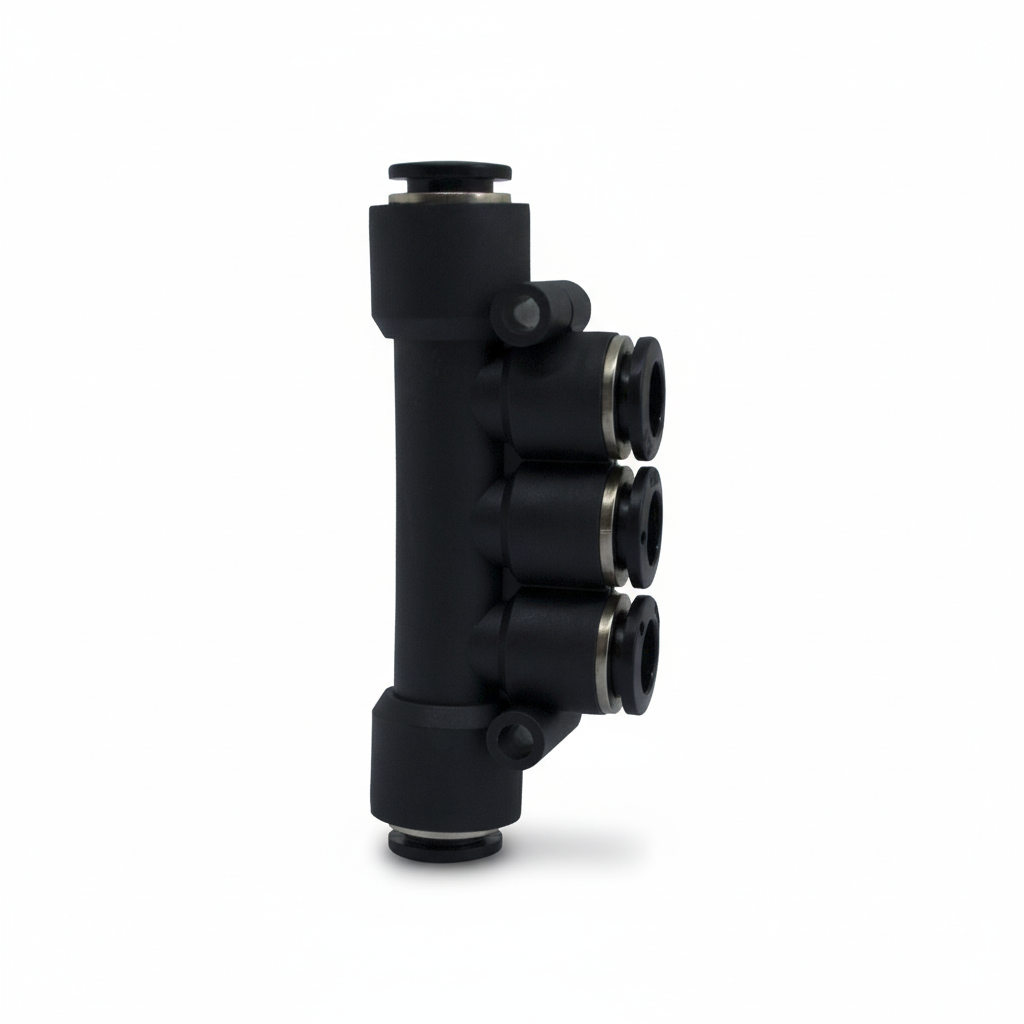

Skarvkoppling Ramp Ø8-6mm

Skarvkoppling Ramp Ø8-6mm

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Pressure max. Vacuum max.
C00D30604 C00D30604 16 bar -0.9 bar
C00D30804 Connector Ramp Ø8-4mm 16 bar
C00D30806 Skarvkoppling Ramp Ø8-6mm 16 bar -0.9 bar
C00D31006 C00D31006 16 bar -0.9 bar
C00D31008 Connector Ramp Ø10-8mm 16 bar
Area of use
Compressed air, Vacuum
Brand Name
Tierre
Material
Brass, PBT-plast, POM(Acetal), Stainless steel, Zinc
Pressure max.
16
Sealing material
NBR
Temperature max.
+80
Temperature min.
-20
