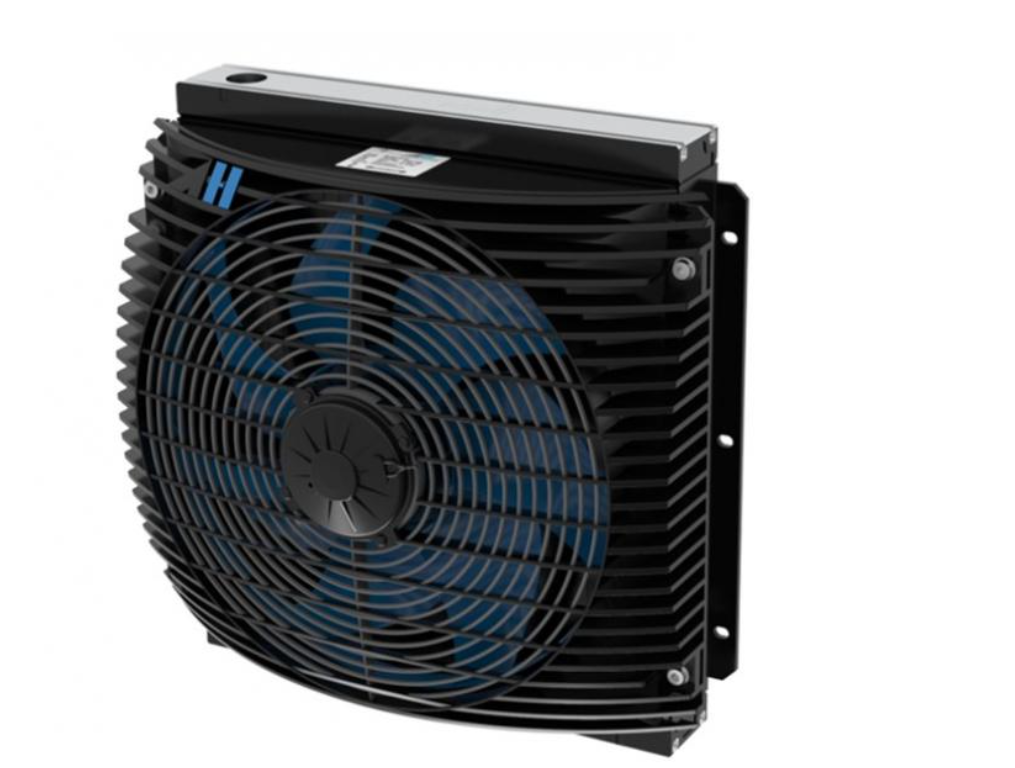

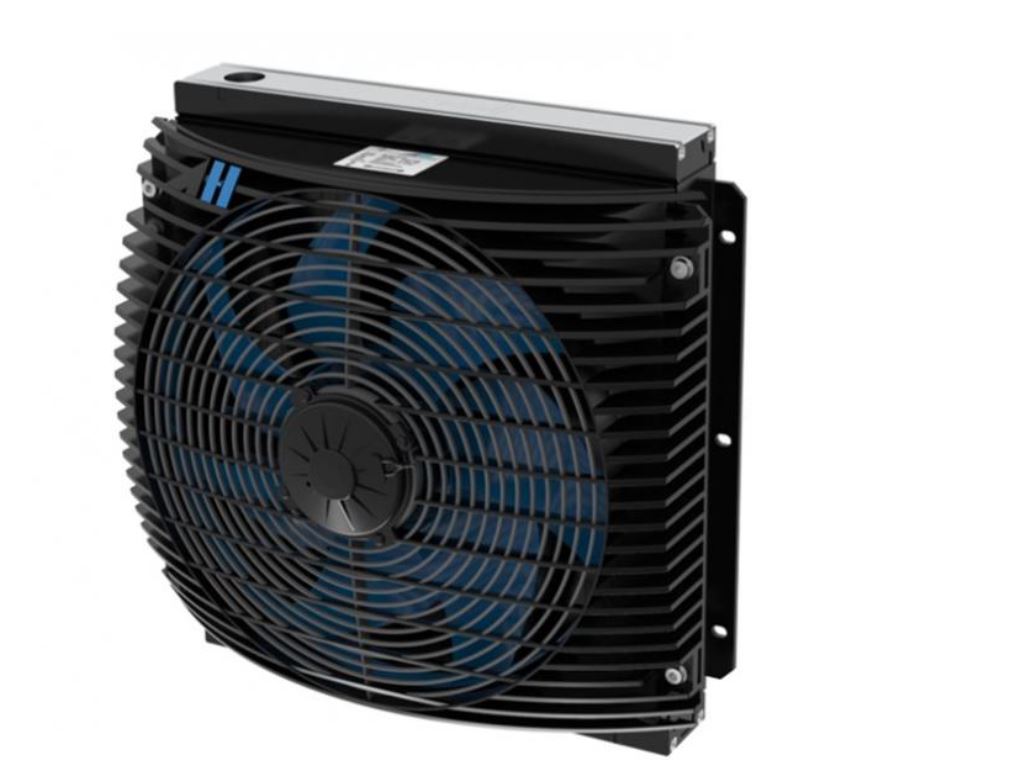

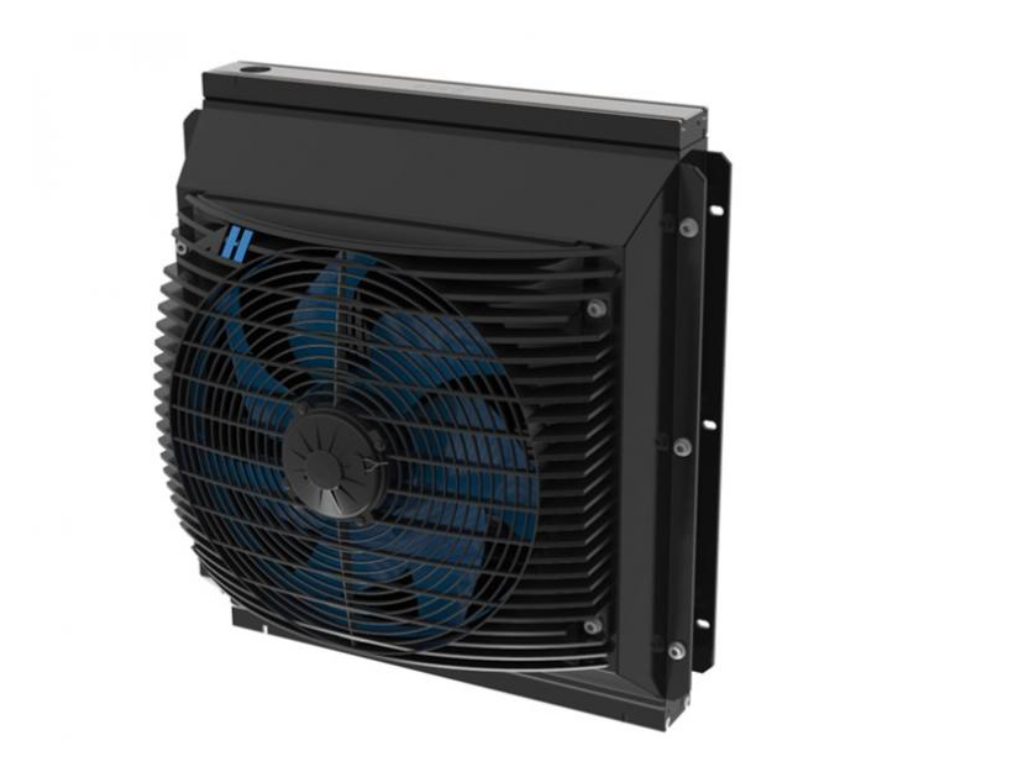

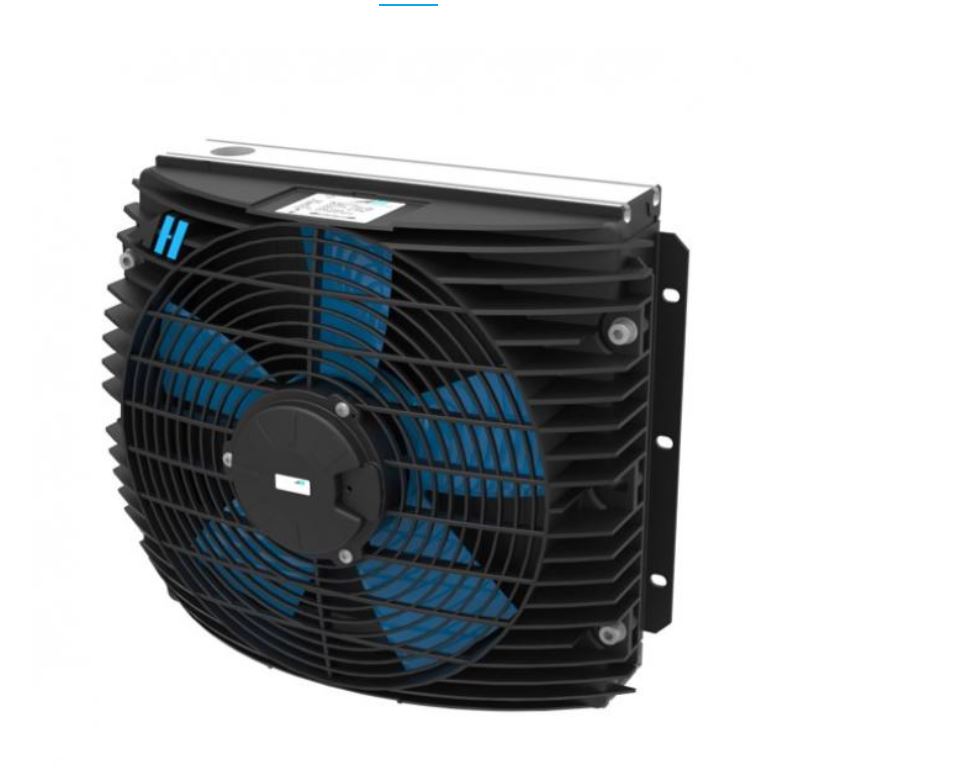

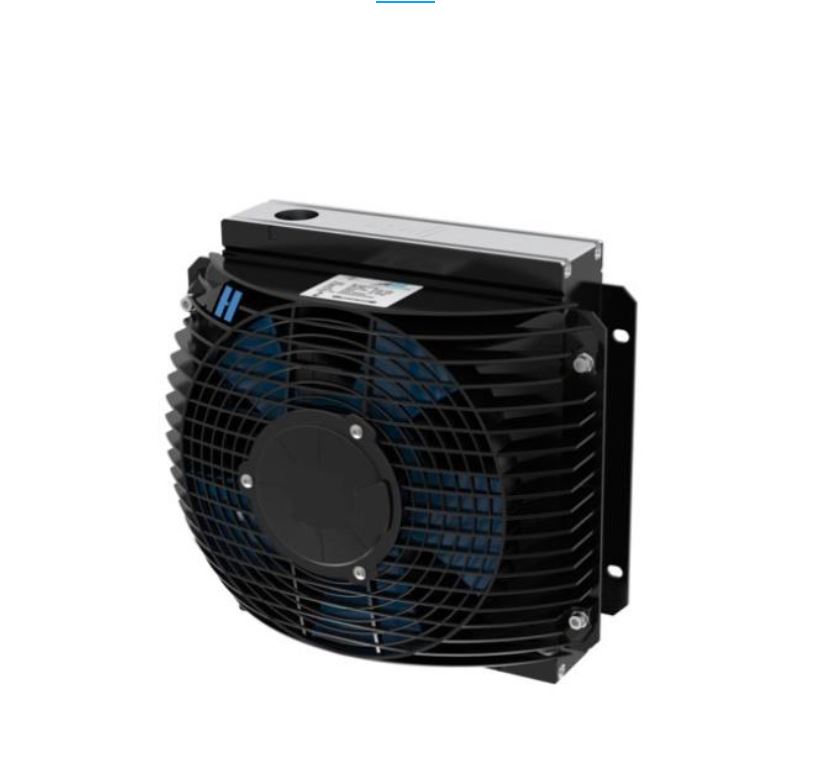

Oil-Air cooler TT w. thermal and press.by-pass-DC - Asa

SELECT VARIANT
Partnumber Description Flow rate nominal LMin Voltage Noise level Cooling efficiency
ASATT07RD03BT Oil-Air cooler TT 07 rail 12VDC w. thermal and press.by-pass 100 lpm 12 V 78 dB-A 0.18 kW/°C
ASATT07RD04BT Oil-Air cooler TT 07 rail 24VDC w. thermal and press.by-pass 100 lpm 24 V 78 dB-A 0.18 kW/°C
ASATT11RD01BT Oil-Air cooler TT 11 rail 12VDC w. thermal and press.by-pass 150 lpm 12 V 77 dB-A 0.28 kW/°C
ASATT11RD02BT Oil-Air cooler TT 11 rail 24VDC w. thermal and press.by-pass 150 lpm 24 V 77 dB-A 0.28 kW/°C
ASATT16RD01BT Oil-Air cooler TT 16 rail 12VDC w. thermal and press.by-pass 200 lpm 12 V 79 dB-A 0.39 kW/°C
ASATT16RD02BT Oil-Air cooler TT 16 rail 24VDC w. thermal and press.by-pass 200 lpm 24 V 79 dB-A 0.39 kW/°C
ASATT25RD01BT Oil-Air cooler TT 25 rail 12VDC w. thermal and press.by-pass 250 lpm 12 V 78 dB-A 0.55 kW/°C
ASATT25RD02BT Oil-Air cooler TT 25 rail 24VDC w. thermal and press.by-pass 250 lpm 24 V 78 dB-A 0.55 kW/°C
Brand Name
ASA

By-pass valve
Yes

Current type
DC

Material
Aluminium

Pressure max.
26

Pressure static max.
26

Temperature ambient max.
+80

Temperature ambient min.
-20

Temperature working fluid max.
+80
