Quick connectors, type QIC10S

Quick connectors, type QIC10S

Vælg variant
VÆLG VARIANT
VÆLG VARIANT
Varenummer Beskrivelse Tryk maks. Flow Nominel

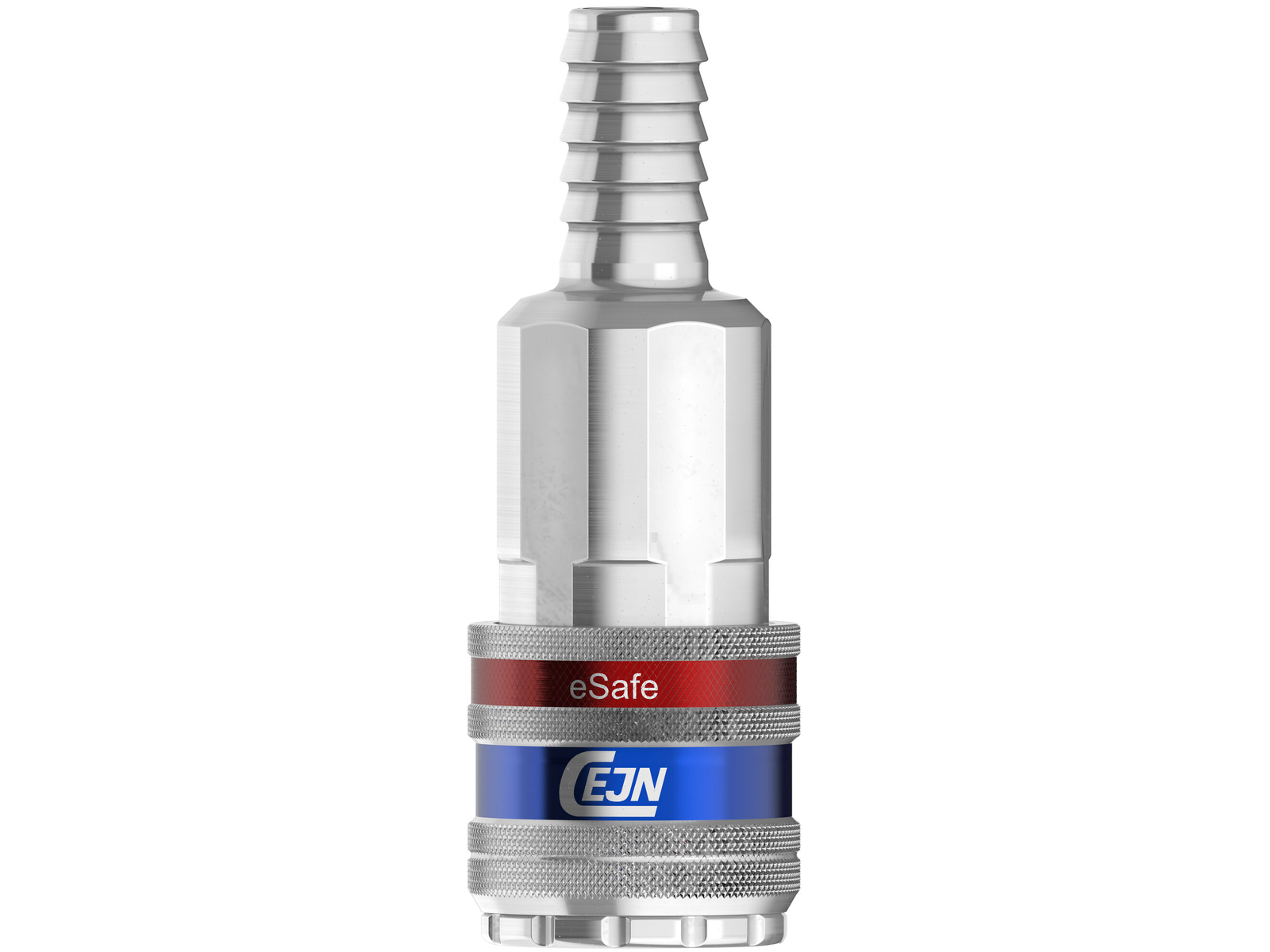

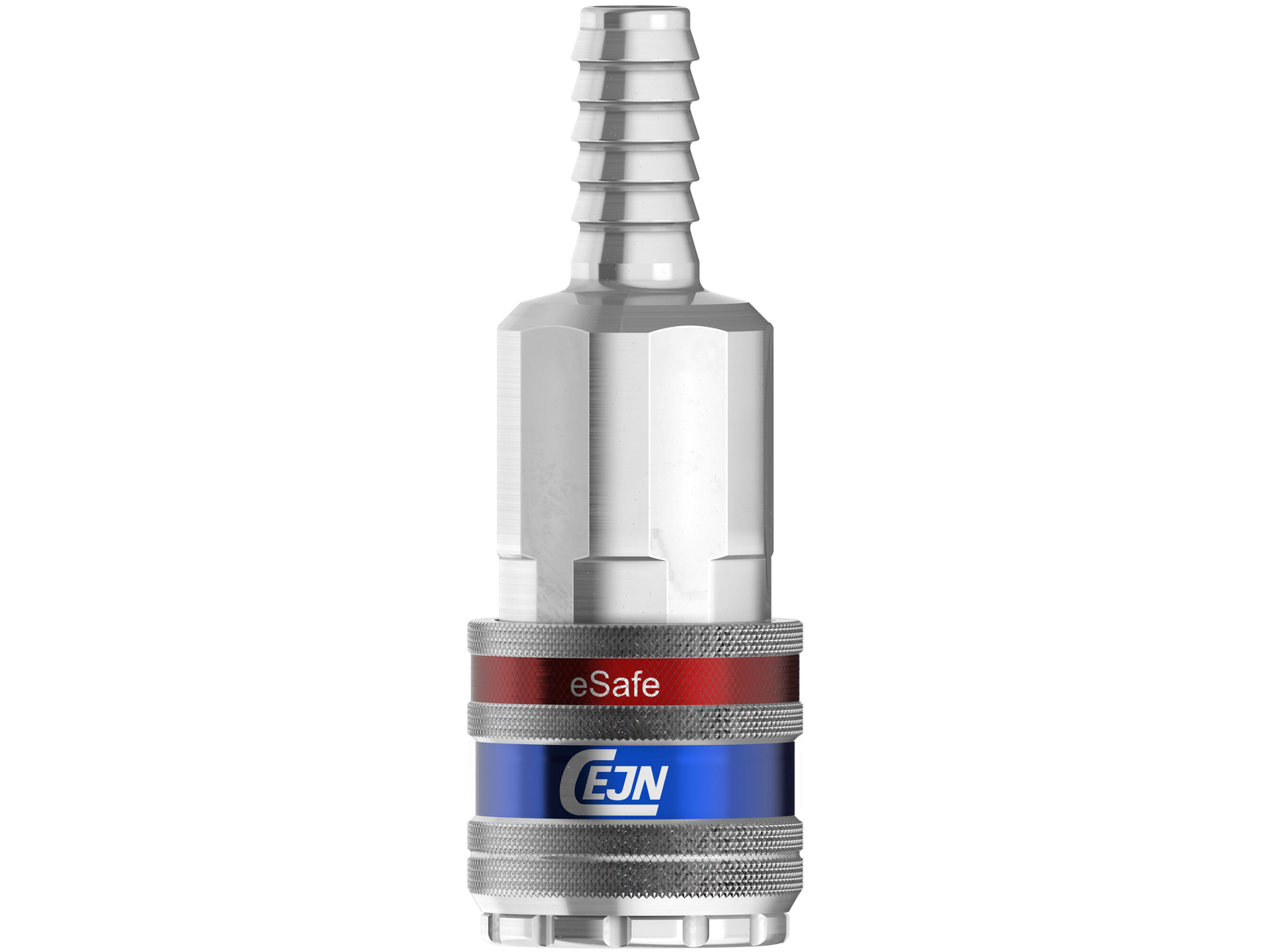

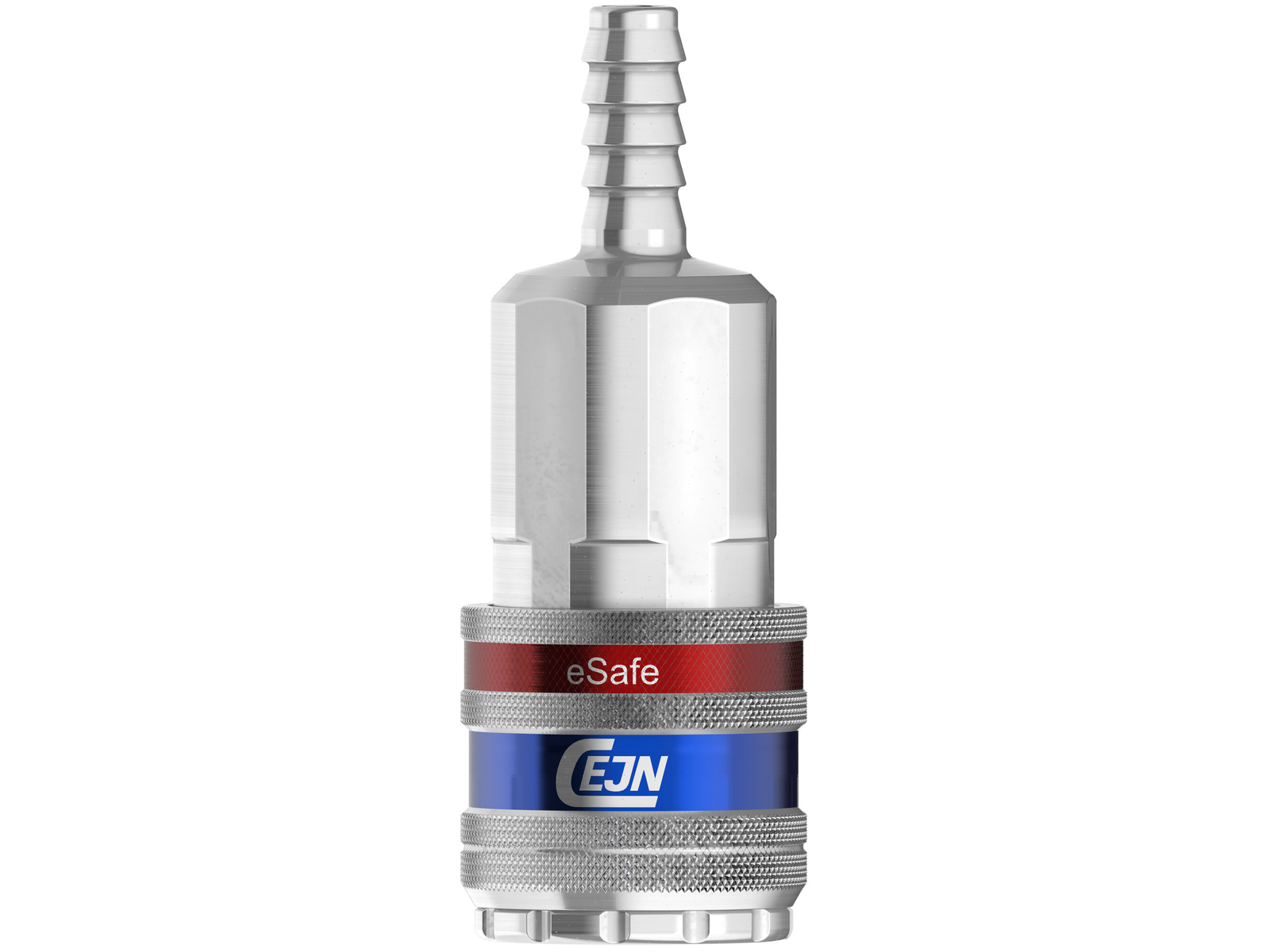

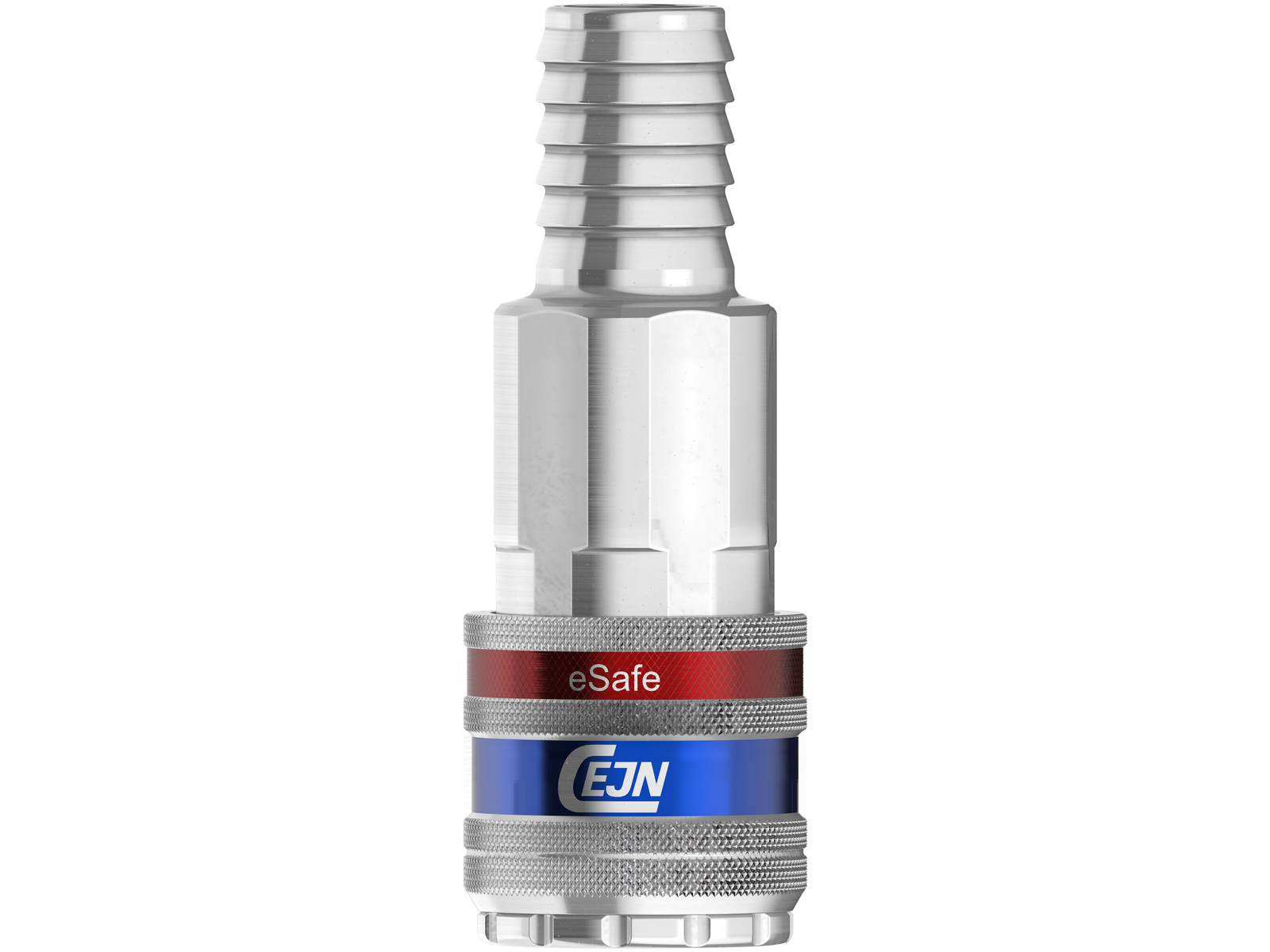

103312002 Coupling 1/4" hose NBR - eSafe Q10 16 bar 1680 lpm
103312003 Coupling 5/16" hose NBR - eSafe Q10 16 bar 1680 lpm
103312004 Coupling 3/8" hose NBR - eSafe Q10 16 bar 1680 lpm
103312005 Coupling 1/2" hose NBR - eSafe Q10 16 bar 1680 lpm
103312058 Coupling Stream-Line 5x8 NBR - eSafe Q10 16 bar 1680 lpm
103312060 Coupling Stream-Line 6.5x10 NBR - eSafe Q10 16 bar 1680 lpm
103312062 Coupling Stream-Line 8 x 12 mm NBR - eSafe Q10 16 bar 1680 lpm
103312063 Coupling Stream-Line 9.5x13.5 mm NBR - eSafe Q10 16 bar 1680 lpm
103312066 Coupling Stream-Line 11x16 mm NBR - eSafe Q10 16 bar 1680 lpm

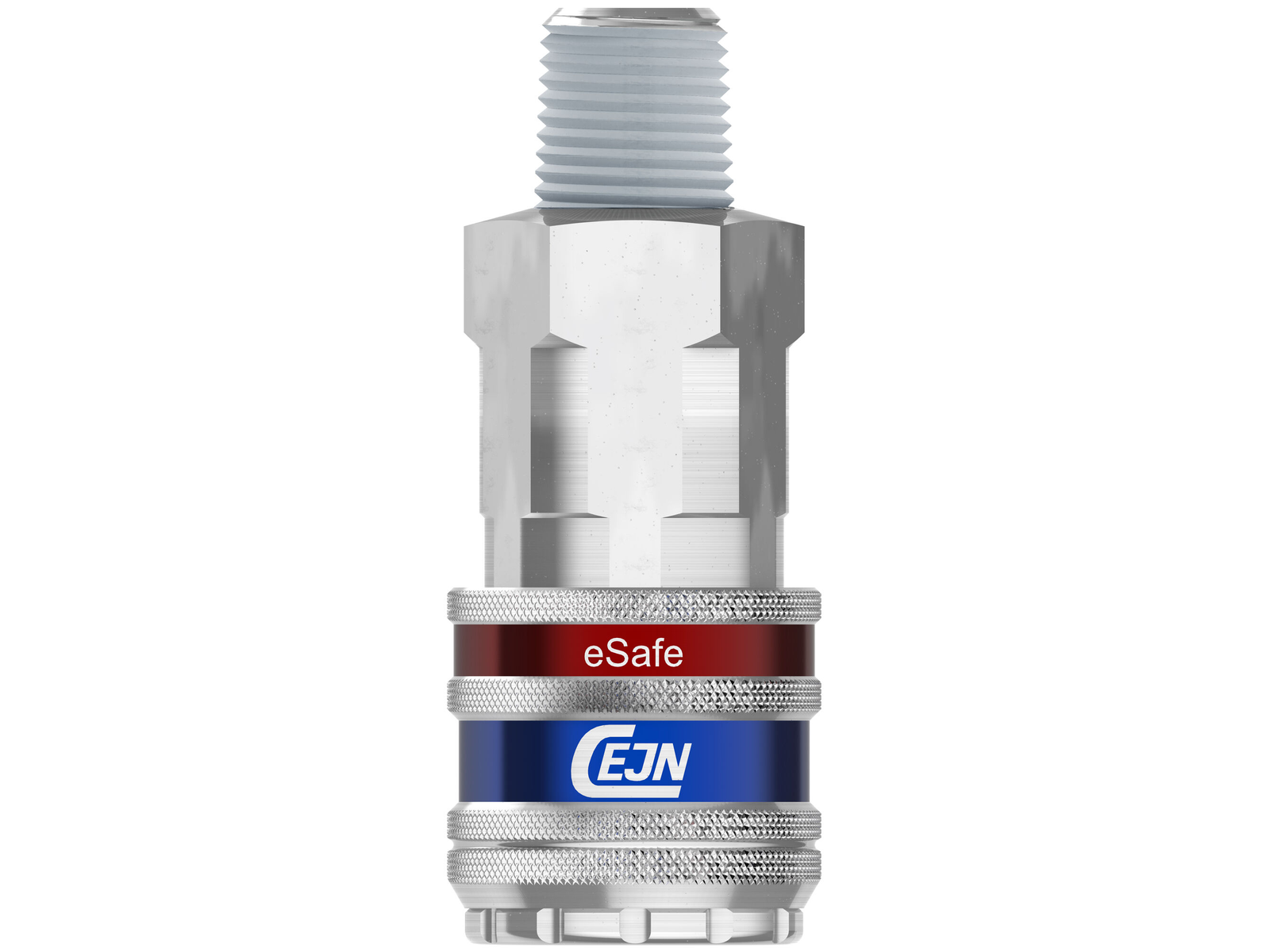

103312152 Coupling R 1/4" male NBR - eSafe Q10 16 bar 1680 lpm
103312154 Coupling R 3/8" male NBR - eSafe Q10 16 bar 1680 lpm
103312155 Coupling R 1/2" male NBR - eSafe Q10 16 bar 1680 lpm

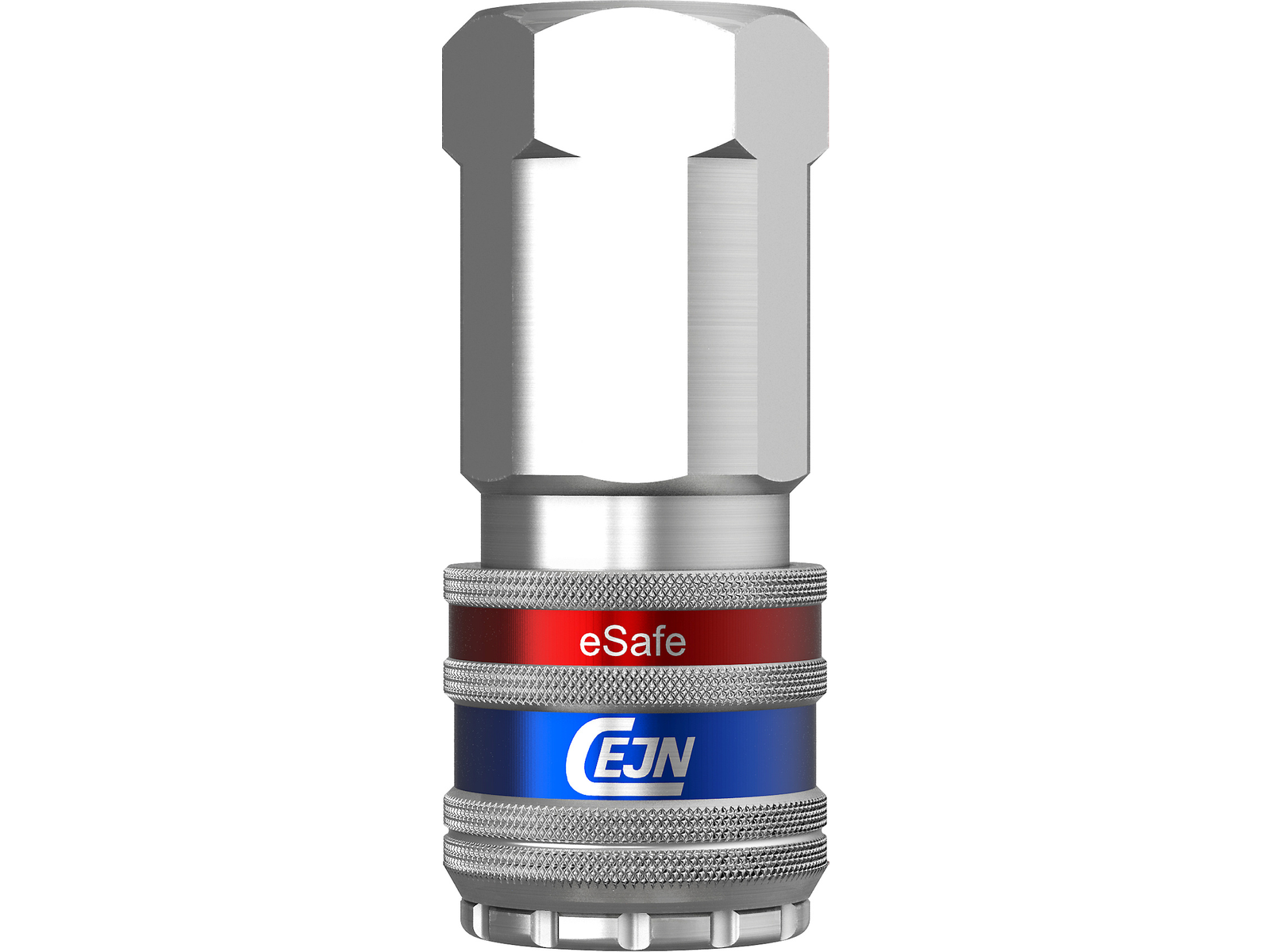

103312202 Coupling G 1/4" fem NBR - eSafe Q10 16 bar 1680 lpm
103312204 Coupling G 3/8" fem NBR - eSafe Q10 16 bar 1680 lpm
103312205 Coupling G 1/2" fem NBR - eSafe Q10 16 bar 1680 lpm
Flow Nominel
1680
Materiale
Steel
Mærke navn
Cejn
Standard ISO
ISO 4414
Temperatur maks.
+100
Temperatur min.
-20
Tryk maks.
16
