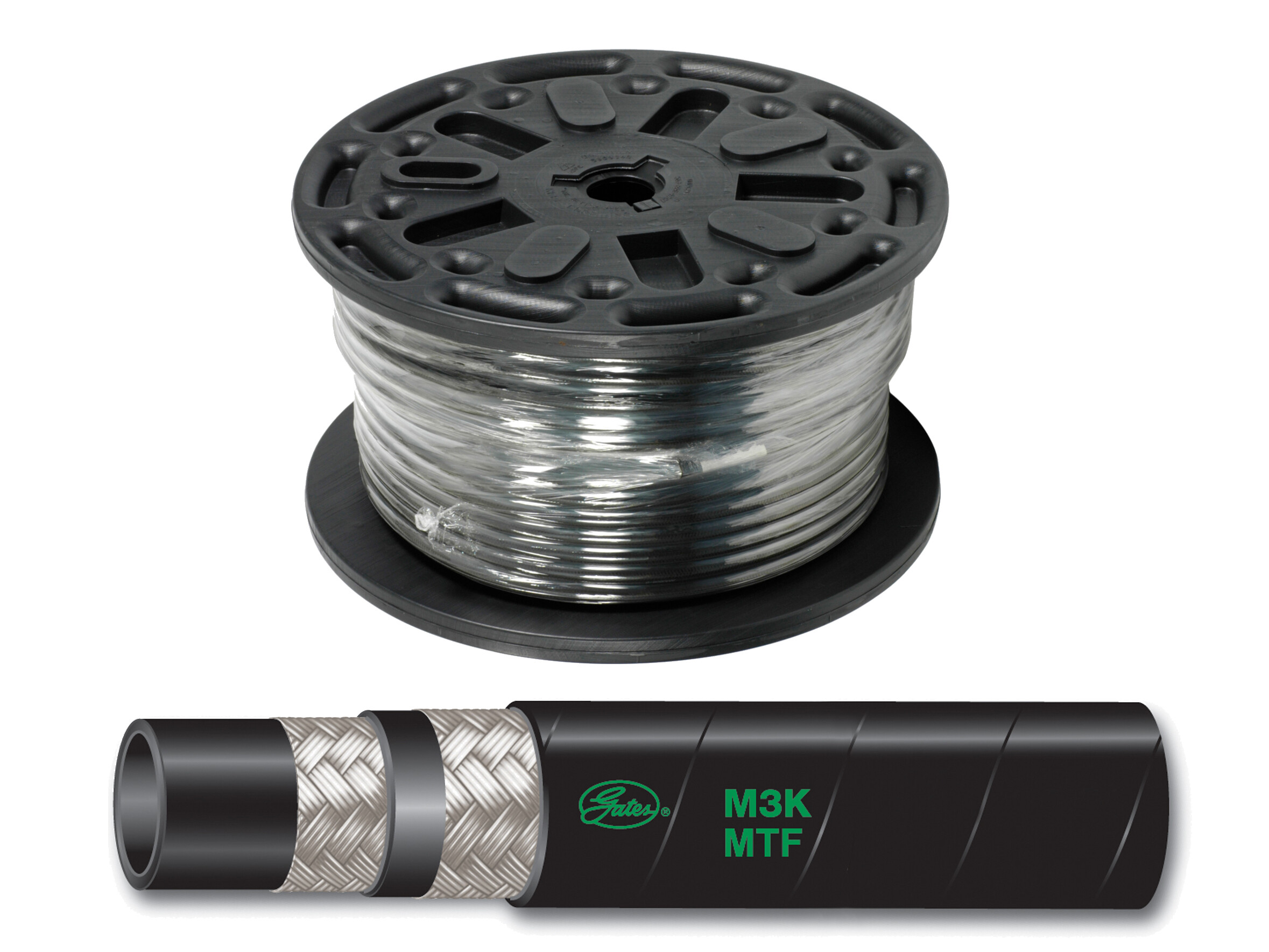

M3K - MegaTuff / XtraTuff hydraulic hoses

SELECT VARIANT

Partnumber	Description	Hose size	Pressure max.	Hose type	Bend radius
M3K-04-MTF-150	1/4" Hydraulic hose M3K-MegaTuff - 225 bar	1/4 "	225 bar	M3K-MTF	40 mm
M3K-06-MTF-125	3/8" Hydraulic hose M3K-MegaTuff - 225 bar	3/8 "	225 bar	M3K-MTF	50 mm
M3K-08-MTF	1/2" Hydraulic hose M3K-MegaTuff - 225 bar	1/2 "	225 bar	M3K-MTF	70 mm

Area of use

Diesel, Grease, Oil, Water

Brand Name

Gates

Cover

MegaTuff®, NBR/PVC

Flameresistant

Yes

Hose type

M3K-MTF

Hoseapprovals

ABS, BV, DNV, LR, MSHA

Pressure burst min.

900

Pressure max.

225

REACH compliant

Yes

Reinforcement

1 layer high tensile steel wire braid

RoHs compliant

Yes

Standard EN

EN 857 1SC, EN 857 2SC

Standard ISO

ISO 11237 R17, ISO 18752 TYPE B

Standard SAE

SAE 100R17

Temperature intermittent max.

+121

Temperature max.

+100

Temperature min.

-40

Tube

NBR (Nitrile)
