    • Straight connector mm metal pipe - BSPP male

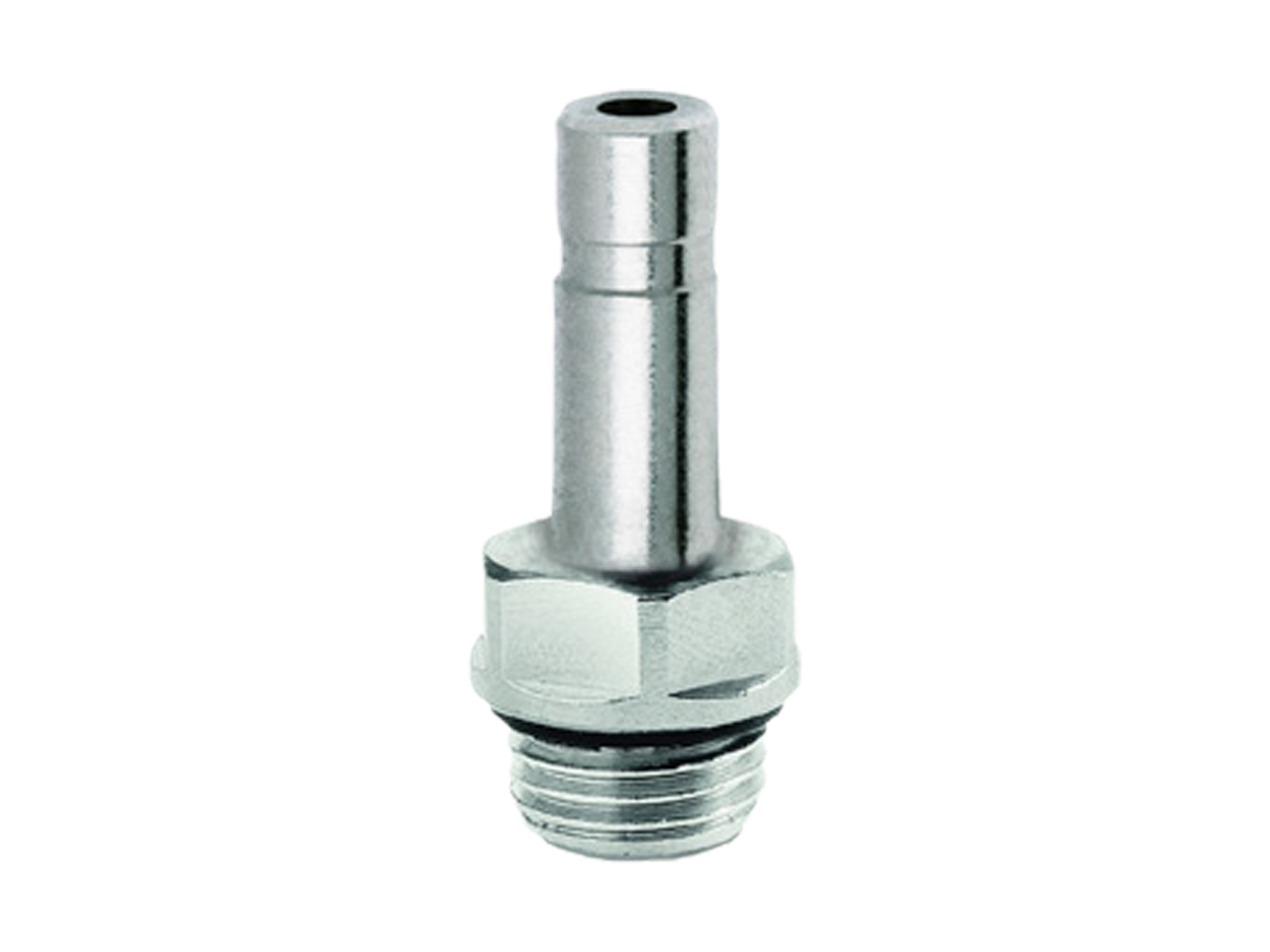

    Straight connector mm metal pipe - BSPP male

    Välj variant
    VÄLJ VARIANT
    VÄLJ VARIANT
    Artikelnummer Beskrivning Gänga Tryck max.
    102150405 Straight stem adaptor Metric tube to M5 20 bar
    102150418 Skaftadapter Rak Ø4 mm 1/8 G 1/8 BSP 20 bar
    102150428 Skaftadapter RakØ4 mm 1/4 G 1/4 BSP 20 bar
    102150518 Skaftadapter Rak Ø5 mm 1/8 G 1/8 BSP 20 bar
    102150528 Skaftadapter Rak Ø5 mm 1/4 G 1/4 BSP 20 bar
    102150618 Skaftadapter Rak Ø6 mm 1/8 G 1/8 BSP 20 bar
    102150628 Skaftadapter Rak Ø6 mm 1/4 G 1/4 BSP 20 bar
    102150818 Skaftadapter Rak Ø8 mm 1/8 G 1/8 BSP 20 bar
    102150828 Skaftadapter Rak Ø8 mm 1/4 G 1/4 BSP 20 bar
    102150838 Skaftadapter Rak Ø8 mm 3/8 G 3/8 BSP 20 bar
    102151018 Stem adapter BSPP 1/8 nickel-plated - metric tube 10mm G 1/8 BSP 20 bar
    102151028 Skaftadapter Rak Ø10 mm 1/4 G 1/4 BSP 20 bar
    102151038 Skaftadapter Rak Ø10 mm 3/8 G 3/8 BSP 20 bar
    102151048 Skaftadapter Rak Ø10 mm 1/2 G 1/2 BSP 20 bar
    102151228 Stem adapter BSPP 1/4 nickel-plated - metric tube 12mm G 1/4 BSP 20 bar
    102151238 Skaftadapter Rak Ø12 mm 3/8 G 3/8 BSP 20 bar
    102151248 Skaftadapter Rak Ø12 mm 1/2 G 1/2 BSP 20 bar
    102151438 Skaftadapter Rak Ø14 mm 3/8 G 3/8 BSP 20 bar
    102151448 Skaftadapter Rak Ø14 mm 1/2 G 1/2 BSP 20 bar
    Packningsmaterial
    NBR, POM (Acetal)
    REACH compliant
    Yes
    RoHs compliant
    Yes
    Standard
    Silicone Free
    Temperatur max.
    +80
    Temperatur min.
    -20
    Tillverkningsmaterial
    Brass, Stainless steel
    Tryck max.
    20
    Vakuum max.
    -0.9
    Vinkel
    0
    Ytskiktbehandling
    Nickel-plated
