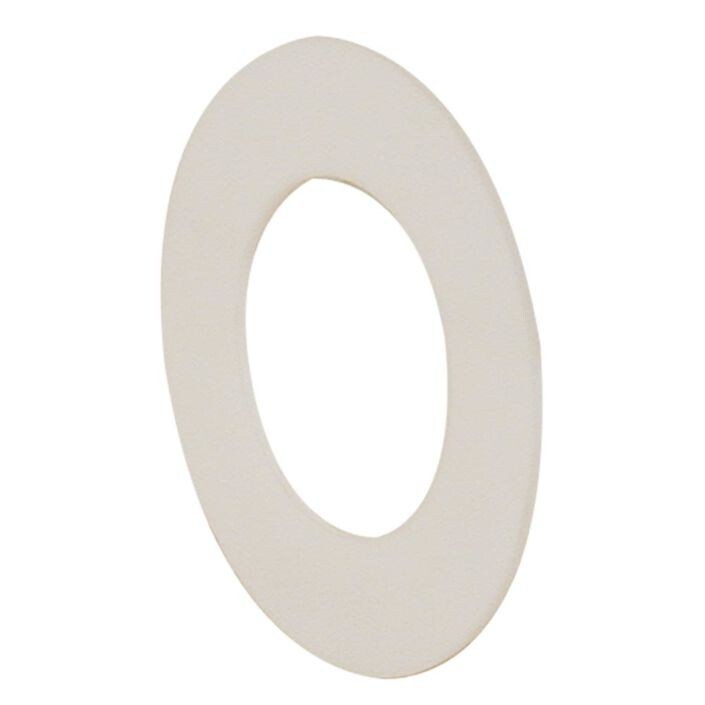

Flange seal in PTFE to DIN EN 1514-1

Flange seal in PTFE to DIN EN 1514-1

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Pressure max.
FXP013DINRF Flange sealing, DN15, for PN16/40, PTFE gasket, according to DIN EN 1514-1, 2mm 16 bar
FXP019DINRF Flange sealing, DN20, for PN16/40, PTFE gasket, according to DIN EN 1514-1, 2mm 16 bar
FXP025DINRF Flange sealing, DN25, for PN16/40, PTFE gasket, according to DIN EN 1514-1, 2mm 16 bar
FXP032DINRF Flange sealing, DN32, for PN16/40, PTFE gasket, according to DIN EN 1514-1, 2mm 16 bar
FXP038DINRF Flange sealing, DN40, for PN16/40, PTFE gasket, according to DIN EN 1514-1, 2mm 16 bar
FXP050DINRF Flange sealing, DN50, for PN16/40, PTFE gasket, according to DIN EN 1514-1, 2mm 16 bar
FXP063DINRF Flange sealing, DN65, for PN16/40, PTFE gasket, according to DIN EN 1514-1, 2mm 16 bar
FXP075DINRF Flange sealing, DN80, for PN16/40, PTFE gasket, according to DIN EN 1514-1, 2mm 16 bar
FXP100DINRF Flange sealing, DN100, for PN16, PTFE gasket, according to DIN EN 1514-1, 2mm 16 bar
FXP125DINRF Flange sealing, DN125, for PN16, PTFE gasket, according to DIN EN 1514-1, 2mm 16 bar
FXP150DINRF Flange sealing, DN150, for PN16, PTFE gasket, according to DIN EN 1514-1, 2mm 16 bar
FXP200DINRF Flange sealing, DN125, for PN16, PTFE gasket, according to DIN EN 1514-1, 2mm 16 bar
Brand Name
Hydraspecma
Material
PTFE (Teflon®)
Material thickness
2
Model code
MMC-ABC
Pressure max.
16
Standard DIN
DIN EN 1514-1
Temperature max.
+120
Temperature min.
-20
