Skarvkoppling 90 Ø16 mm

Skarvkoppling 90 Ø4 mm

Skarvkoppling 90 Ø6 mm

Skarvkoppling 90 Ø8 mm

Skarvkoppling 90 Ø10 mm

Skarvkoppling 90 Ø12 mm

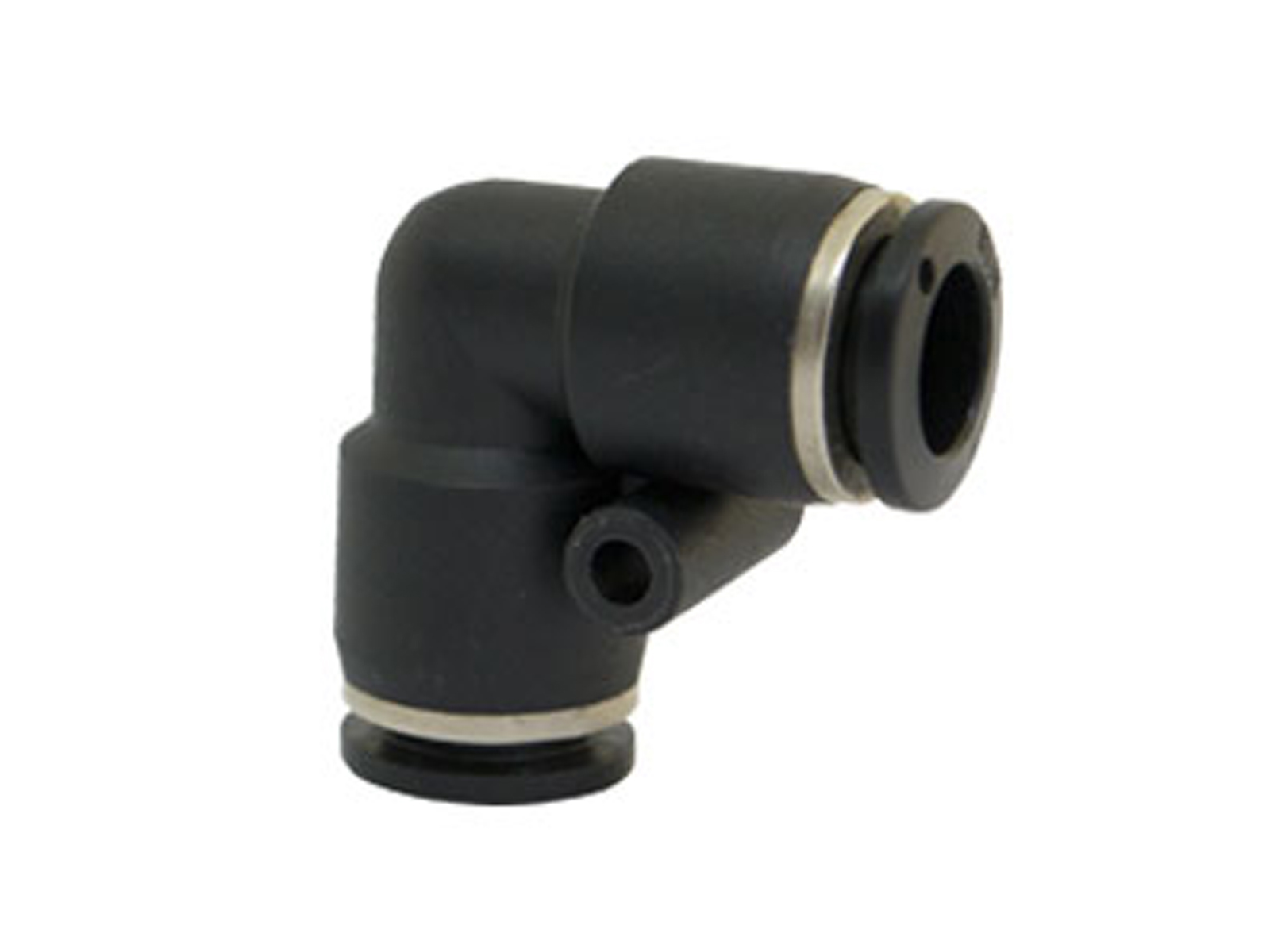

Union elbow 14mm

Skarvkoppling 90 Ø16 mm

SELECT VARIANT

Partnumber	Description	Pressure max.	Vacuum max.
C00400400	Skarvkoppling 90 Ø4 mm	16 bar	-0.9 bar
C00400600	Skarvkoppling 90 Ø6 mm	16 bar	-0.9 bar
C00400800	Skarvkoppling 90 Ø8 mm	16 bar	-0.9 bar
C00401000	Skarvkoppling 90 Ø10 mm	16 bar	-0.9 bar
C00401200	Skarvkoppling 90 Ø12 mm	16 bar	-0.9 bar
C00401400	Union elbow 14mm	16 bar
C00401600	Skarvkoppling 90 Ø16 mm	16 bar	-0.9 bar

Angle

Area of use

Compressed air, Vacuum

Brand Name

Tierre

Material

Brass, NBR, PBT-plast, POM(Acetal), Stainless steel, Zinc

Pressure max.

Sealing material

NBR

Temperature max.

+80

Temperature min.

-20
